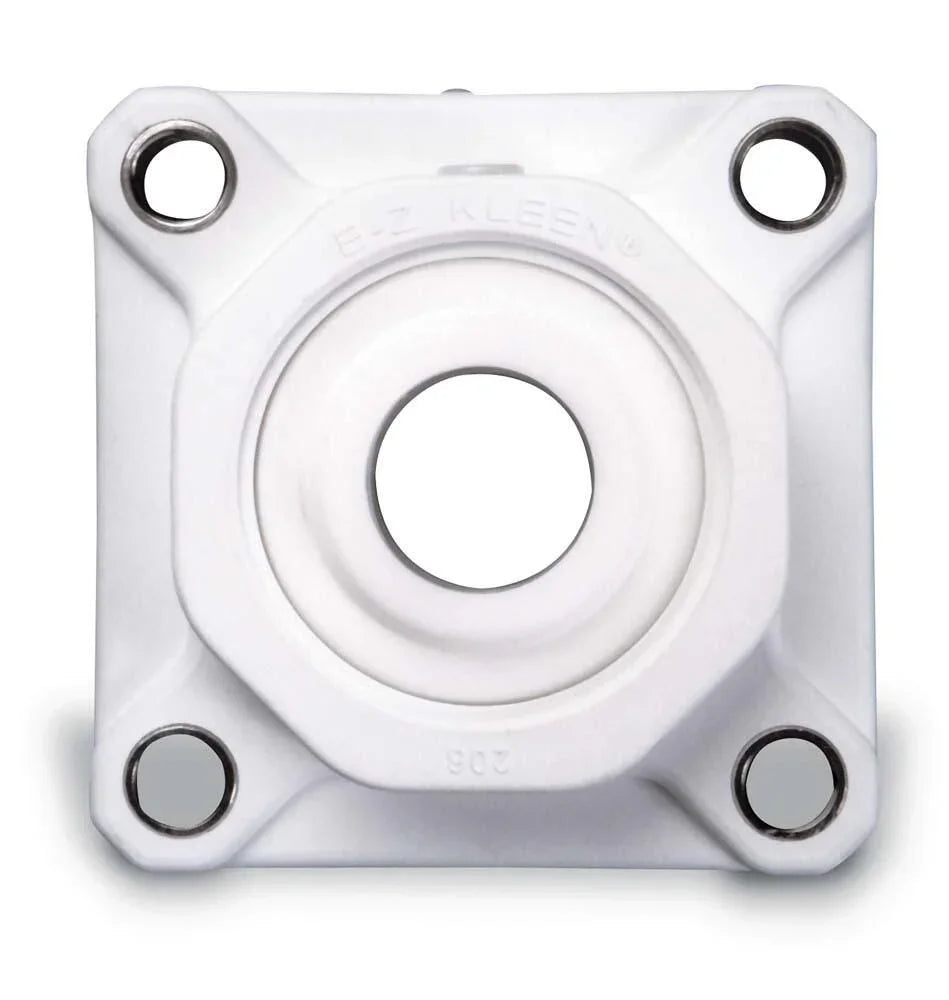

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034763 - Dodge - F4B-PSEZ-40M-P
F4B-PSEZ-40M-P
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.0100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/f4b_psez_bolt_body_asmtab.prj&varset={SERIES=208},{SS=40},{PN=034763},{DESCRIPTION=F4B-PSEZ-40M-P},{WEIGHT=0.56},{A=38.1},{B=130.0},{C=42.2},{D=101.5},{F=M12},{H=16.9},{J=4.6},{L=50.8}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 40.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
