034755 - Dodge - TB-PSEZ-20M-P
Regular price
$104.27 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

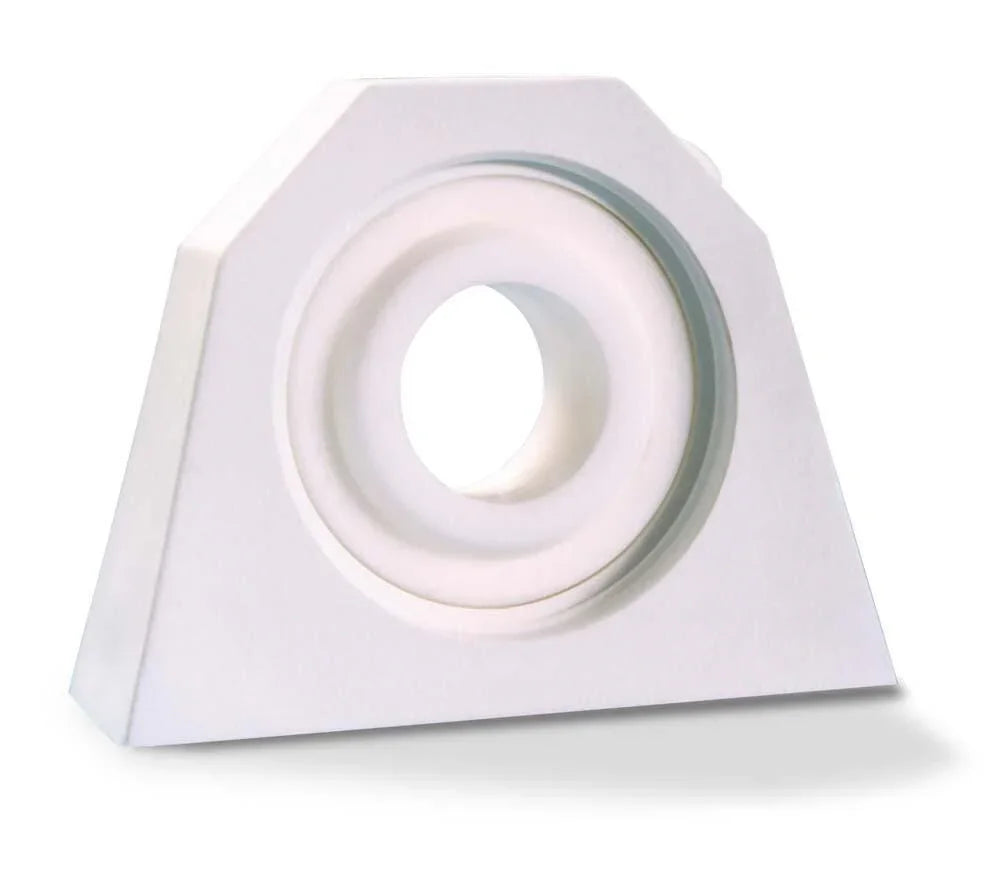

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034755 - Dodge - TB-PSEZ-20M-P
TB-PSEZ-20M-P
Technical Specifications
| Base to Center Height | 1.3100 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Journal |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/p2b_psez_tap_body_asmtab.prj&varset={SERIES=204},{SS=20},{PN=034755},{DESCRIPTION=TB-PSEZ-20M-P},{WEIGHT=0.24},{A=25.4},{B=82.6},{C=38.1},{D=50.8},{F=M10*1.5},{J=67.6},{L=33.3},{M=33.3},{N=10.2}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 20.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Take-Up Frame Size | LD-10,TS-100 |
