034741 - Dodge - FB-PSEZ-107-P
Regular price
$165.78 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

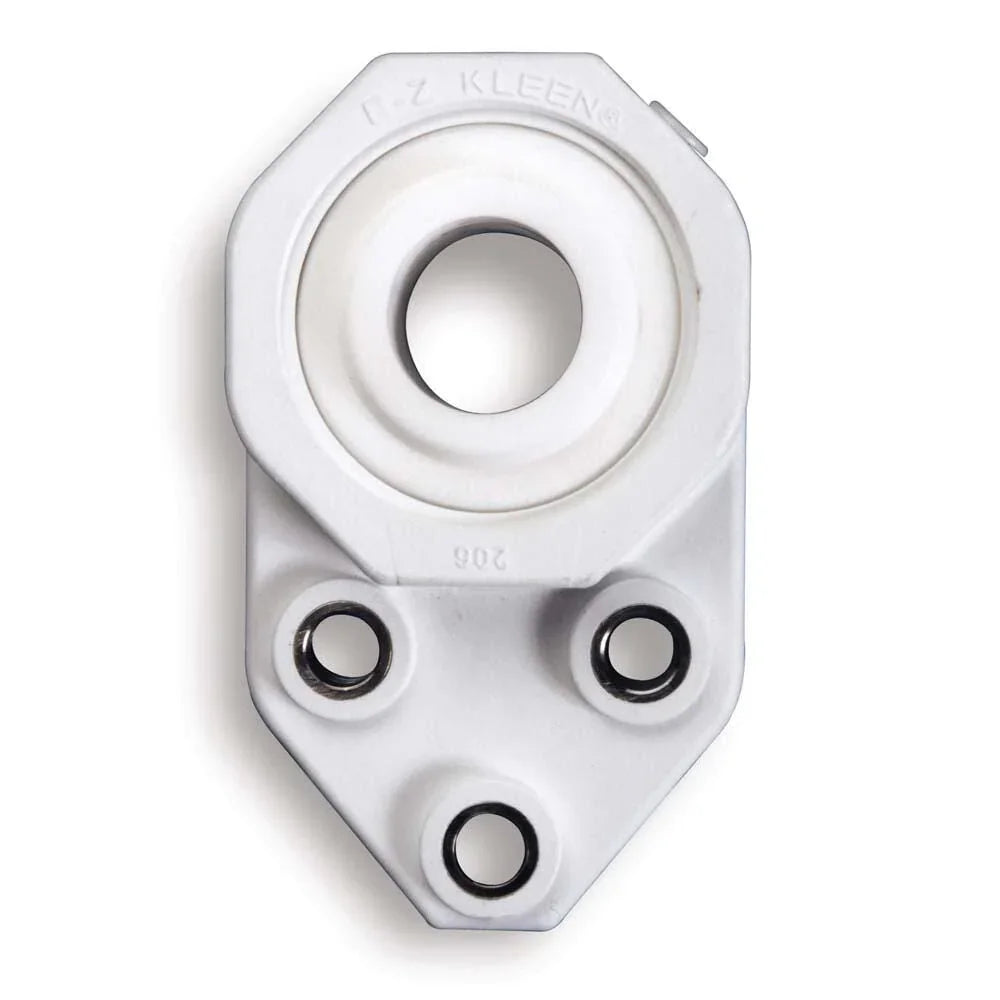

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034741 - Dodge - FB-PSEZ-107-P
FB-PSEZ-107-P
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.7500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/fb_psez_pcr_bodi_asmtab.prj&varset={SERIES=207},{SS=1-7/16},{PN=034741},{DESCRIPTION=FB-PSEZ-107-P},{WEIGHT=1.200},{A=1-5/16},{B=6-7/64},{C=1-27/64},{D=2},{E=2-3/8},{F=1/2},{G=1-1/4},{H=39/64},{I=4-15/64},{J=3-11/16},{K=1-9/32},{L=2}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Flanged Bracket |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
