034737 - Dodge - FB-PSEZ-100-P
Regular price
$118.86 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

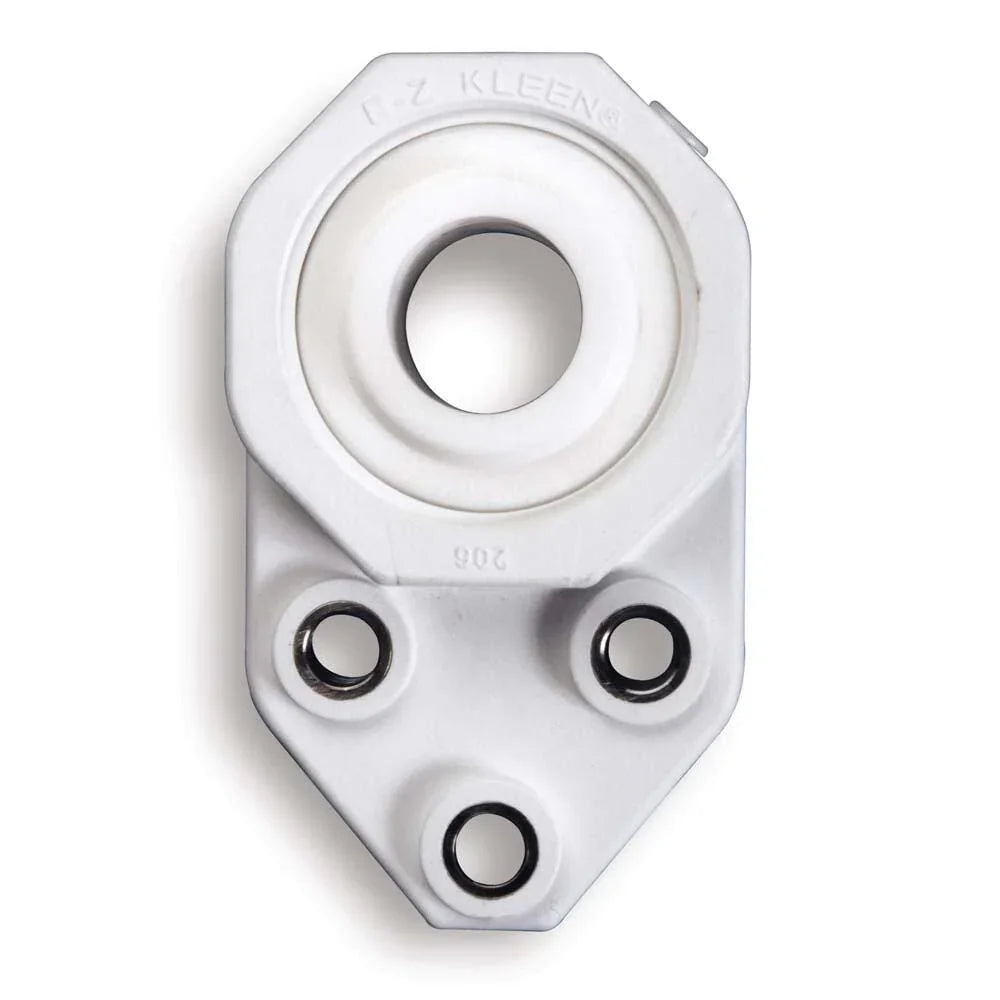

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034737 - Dodge - FB-PSEZ-100-P
FB-PSEZ-100-P
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 1.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 1.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.4400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/fb_psez_pcr_bodi_asmtab.prj&varset={SERIES=205},{SS=1},{PN=034737},{DESCRIPTION=FB-PSEZ-100-P},{WEIGHT=0.570},{A=1-1/16},{B=4-29/32},{C=1-1/4},{D=1-5/8},{E=1-13/16},{F=3/8},{G=1-1/8},{H=17/32},{I=3-17/32},{J=2-45/64},{K=1-9/64},{L=1-7/16}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Flanged Bracket |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
