034735 - Dodge - F2B-PSEZ-115-P
Regular price
$240.86 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

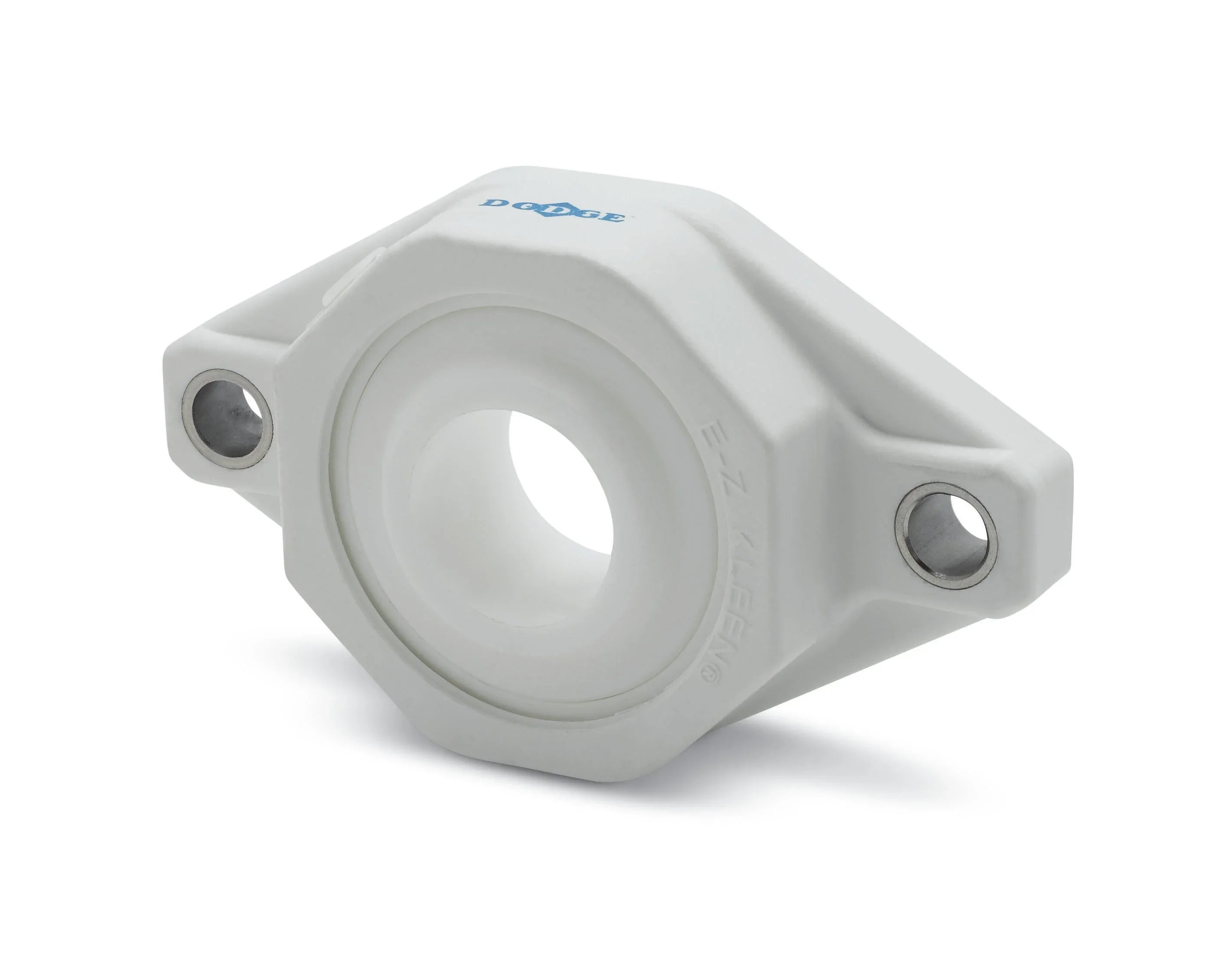

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034735 - Dodge - F2B-PSEZ-115-P
F2B-PSEZ-115-P
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.1900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.1900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.2500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/p2b_psez_bolt_bodi_asmtab.prj&varset={SERIES=210},{SS=1-15/16},{PN=034735},{DESCRIPTION=F2B-PSEZ-115-P},{WEIGHT=1.14},{A=1-5/8},{B=7-15/32},{C=1-53/64},{D=6-3/16},{F=5/8},{H=3/4},{J=1/4},{L=2-9/16},{M=4-1/2},{N=2-1/4}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Flange |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
