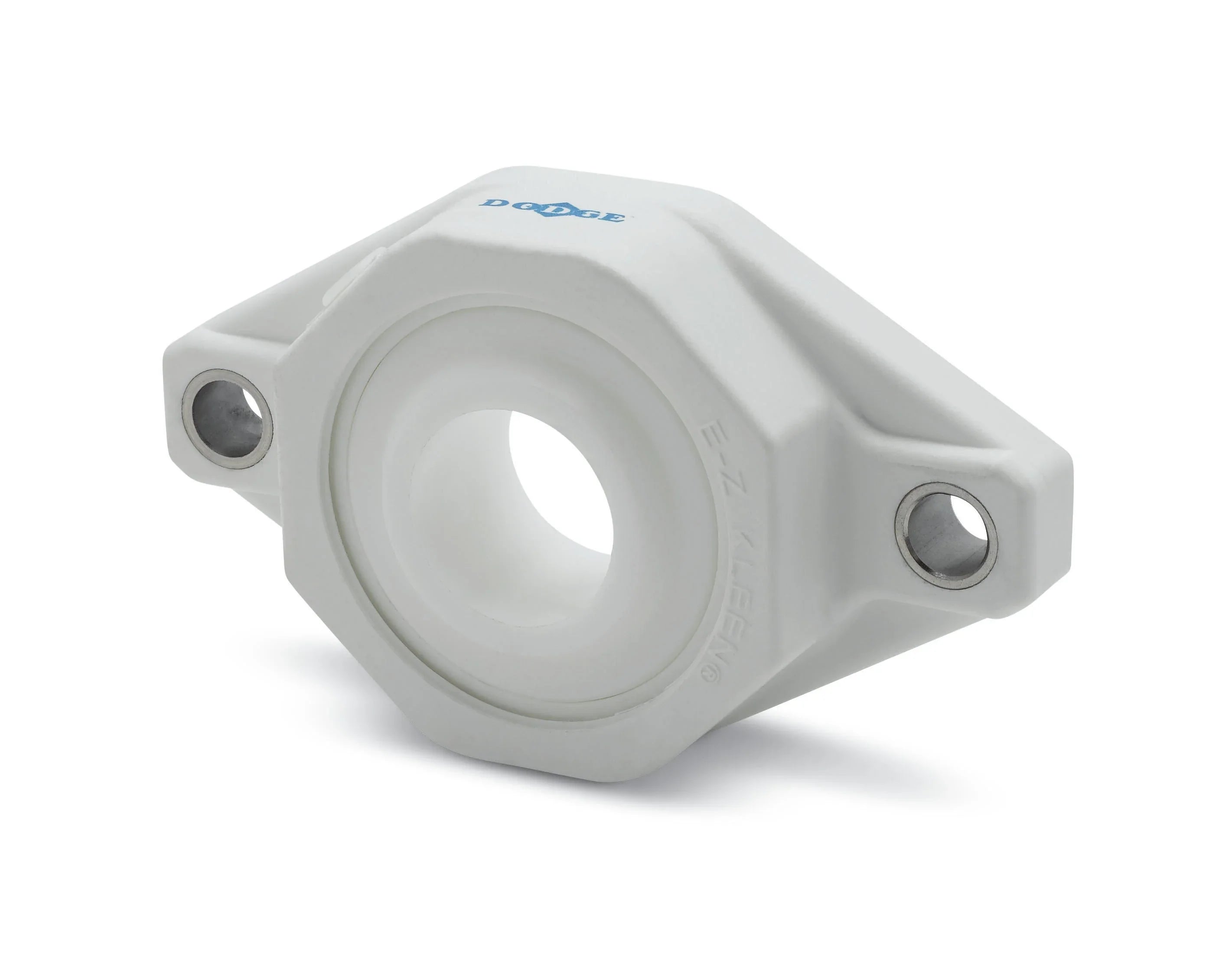

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034726 - Dodge - F2B-PSEZ-012-P
F2B-PSEZ-012-P
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.5300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.5300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/p2b_psez_bolt_bodi_asmtab.prj&varset={SERIES=204},{SS=3/4},{PN=034726},{DESCRIPTION=F2B-PSEZ-012-P},{WEIGHT=0.42},{A=1},{B=4-29/64},{C=1-3/16},{D=3-17/32},{F=3/8},{H=33/64},{J=5/64},{L=1-5/16},{M=2-11/32},{N=1-3/16}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Two-Bolt Flange |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
