034720 - Dodge - F4B-PSEZ-104-P
Regular price
$165.78 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

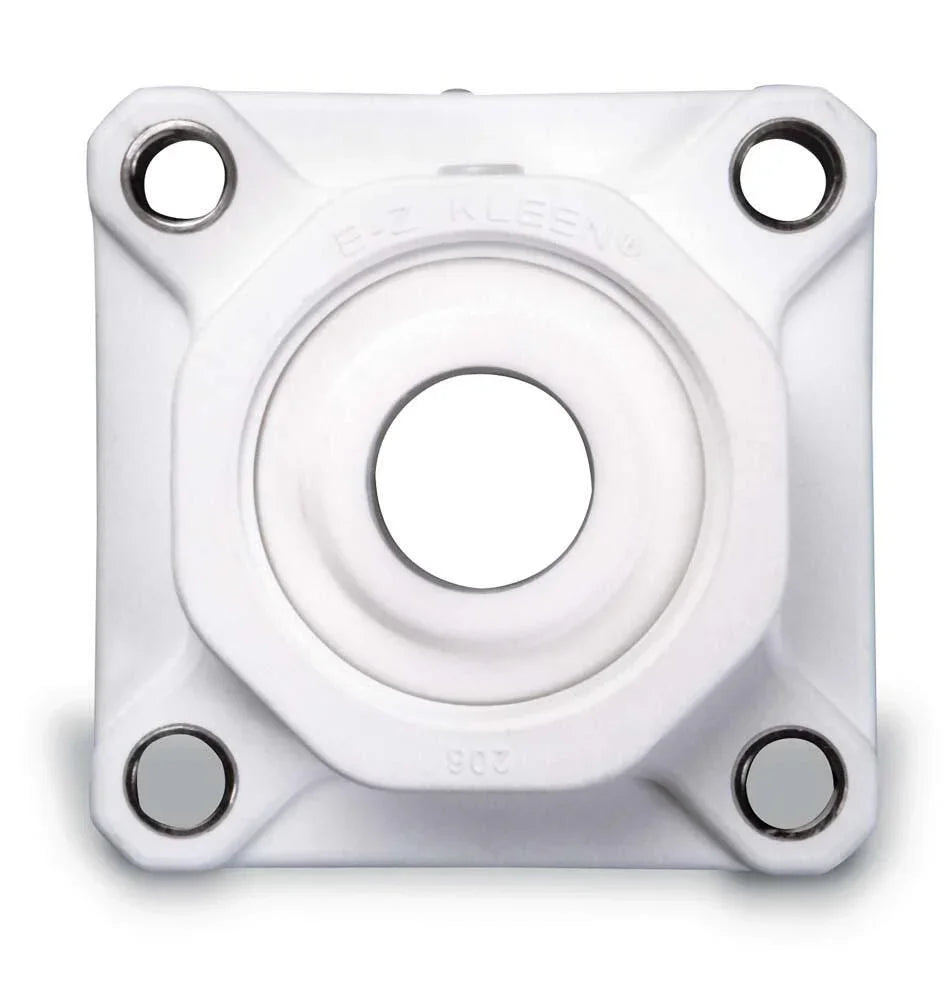

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034720 - Dodge - F4B-PSEZ-104-P
F4B-PSEZ-104-P
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.6300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.7500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/f4b_psez_bolt_bodi_asmtab.prj&varset={SERIES=207},{SS=1-1/4},{PN=034720},{DESCRIPTION=F4B-PSEZ-104-P},{WEIGHT=0.97},{A=1-5/16},{B=4-21/32},{C=1-29/64},{D=3-5/8},{F=1/2},{H=39/64},{J=9/64},{L=2}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
