034716 - Dodge - F4B-PSEZ-012-P
Regular price
$104.27 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

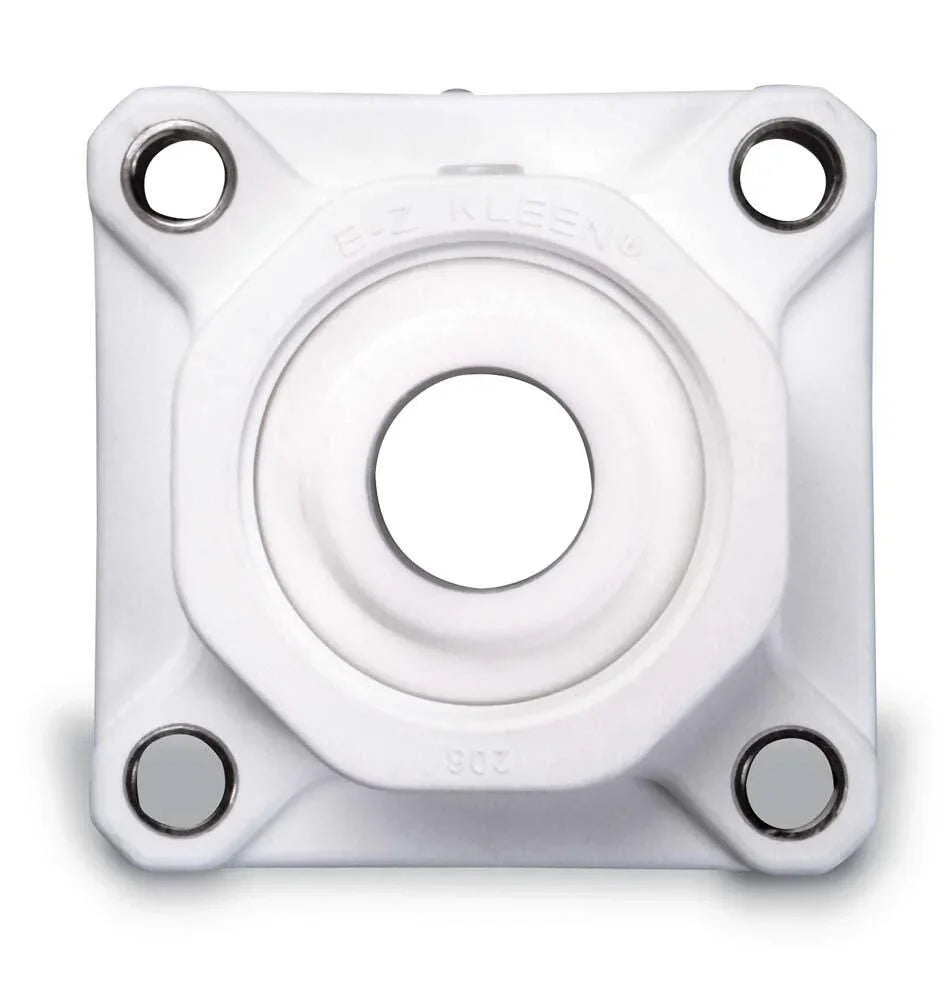

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034716 - Dodge - F4B-PSEZ-012-P
F4B-PSEZ-012-P
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.3750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 2.5000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 2.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.2800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/f4b_psez_bolt_bodi_asmtab.prj&varset={SERIES=204},{SS=3/4},{PN=034716},{DESCRIPTION=F4B-PSEZ-012-P},{WEIGHT=0.48},{A=1},{B=3-3/8},{C=1-7/32},{D=2-1/2},{F=3/8},{H=33/64},{J=5/64},{L=1-5/16}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 0.7500 |
| Shaft Diameter (Unit) | INCH |
