034714 - Dodge - TB-PSEZ-104-P
Regular price
$157.44 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

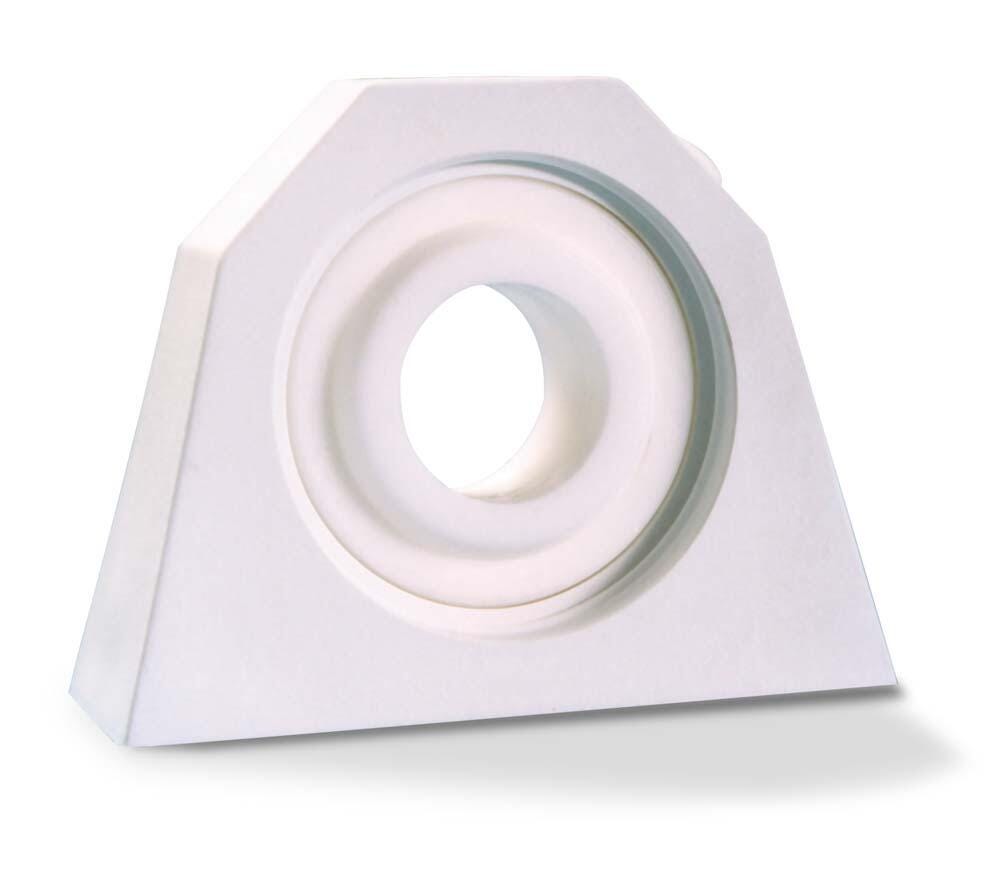

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034714 - Dodge - TB-PSEZ-104-P
TB-PSEZ-104-P
Technical Specifications
| Base to Center Height | 1.8800 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Journal |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.7100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/washdown_plain/polymer_sleeve_e_z_kleen_psez/p2b_psez_tap_bodi_asmtab.prj&varset={SERIES=207},{SS=1-1/4},{PN=034714},{DESCRIPTION=TB-PSEZ-104-P},{WEIGHT=1.02},{A=1-5/16},{B=4-5/8},{C=1-7/8},{D=3-1/4},{F=1/2-13},{J=3-13/16},{L=2},{M=1-7/8},{N=35/64}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Polymer |
| Housing Type | Tapped-Base Pillow Block |
| Insert Material | Polymer |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.2500 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | LD-40,TS-300 |
