034332 - Dodge - WSTU-LT10-75M
Regular price
$1,214.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

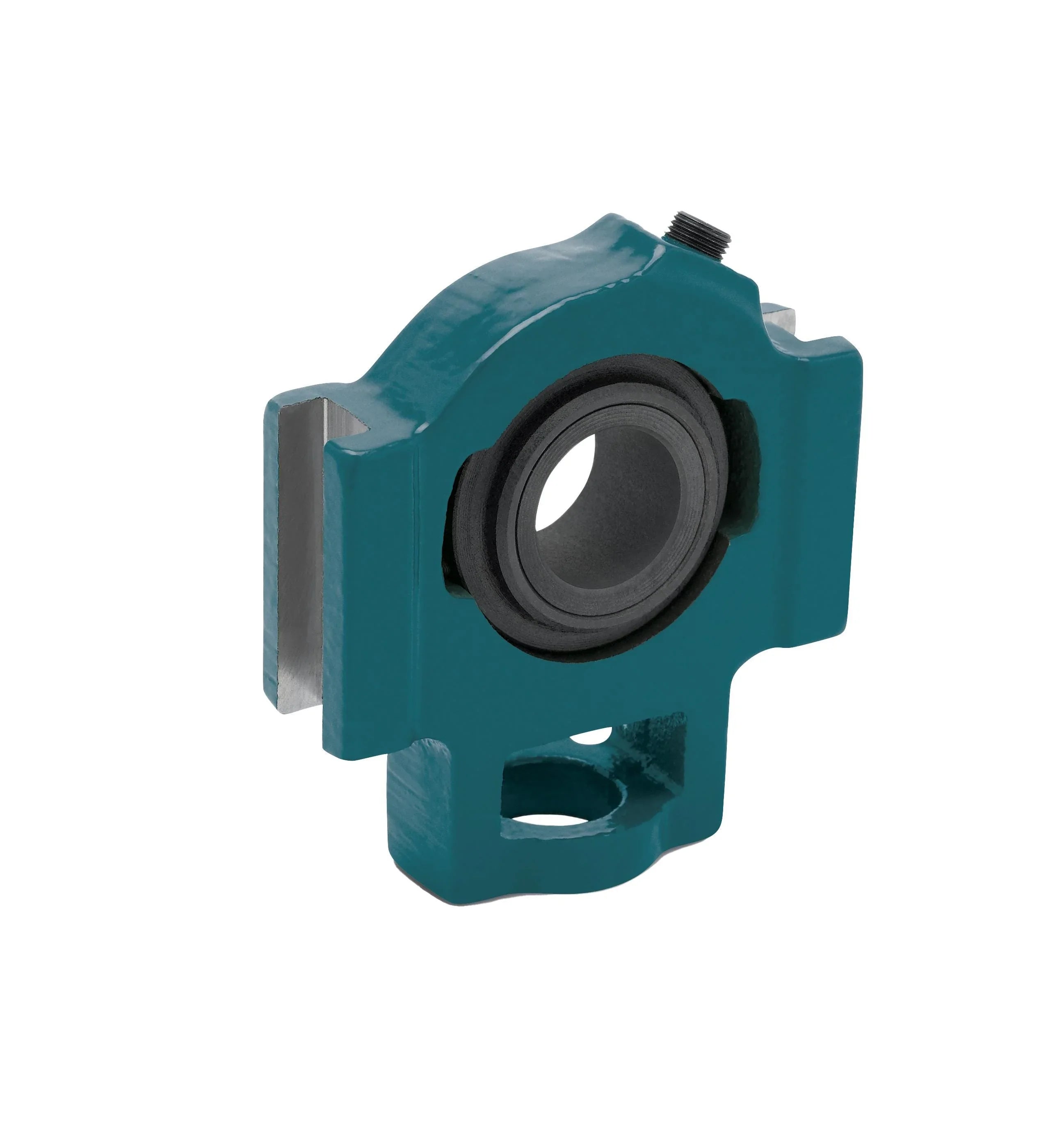

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034332 - Dodge - WSTU-LT10-75M
WSTU-LT10-75M
Technical Specifications
| Bearing Type | Journal |
| Bore Length | 2.3300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/solidlube_lt7_lt10/wstu_lt10_body_asmtab.prj&varset={SERIES=215},{SS=75},{PN=034332},{DESCRIPTION=WSTU-LT10-75M},{WEIGHT=5.67},{A=69.1},{B=231.8},{C=27.0},{D=120.7},{E=139.7},{F=1-9/16},{G=20.6},{H=31.8},{J=111.1},{K=69.9},{L=100.0},{M=150.8},{N=169.9},{T=69.9}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Graphite |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 75.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Take-Up Frame Size | WS-515 |
