034325 - Dodge - WSTU-LT10-30M
Regular price
$417.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

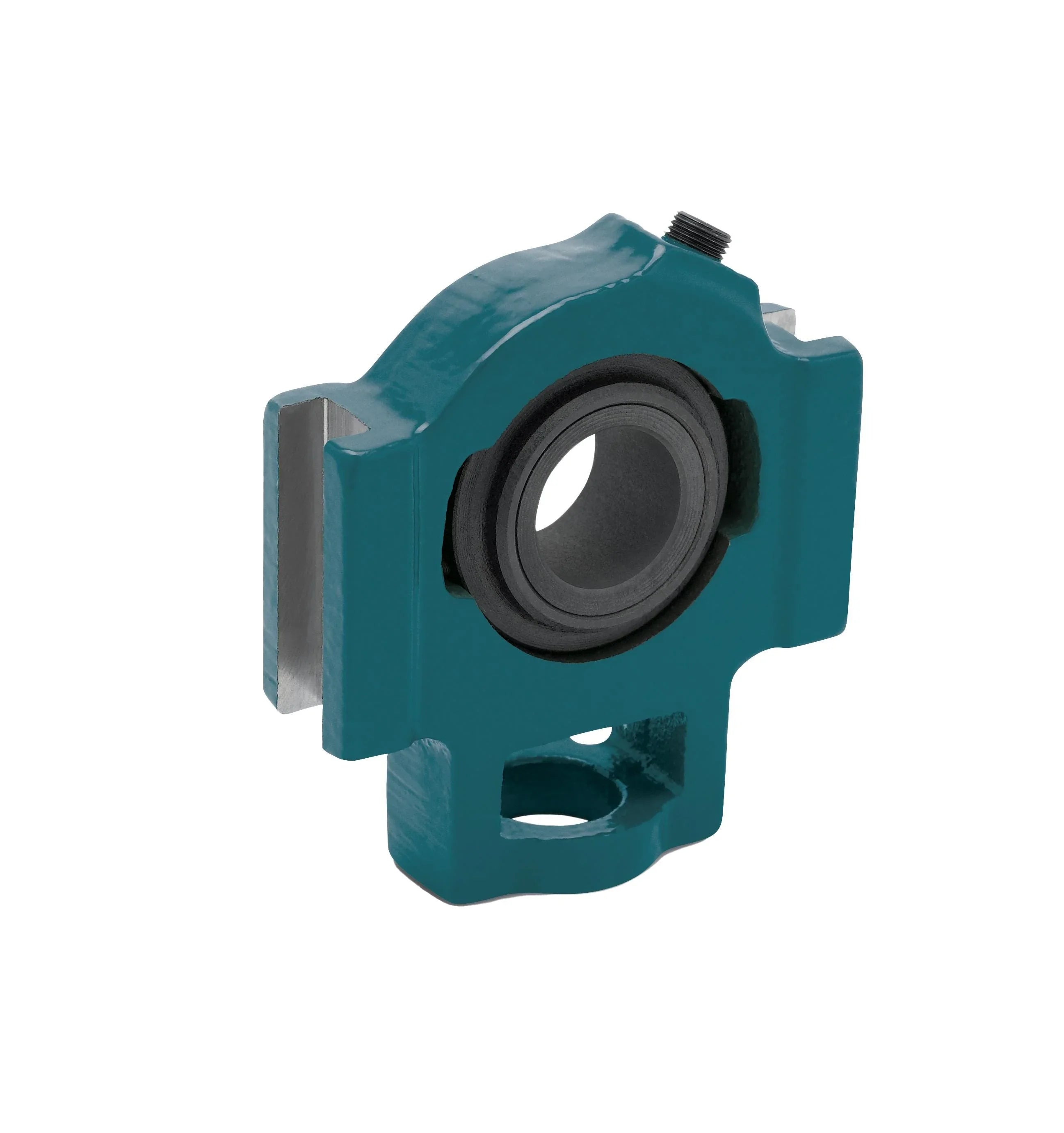

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034325 - Dodge - WSTU-LT10-30M
WSTU-LT10-30M
Technical Specifications
| Bearing Type | Journal |
| Bore Length | 1.5200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/solidlube_lt7_lt10/wstu_lt10_body_asmtab.prj&varset={SERIES=206},{SS=30},{PN=034325},{DESCRIPTION=WSTU-LT10-30M},{WEIGHT=1.41},{A=30.2},{B=111.1},{C=13.5},{D=57.2},{E=69.9},{F=7/8},{G=9.5},{H=15.9},{J=55.6},{K=36.5},{L=46.0},{M=88.9},{N=104.8},{T=41.3}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Graphite |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Take-Up Frame Size | WS-308 |
