034294 - Dodge - NSTU-LT7-25M
Regular price
$270.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

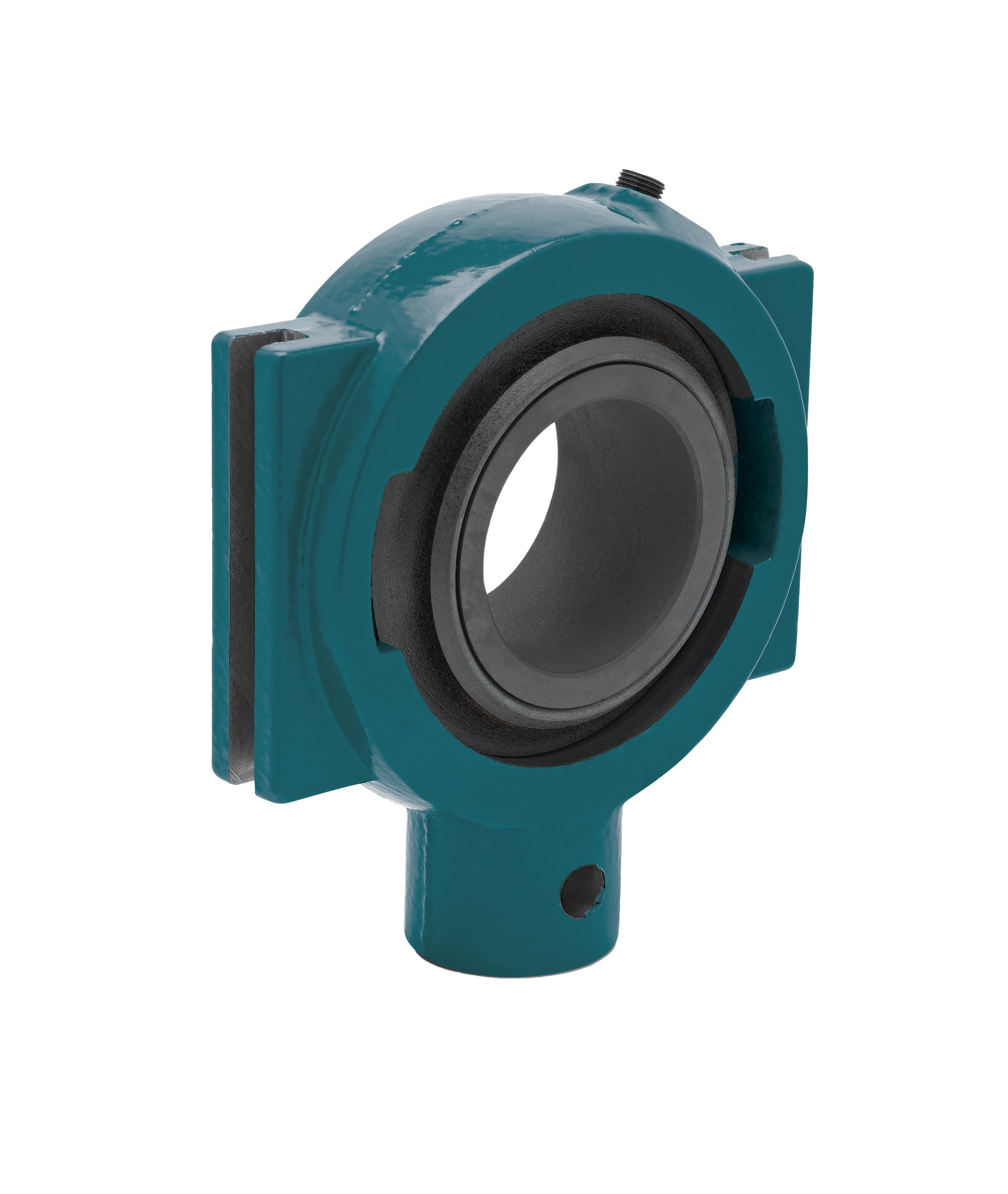

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
034294 - Dodge - NSTU-LT7-25M
NSTU-LT7-25M
Technical Specifications
| Bearing Type | Journal |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/solidlube_lt7_lt10/nstu_lt7_body_asmtab.prj&varset={SERIES=205},{SS=25},{PN=034294},{DESCRIPTION=NSTU-LT7-25M},{WEIGHT=.77},{A=27.0},{B=90.5},{C=6.4},{D=38.1},{E=55.6},{F=3/4},{G=11.1},{H=22.2},{J=34.9},{L=39.7},{M=66.7},{N=79.4},{P=5/16}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Graphite |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 25.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
| Take-Up Frame Size | NS-210 |
