034285 - Dodge - F4B-LT10-30M
Regular price
$403.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

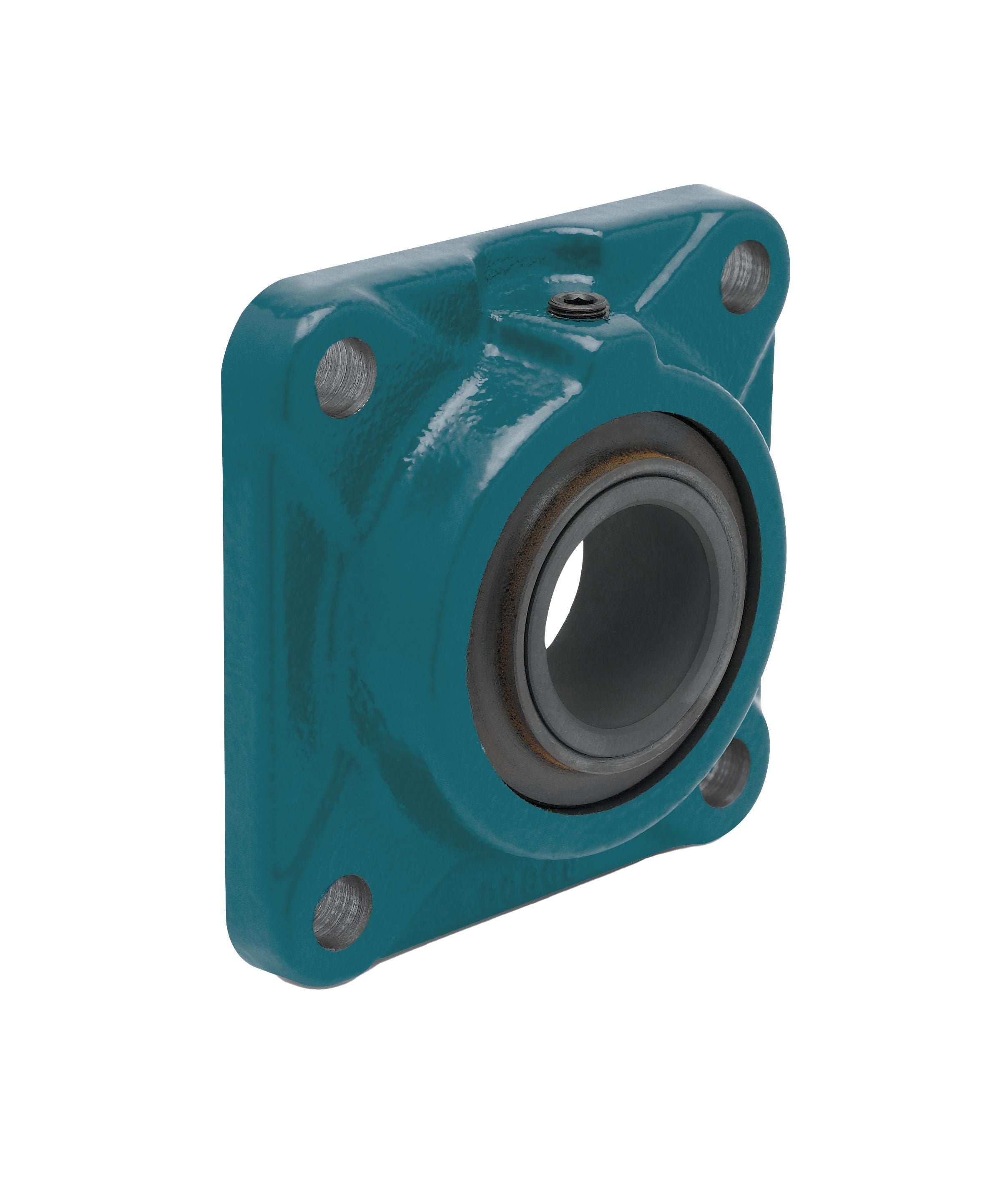

034285 - Dodge - F4B-LT10-30M
F4B-LT10-30M
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 3.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 3.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.5600 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/solidlube_lt7_lt10/f4b_lt10_metric_asmtab.prj&varset={SERIES=206},{SS=30},{PN=034285},{DESCRIPTION=F4B-LT10-30M},{WEIGHT=1.27},{A=24.6},{B=108.0},{C=31.0},{D=82.6},{F=10.0},{H=12.7},{J=4.0},{L=46.0}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Graphite |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 30.0000 |
| Shaft Diameter (Unit) | MILLIMETER |
