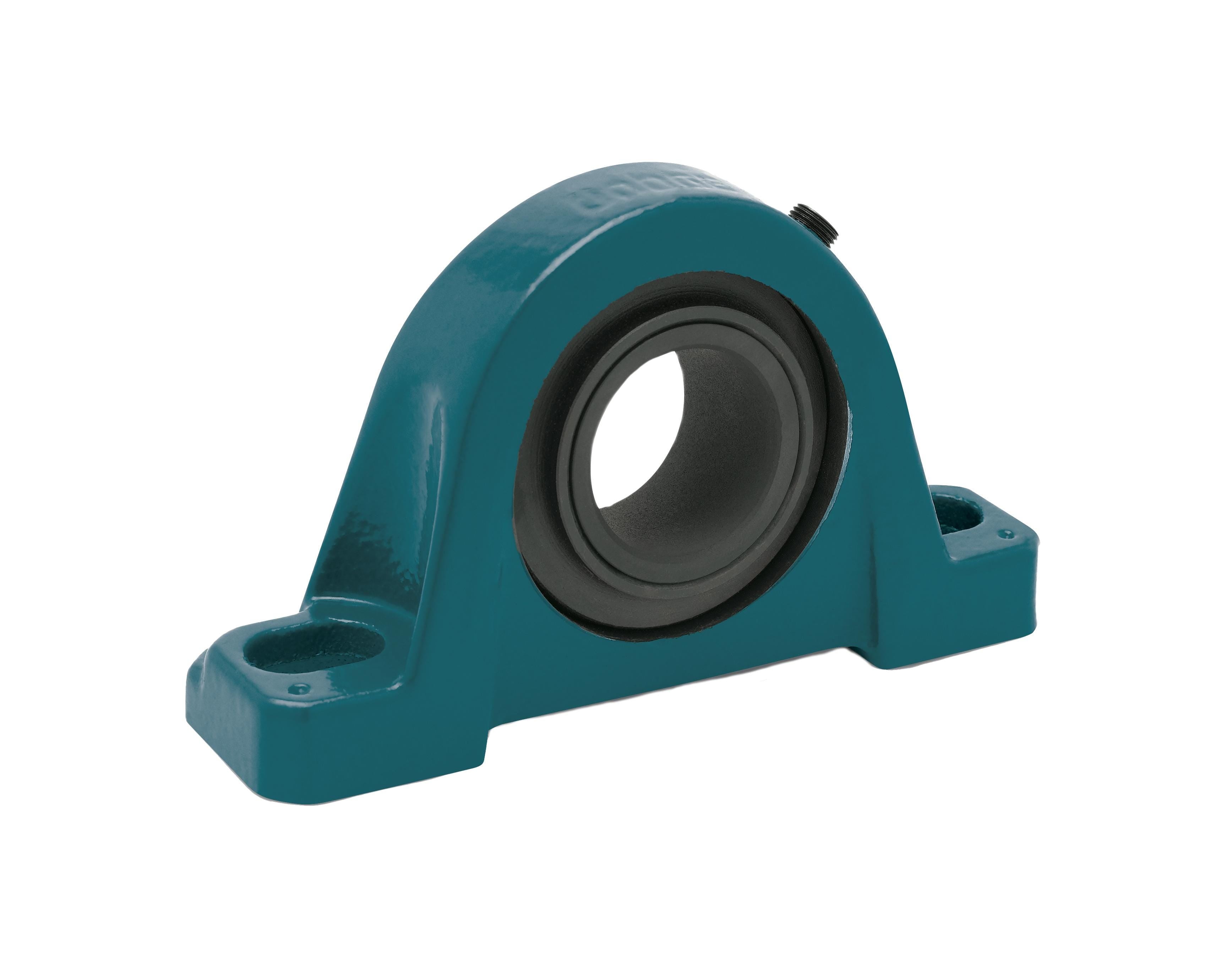

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
033992 - Dodge - P2B-LT10-115
P2B-LT10-115
Technical Specifications
| Base to Center Height | 1.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Journal |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.6800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 8.1200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/solidlube_lt7_lt10/p2b_lt10_asmtab.prj&varset={SERIES=210},{SS=1-15/16},{PN=033992},{DESCRIPTION=P2B-LT10-115},{WEIGHT=6.8},{A=1-5/8},{B=8-1/8},{C=2-1/4},{DMIN=6},{DMAX=6-11/16},{F=5/8},{G=1-1/32},{H=3/4},{J=4-17/32},{L=2-13/16},{M=2-1/4}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Graphite |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.9375 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | LD-30,TS-300 |
