033813 - Dodge - NSTU-LT7-100
Regular price
$284.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

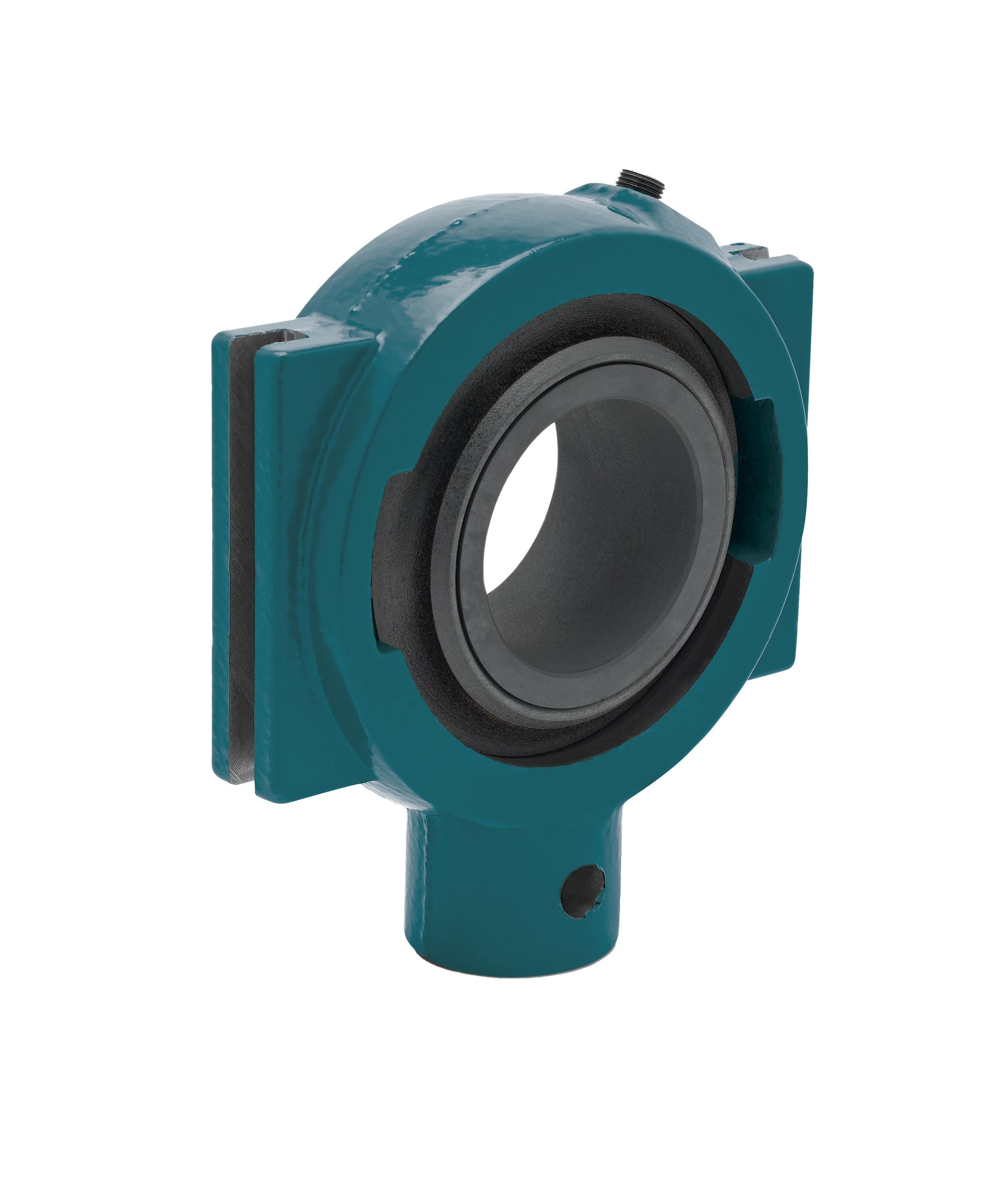

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
033813 - Dodge - NSTU-LT7-100
NSTU-LT7-100
Technical Specifications
| Bearing Type | Journal |
| Bore Length | 1.3400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/solidlube_lt7_lt10/nstu_lt7_bodi_asmtab.prj&varset={SERIES=205},{SS=1},{PN=033813},{DESCRIPTION=NSTU-LT7-100},{WEIGHT=1.7},{A=1-1/16},{B=3-9/16},{C=1/4},{D=1-1/2},{E=2-3/16},{F=3/4},{G=7/16},{H=7/8},{J=1-3/8},{L=1-9/16},{M=2-5/8},{N=3-1/8},{P=5/16}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Narrow-Slot Take-up |
| Insert Material | Graphite |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.0000 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | NS-210 |
