033681 - Dodge - P2B-LT7-112
Regular price
$403.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

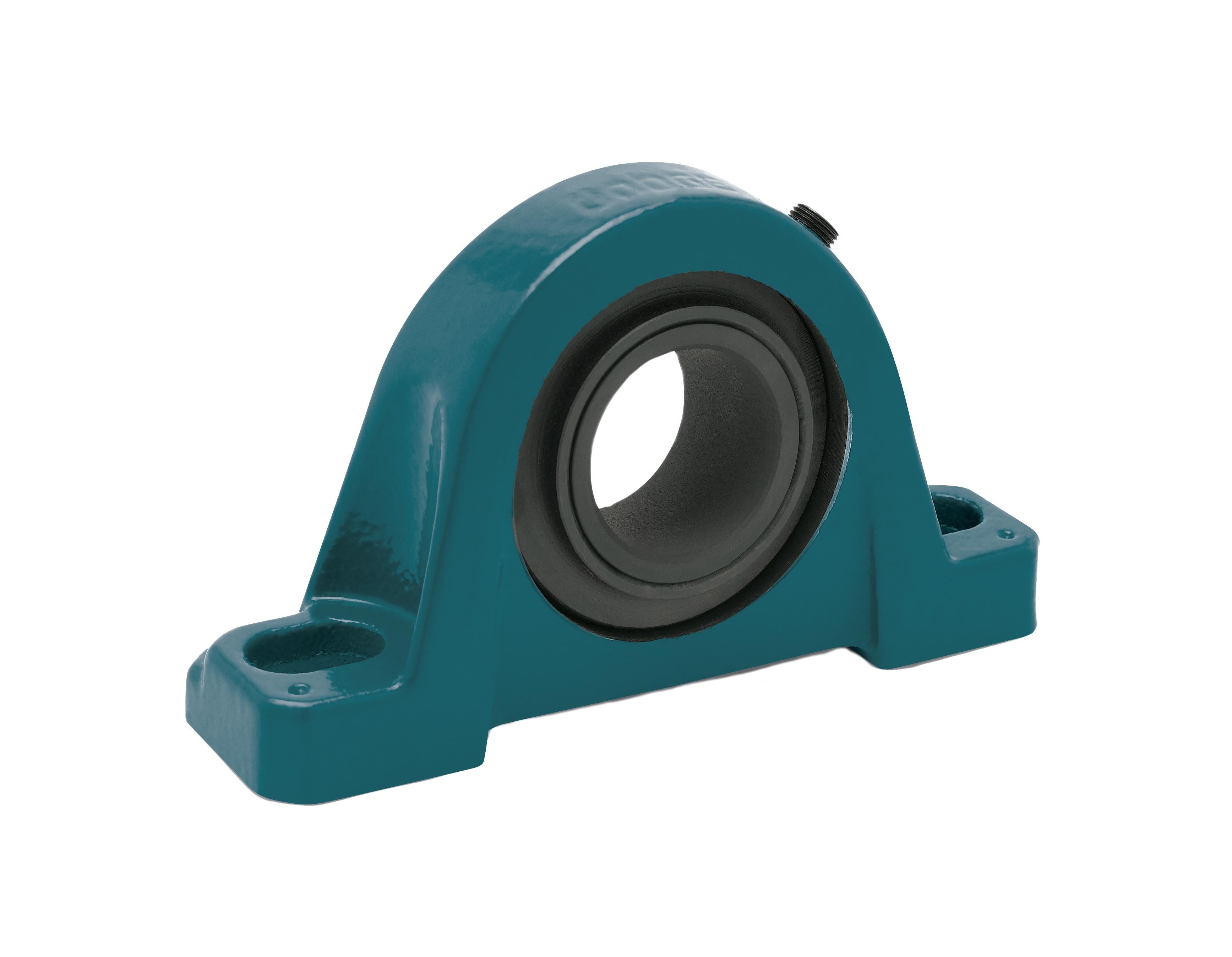

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
033681 - Dodge - P2B-LT7-112
P2B-LT7-112
Technical Specifications
| Base to Center Height | 2.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Journal |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.1900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.5000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 7.4400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/solidlube_lt7_lt10/p2b_lt7_asmtab_i.prj&varset={SERIES=209},{SS=1-3/4},{PN=033681},{DESCRIPTION=P2B-LT7-112},{WEIGHT=5.8},{A=1-9/16},{B=7-7/16},{C=2},{DMIN=5-1/2},{DMAX=6-3/16},{F=1/2},{G=29/32},{H=3/4},{J=4-9/32},{L=2-9/16},{M=2-1/8}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Graphite |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.7500 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | LD-20,TS-250 |
