033189 - Dodge - F2B-LT10-102
Regular price
$403.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

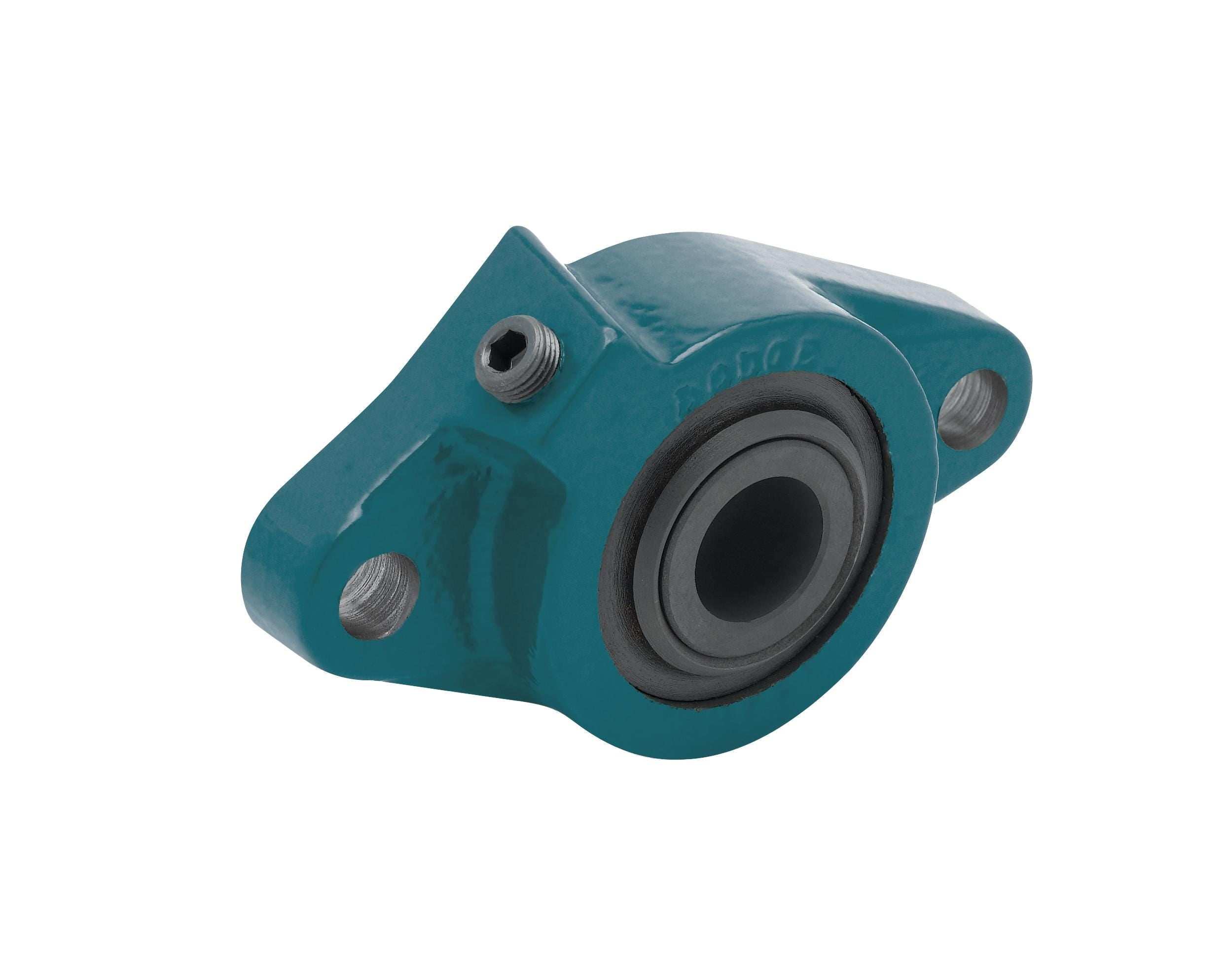

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
033189 - Dodge - F2B-LT10-102
F2B-LT10-102
Technical Specifications
| Bearing Type | Journal |
| Bolt Diameter | 0.4375 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.5900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.5900 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 1.7700 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/solidlube_lt7_lt10/f2b_lt10_asmtab.prj&varset={SERIES=206},{SS=1-1/8},{PN=033189},{DESCRIPTION=F2B-LT10-102},{A=1-7/64},{B=5-9/16},{C=1-7/32},{D=4-19/32},{F=7/16},{H=1/2},{J=5/32},{L=1-13/16},{M=3-1/8},{N=1-9/16}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Flange |
| Insert Material | Graphite |
| Lubrication | Self-Lubricated |
| Shaft Diameter | 1.1250 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | LD-20 |
