469234 - Dodge - 6B5V66-Q1 SHEAVE
Regular price
$221.87 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

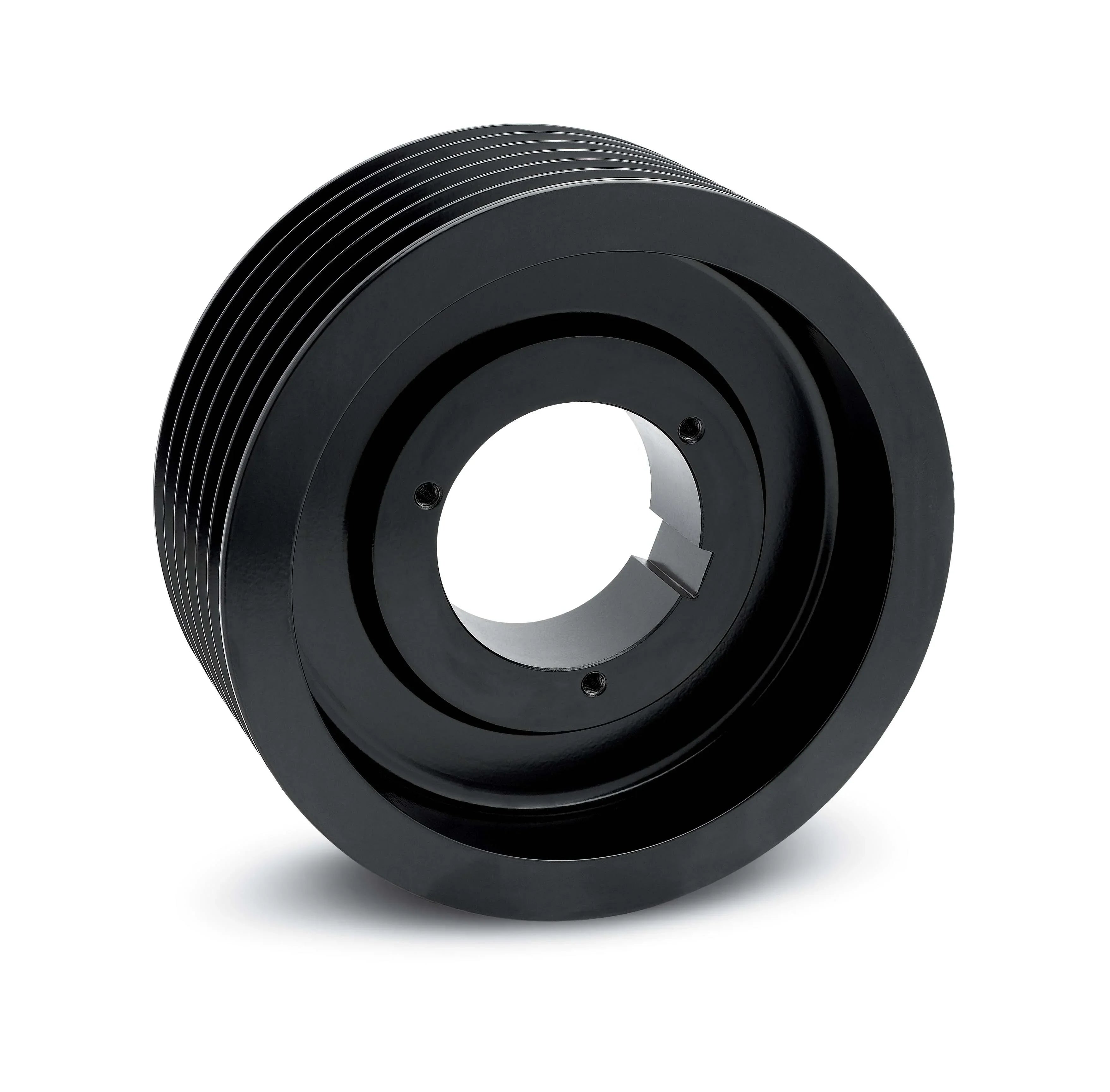

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469234 - Dodge - 6B5V66-Q1 SHEAVE
6B5V66-Q1 SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469234},{CR=6B5V66-Q1},{OUTS=6.88},{DATUMA=6.20},{DATUMB=6.60},{PITCH=6.70},{H=0.000000},{TYPE=3B},{B=Q1},{WT=18.3},{F=4.59400},{L=2.5000},{E=2.094000} |
| Construction Type | Block |
| Datum Diameter | 6.8800 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 6.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 6.8800 |
