469153 - Dodge - 4B5V94-B SHEAVE
Regular price
$232.11 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

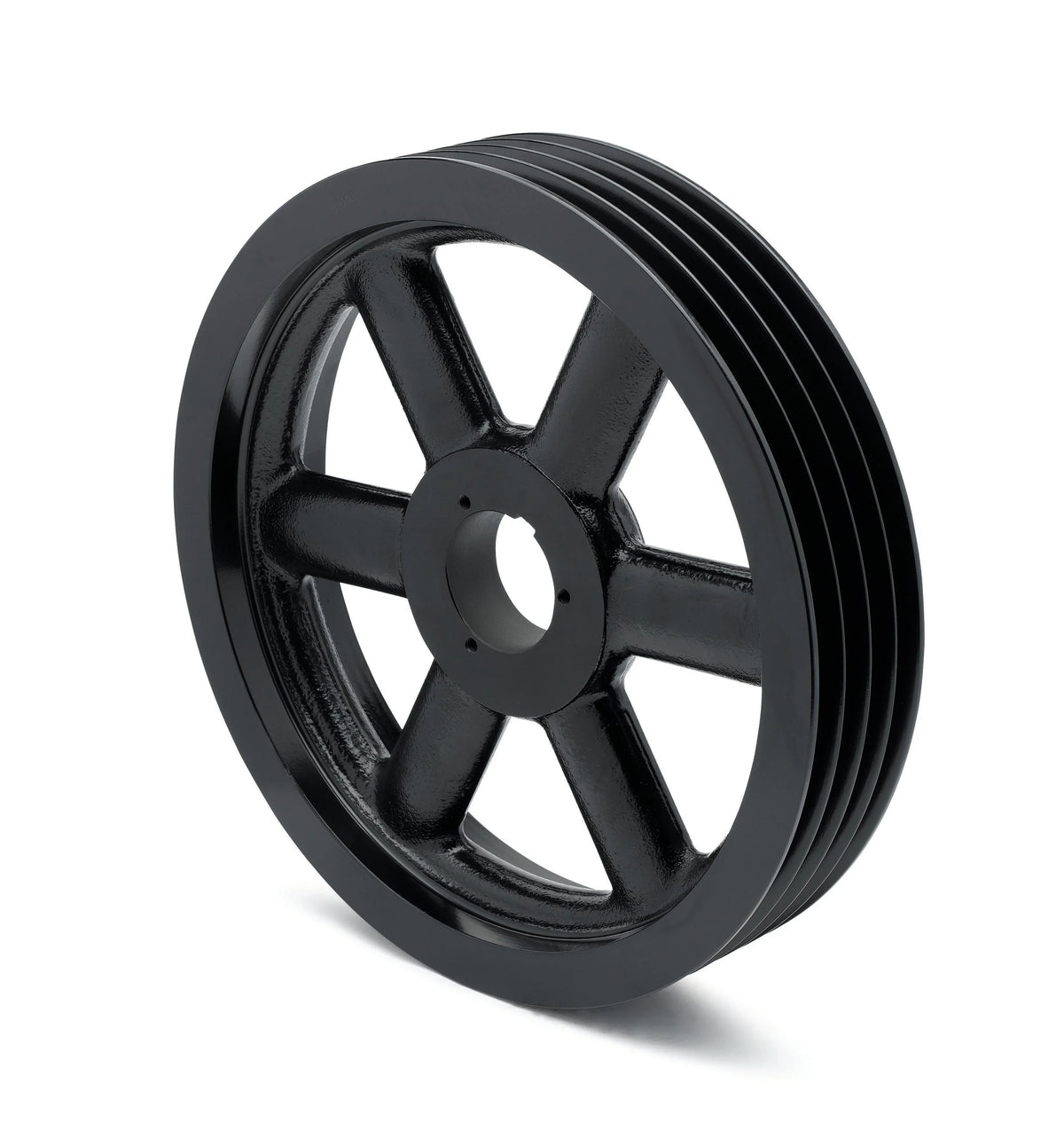

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469153 - Dodge - 4B5V94-B SHEAVE
4B5V94-B SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469153},{CR=4B5V94},{OUTS=9.68},{DATUMA=9.00},{DATUMB=9.40},{PITCH=9.50},{H=0.000000},{TYPE=4W},{B=B},{WT=20.0},{F=3.15625},{L=1.9375},{E=0.890625} |
| Construction Type | Block |
| Datum Diameter | 9.6800 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 4.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 9.6800 |
