469164 - Dodge - 4B5V158-R1 SHEAVE
Regular price
$394.24 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

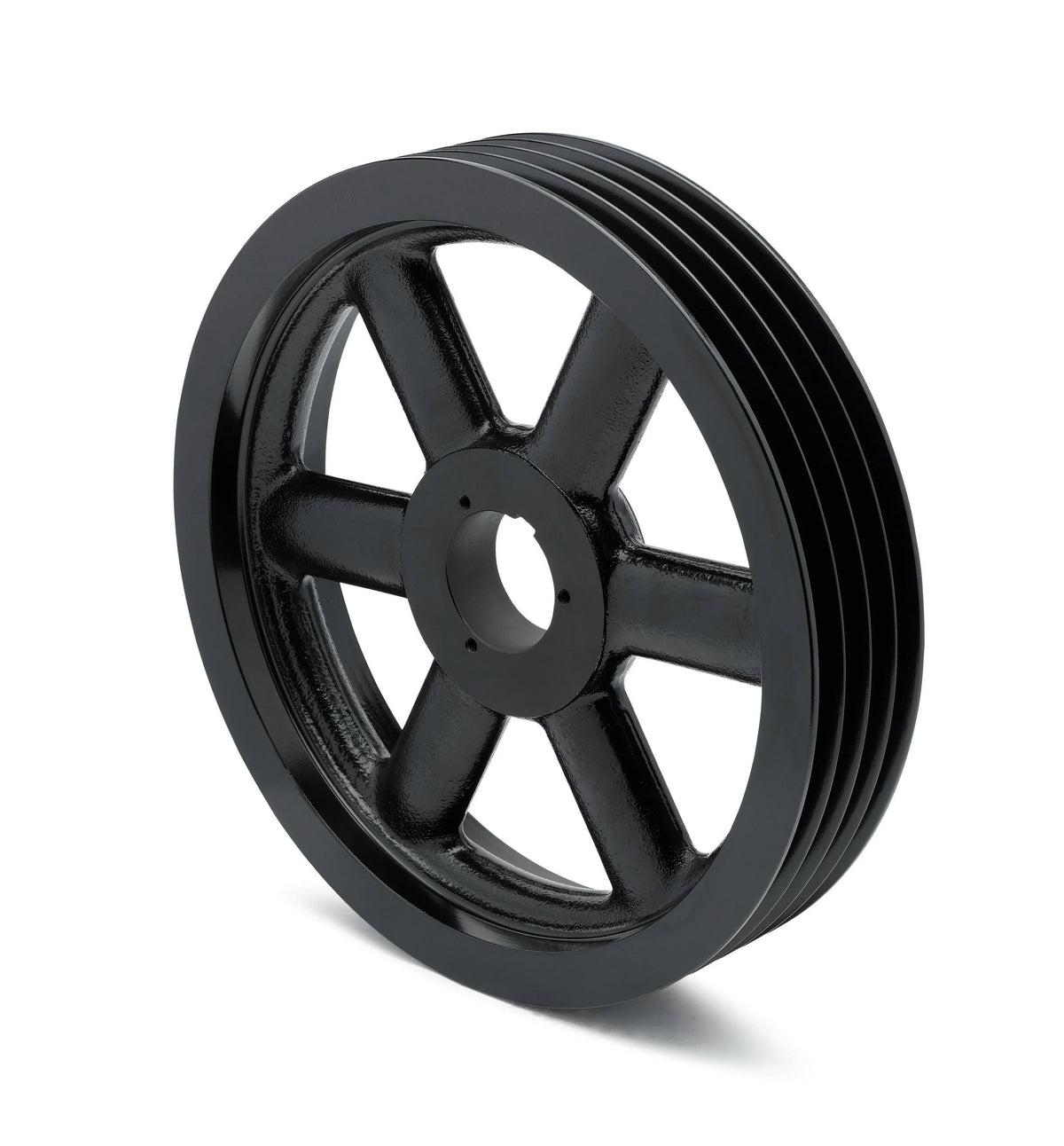

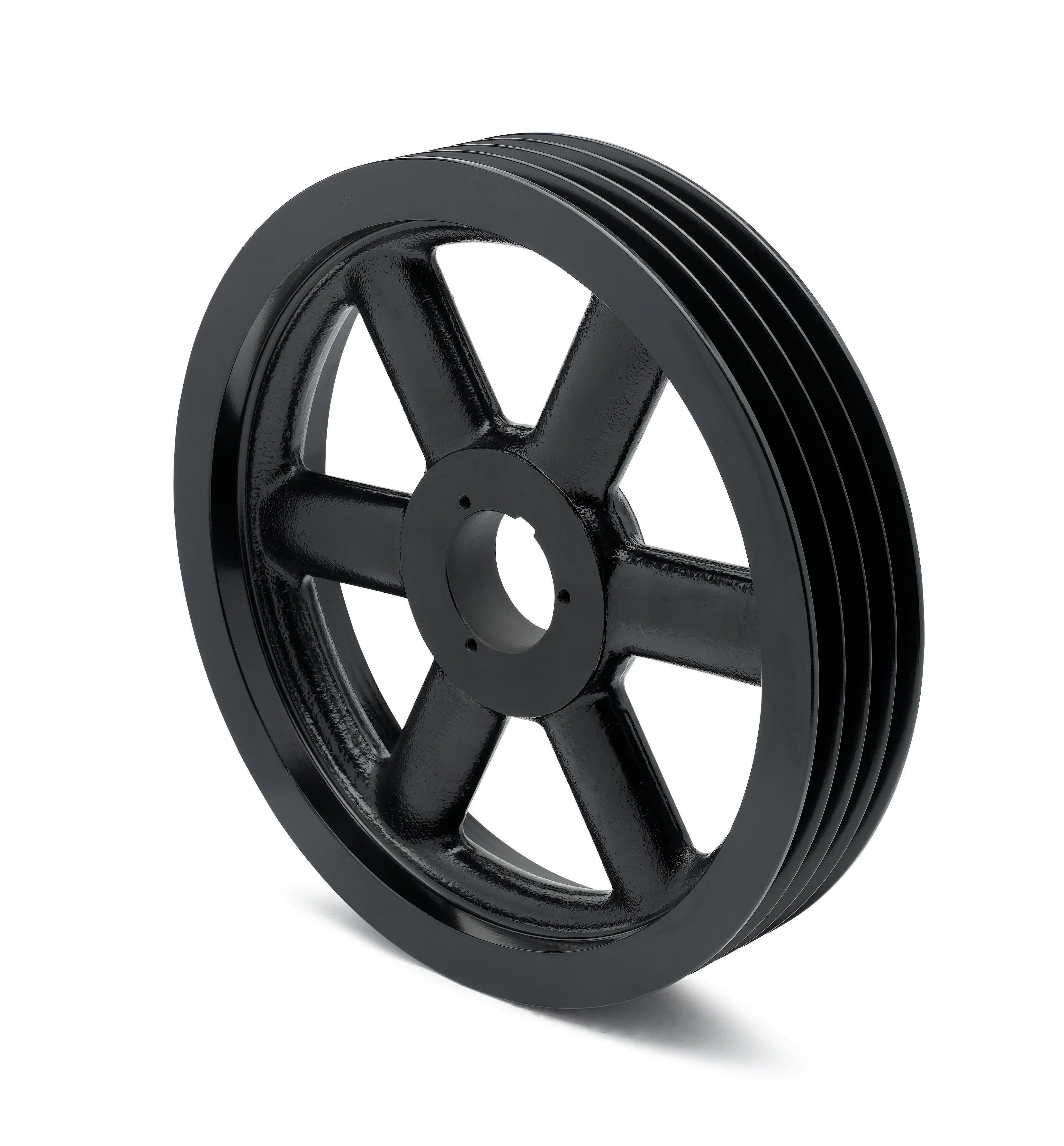

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469164 - Dodge - 4B5V158-R1 SHEAVE
4B5V158-R1 SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469164},{CR=4B5V158-R1},{OUTS=16.00},{DATUMA=15.32},{DATUMB=15.72},{PITCH=15.82},{H=0.295000},{TYPE=4A},{B=R1},{WT=45.2},{F=3.16000},{L=2.8750},{E=0.580000} |
| Construction Type | Block |
| Datum Diameter | 16.0000 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 4.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 16.0000 |
