469116 - Dodge - 3B5V148-R1 SHEAVE
Regular price
$315.73 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

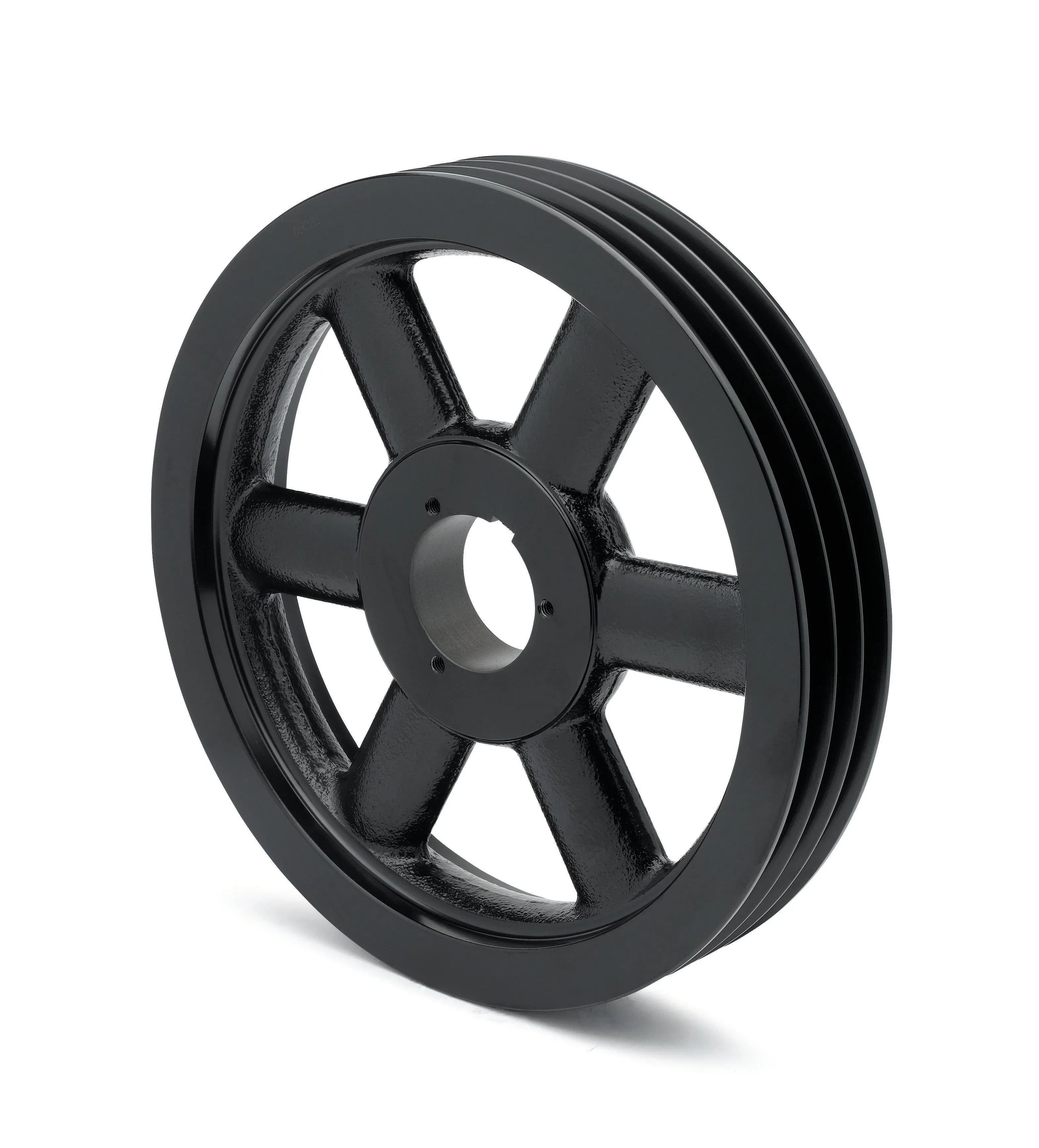

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469116 - Dodge - 3B5V148-R1 SHEAVE
3B5V148-R1 SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469116},{CR=3B5V148-R1},{OUTS=15.00},{DATUMA=14.32},{DATUMB=14.72},{PITCH=14.82},{H=0.655000},{TYPE=4W},{B=R1},{WT=39.0},{F=2.43750},{L=2.8750},{E=0.220000} |
| Construction Type | Block |
| Datum Diameter | 15.0000 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 3.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 15.0000 |
