32Q10R14 TIGEAR-2 REDUCER - Dodge
Regular price
$1,906.93 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

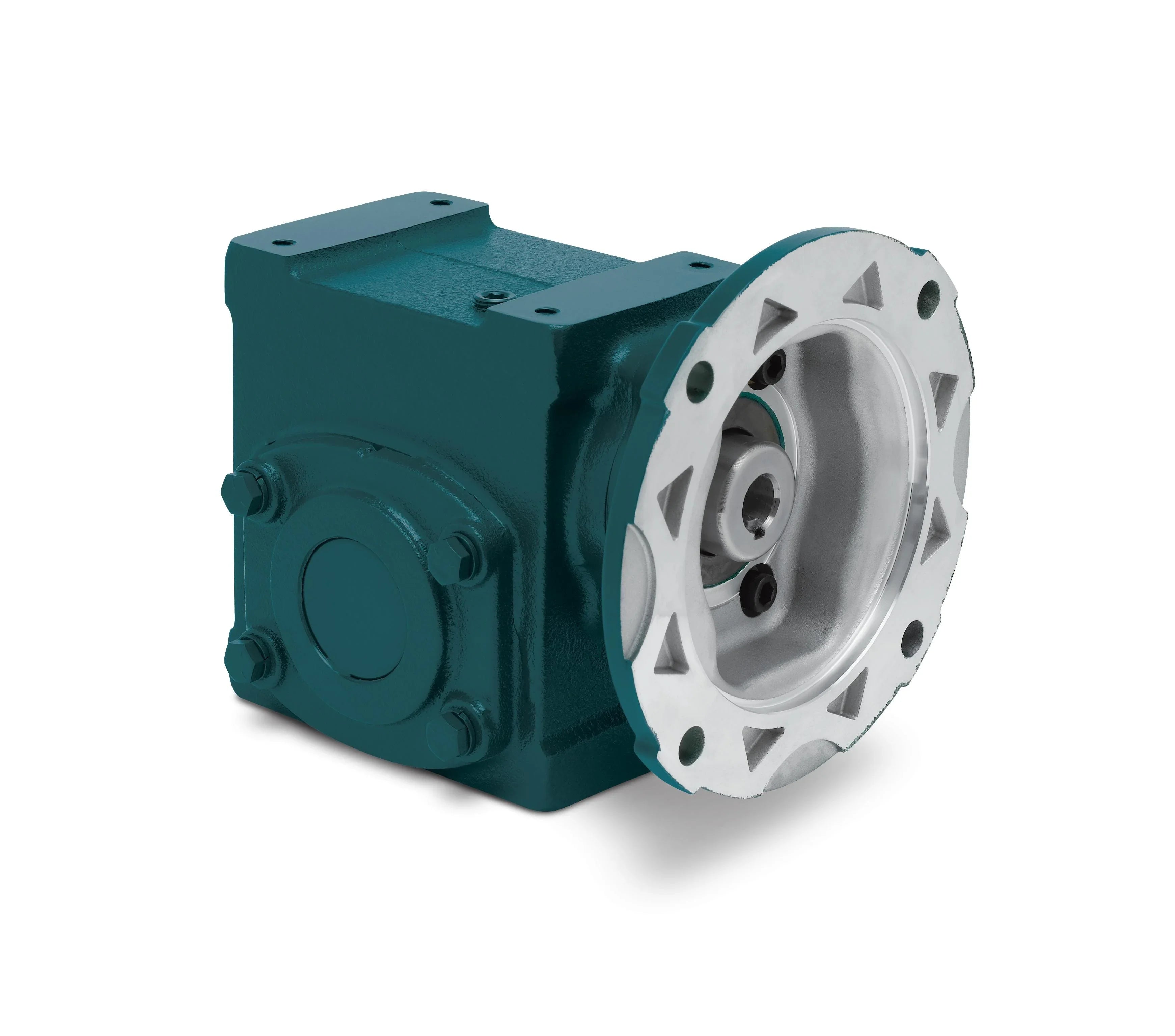

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
32Q10R14 TIGEAR-2 REDUCER
| Specifications | |
|---|---|
| Base to Output Center Height | 3.5 in |
| Case Size | 32 |
| Center Distance | 3 in |
| Center to End of Shaft Distance | 6.75 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 8.71 HP |
| Horsepower Rating Output | 7.99 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 140TC Frame |
| Motor Connection | Quill |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 7.5 in |
| Mounting Bolt Pattern Width | 4 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 6.11 in |
| Output Shaft Location | Right |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 1.375 in |
| Output Shaft Length | 3.2 in |
| Overhung Load | 1720 lbf |
| Paint Type | Standard |
| Rated Torque Output | 2876 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 11.97 HP |
| Actual Ratio | 10 |
| Nominal Ratio | 10 |
