Marathon Electric Severe Duty Motor, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 284T Frame, TEFC
Regular price
$4,629.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

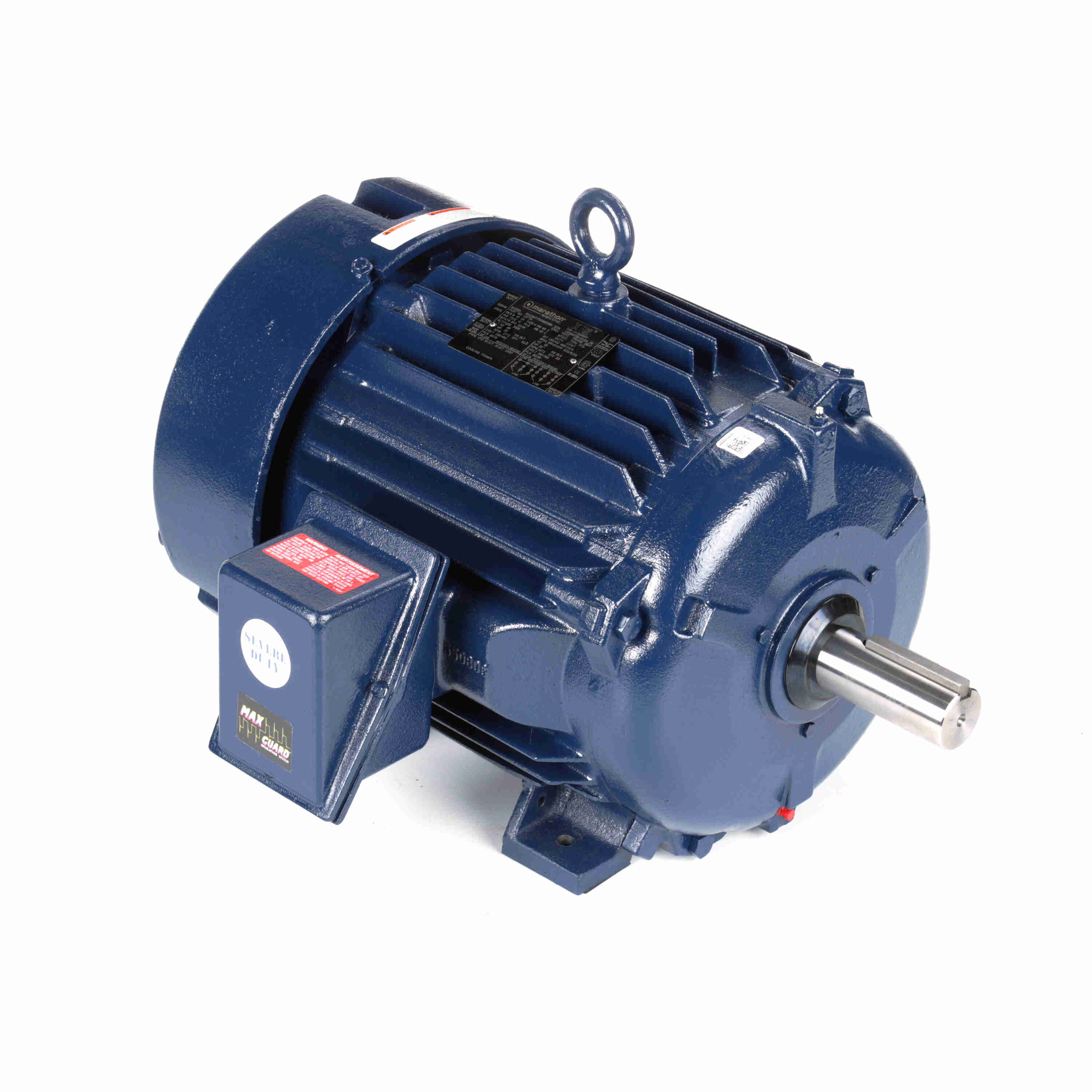

Severe Duty Motor, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 284T Frame, TEFC
Features
- Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
- Internal and external epoxy paint
- Class F insulation
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
- Extended grease tubes, Regreasable in service
- T-drains provided for effective drainage (Installed in both endshields
- Suitable for shaft down mounting
- Shaft Slinger
- Forsheda seals on both ends
- Actual test and vibration data supplied with each motor
Specifications
| Performance & Electrical | |
| Power | 25 HP |
| Power (dual rating) | 25 & 20 HP |
| Power | 18.7 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1772 RPM |
| Speed (dual) | 1772 & 1472 RPM |
| Full-load current | 62.0/31.0 A |
| Current (dual) | 62/31 & 60/30 A |
| Nominal efficiency | 93.6% |
| Power factor | 81% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | .271 Ω |
| Frame & Mechanical | |
| Frame | 284T |
| Frame size | 284 |
| Frame suffix | T |
| Frame material | Cast Iron |
| Frame length | 12.75 in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | RIGID |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.875 in |
| Shaft extension | 4.82 in |
| Shaft type | T |
| C dimension | 26.21 in |
| Drive-end bearing | 6311 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6210 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | A-EE7308 |
| Outline drawing | B-SS311057-1275 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 35.00 × 26.00 × 24.51 in |
| Weight | 468.00 lb |
| Identification | |
| Manufacturer part / model | 284TTFNA16832 |
| Catalog number | U873A |
| UPC | 722856018854 |
| Product line | XRI®-SD |
| Country of origin | United States of America |
| HTS / tariff code | 8501.52.8040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
