469130 - Dodge - 4B40-P1 SHEAVE
Regular price
$115.20 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

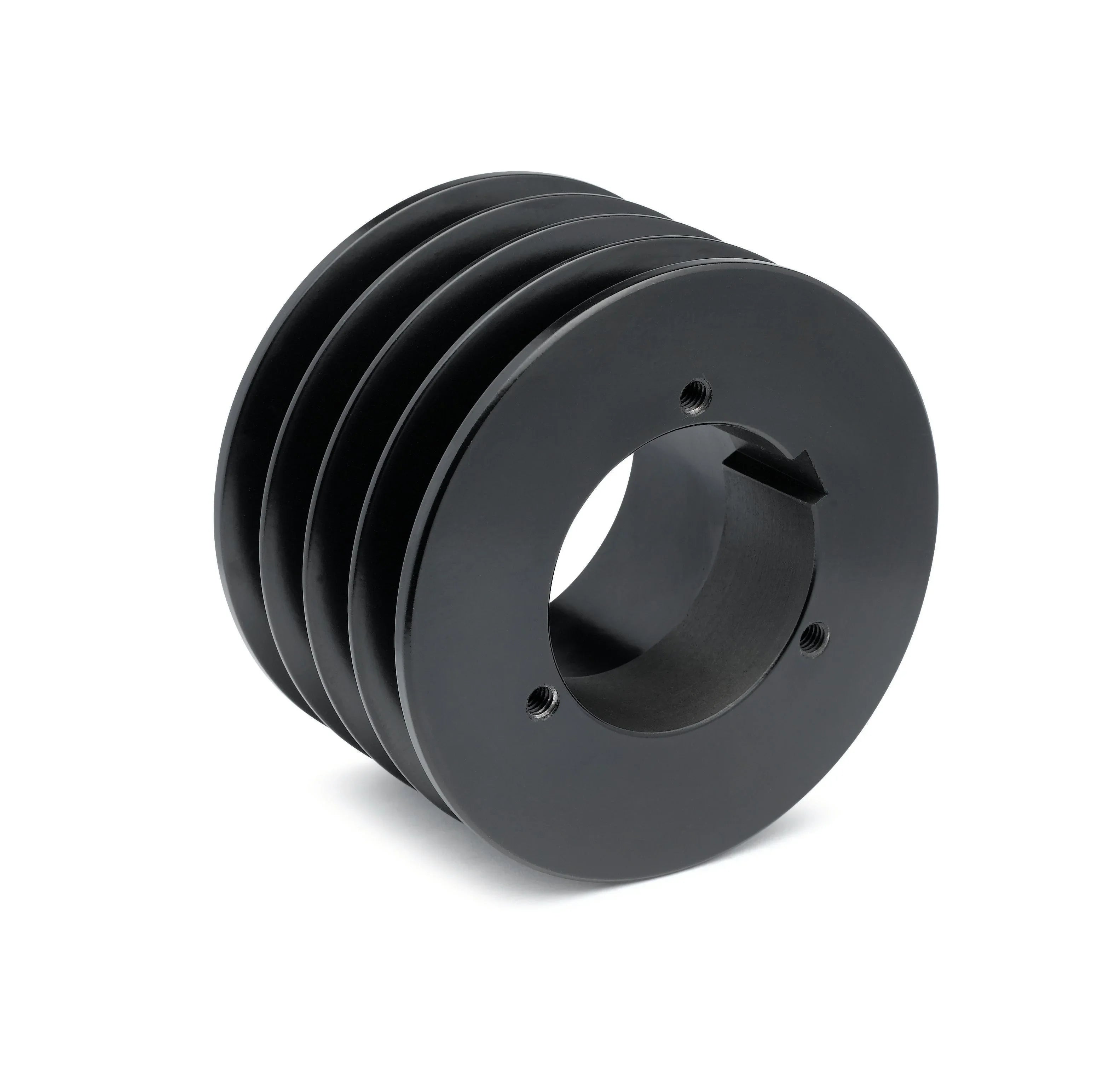

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
469127 - Dodge - 4B34-P2 SHEAVE
4B34-P2 SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469127},{CR=4B34-P2},{OUTS=3.75},{DATUMA=3.00},{DATUMB=3.40},{PITCH=0.00},{H=1.187500},{TYPE=3B},{B=P2},{WT=4.5},{F=3.25000},{L=2.9375},{E=1.375000} |
| Construction Type | Block |
| Datum Diameter | 3.7500 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 4.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 3.7500 |
