469034 - Dodge - 1B5V300-Q1 SHEAVE

SKU: 469034 Barcode: 782477470110

$597.33 USD

Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

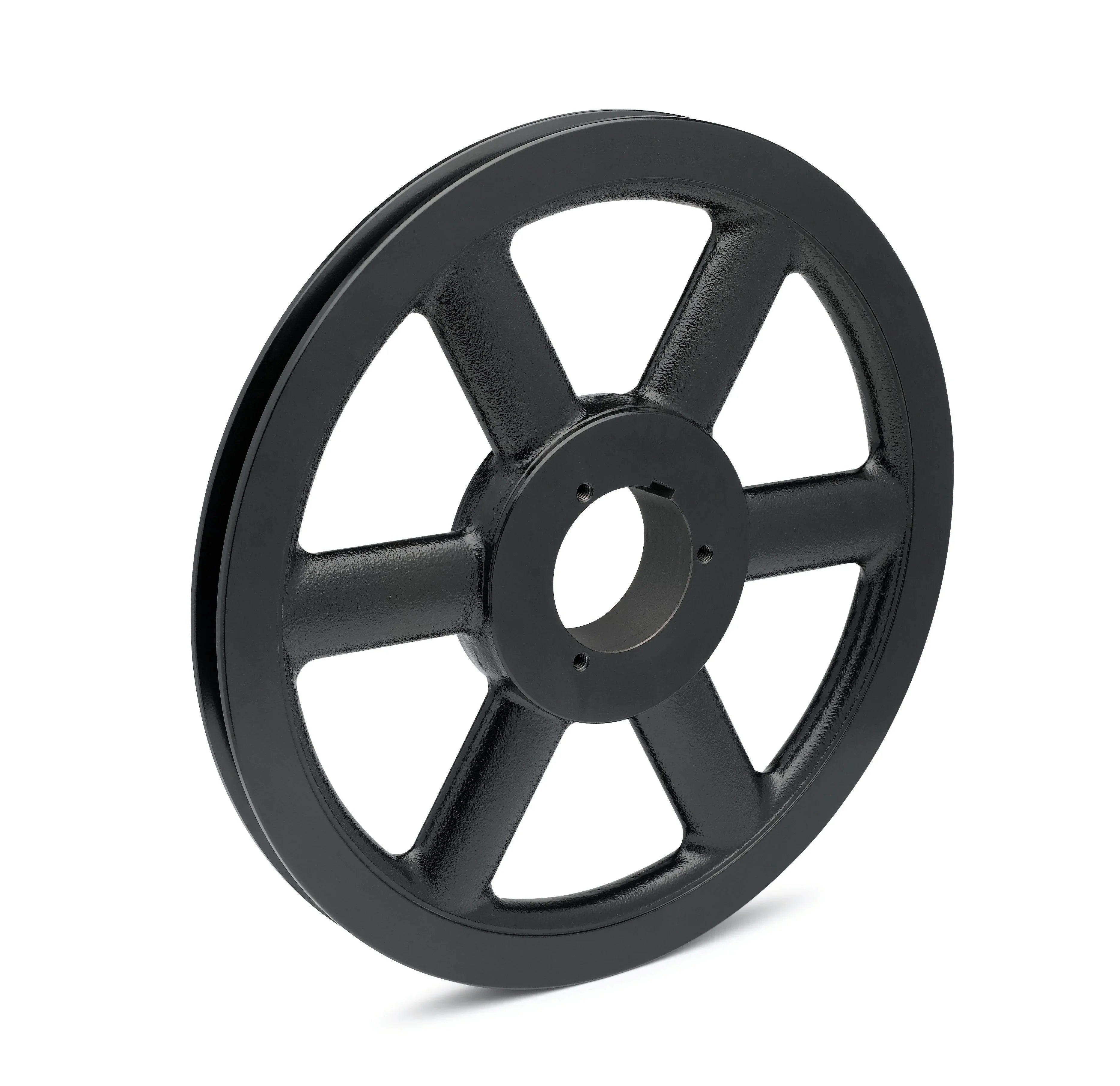

Image for Illustration purposes only. Actual product may vary.

For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

Email 616-647-4432

CAD Link	https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/split_taper/versa_v_sheaves.prj&varset={PN=469034},{CR=1B5V300-Q1},{OUTS=30.35},{DATUMA=29.67},{DATUMB=30.07},{PITCH=30.17},{H=1.125000},{TYPE=2A},{B=Q1},{WT=56.0},{F=1.00000},{L=2.1250},{E=0.375000}
Construction Type	Block
Datum Diameter	30.3500
Datum Diameter (Unit)	INCH
Material	Cast Iron
Number of Grooves	1.0000
Outside Diameter (Unit)	INCH
Outside Diameter	30.3500

469034 - Dodge - 1B5V300-Q1 SHEAVE

Technical Specifications
