Marathon Electric Close-Coupled Pump Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 184JP Frame, TEFC
Regular price
$0.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

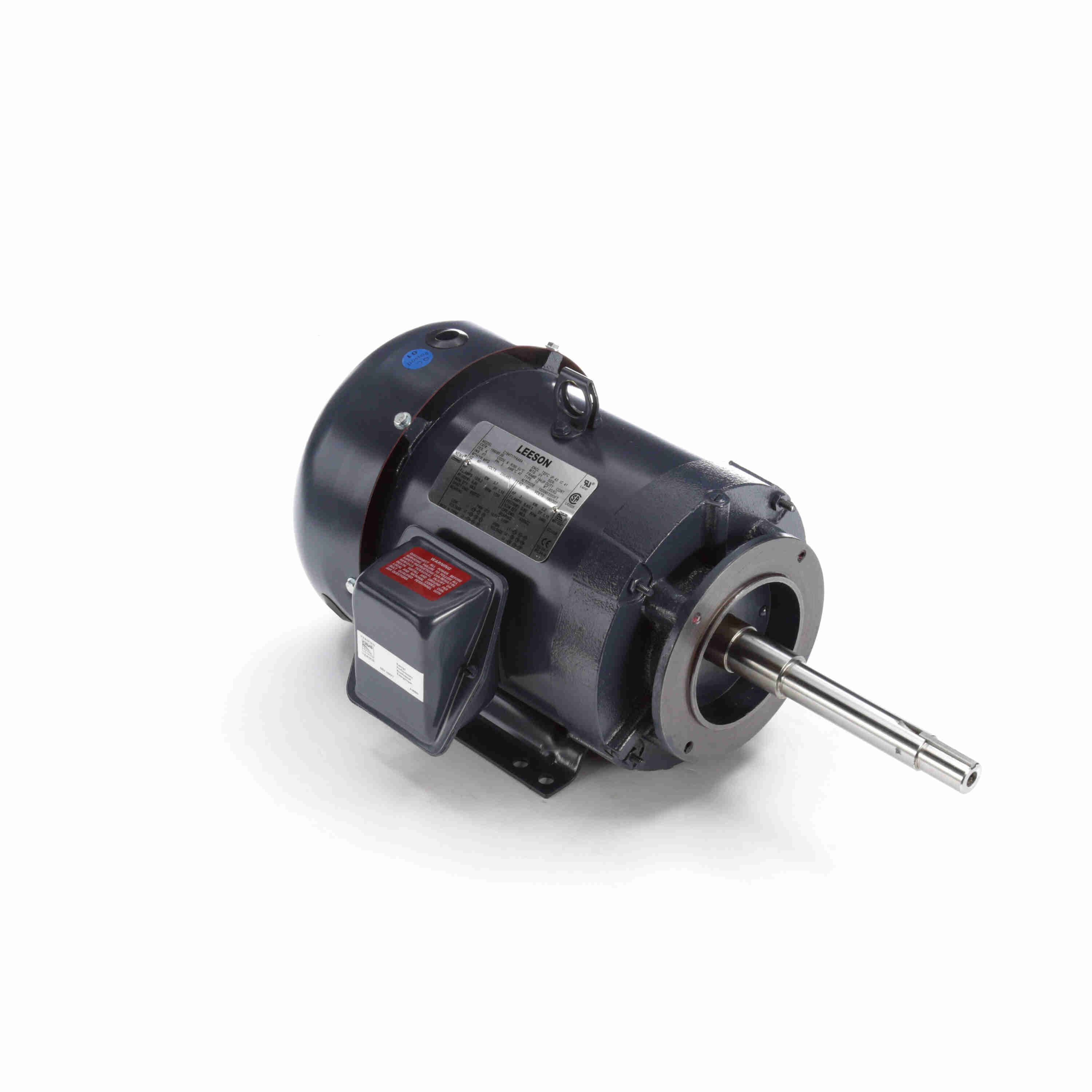

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Close-Coupled Pump Motor, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 184JP Frame, TEFC
Features
- 1.25 service factor
- Rolled steel construction
- Premium efficient
- Regreasable bearings
- UL recognized and CSA certified
- Class F Insulation
Specifications
| Performance & Electrical | |
| Power | 5 HP |
| Power (dual rating) | 5 & 3 HP |
| Power | 3.7 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 3530 RPM |
| Speed (dual) | 3530 & 2920 RPM |
| Full-load current | 12.0/6.0 A |
| Current (dual) | 12/6 & 8.6/4.3 A |
| Nominal efficiency | 88.5% |
| Power factor | 89% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | J |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | 1.98 Ω |
| Frame & Mechanical | |
| Frame | 184JP |
| Frame size | 184 |
| Frame suffix | JP |
| Frame material | Rolled Steel |
| Frame length | 6.73 in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 0.875 in |
| Shaft extension | 5.937 in |
| Shaft type | JP |
| C dimension | 20.05 in |
| Drive-end bearing | 6206 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308 |
| Outline drawing | SS620562 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 14.88 × 10.25 × 10.12 in |
| Weight | 95.00 lb |
| Identification | |
| Manufacturer part / model | 199094.00 |
| Catalog number | 199094.00 |
| UPC | 691720048771 |
| Country of origin | China |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
