231087 - Dodge - P4B-BZA-215
Regular price
$2,442.60 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

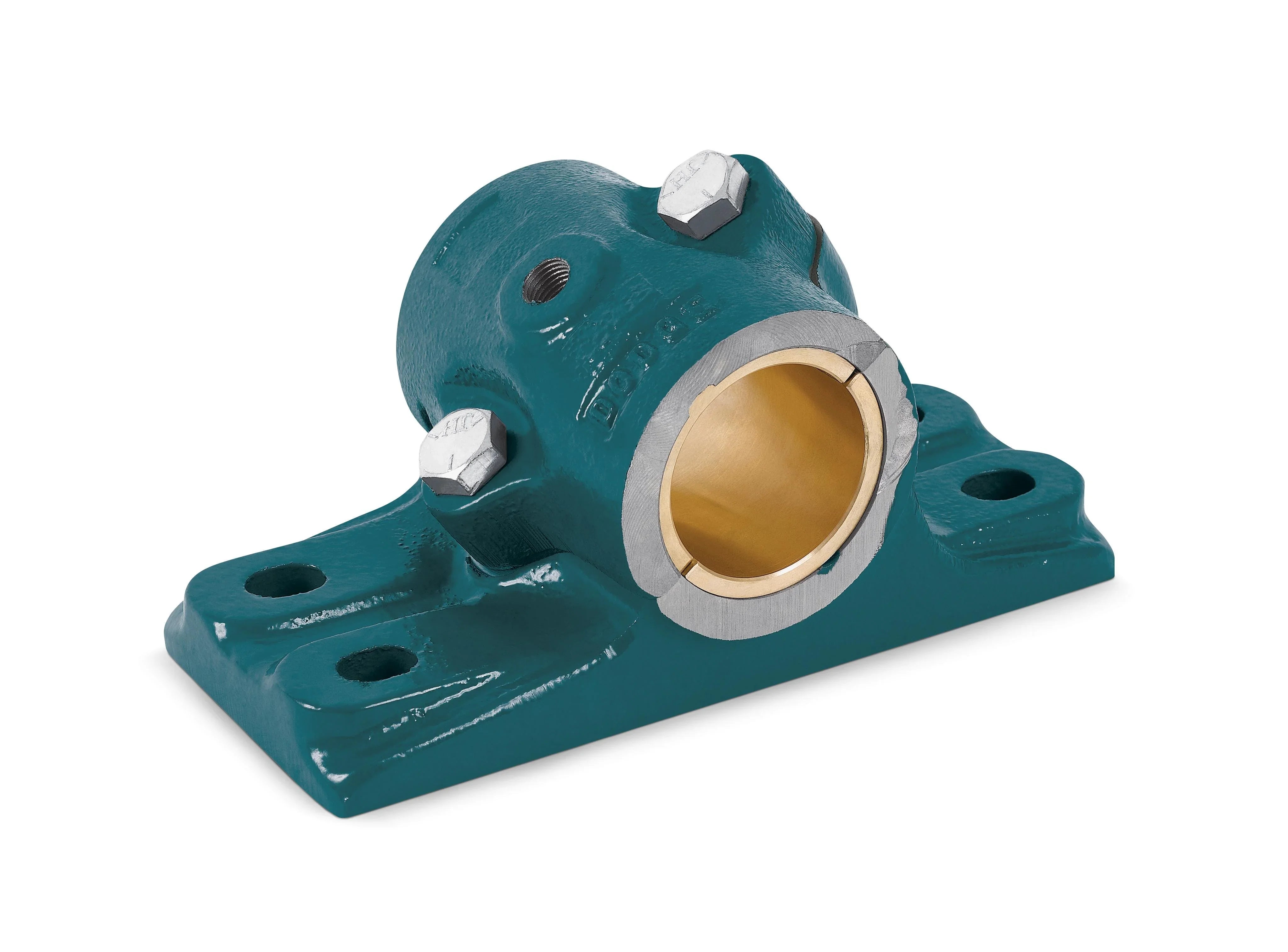

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
231087 - Dodge - P4B-BZA-215
P4B-BZA-215
Technical Specifications
| Base to Center Height | 3.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Journal |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.0630 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.4380 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.5000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 6.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/bronze_bushed_baz_bzr_bzsp/p2b_bza_bodi_asmtab.prj&varset={SS=2-15/16},{PN=231087},{DESCRIPTION=P4B-BZA-215},{WEIGHT=28},{UOF=HD-250},{A=6},{B=11},{C=4-1/2},{DMIN=8-7/16},{DMAX=9-1/16},{E=2-1/2},{F=5/8},{G=1},{H=1-3/8},{J=6-3/8},{M=3-1/4},{CBQ=2},{PT=3/8},{NR=1},{GS=2}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Bronze |
| Lubrication | Grease |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | LD-10,TS-100 |
