Marathon Electric Agricultural Motor, 10 HP, 1 Ph, 60 Hz, 230 V, 1800 & 1800 RPM, 215TVZ Frame, DPAO
Regular price
$2,889.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

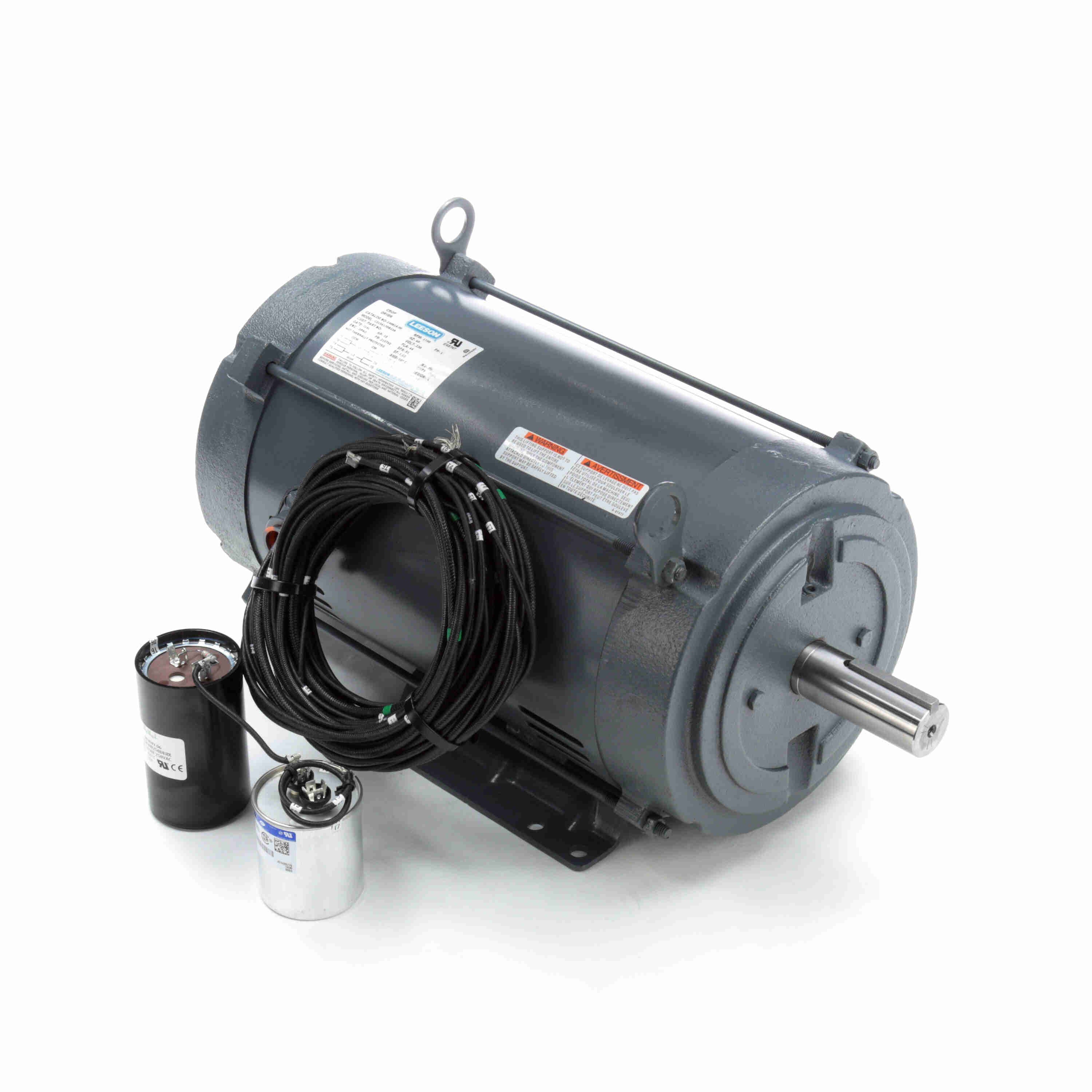

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Agricultural Motor, 10 HP, 1 Ph, 60 Hz, 230 V, 1800 & 1800 RPM, 215TVZ Frame, DPAO
Features
- Drip-proof air over designs
- Class H insulation for high ambient conditions
- 80 degree C ambient
- 120 inch leads
- Oversized double sealed bearings
- 1/2-20 tapped hole at end of shaft
Specifications
| Performance & Electrical | |
| Power | 10 HP |
| Power (dual rating) | 10 HP |
| Power | 7.5 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 1730 RPM |
| Speed (dual) | 1730 RPM |
| Full-load current | 44.0 A |
| Current (dual) | 44.0 A |
| Nominal efficiency | 82.5% |
| Power factor | 89% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | L |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Capacitor Start Capacitor Run |
| Starting method | Across The Line |
| Main winding resistance | 0 Ω |
| Frame & Mechanical | |
| Frame | 215TVZ |
| Frame size | 215 |
| Frame suffix | TVZ |
| Frame material | Rolled Steel |
| Frame length | 12.4 in |
| Enclosure | Drip Proof Air Over |
| IP rating | IP22 |
| Insulation class | H |
| Mounting | Rigid Base |
| Assembly / conduit box | F1 ONLY |
| Orientation | Shaft Up |
| Rotation | Selective Counterclockwise |
| Max ambient | 80°C |
| Shaft & Bearings | |
| Shaft diameter | 1.375 in |
| Shaft extension | 3.38 in |
| Shaft type | Single Special Extension |
| C dimension | 20.65 in |
| Drive-end bearing | 6307 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE9048MF |
| Outline drawing | SS89636LE-1240 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.19 × 16.50 × 14.00 in |
| Weight | 150.00 lb |
| Identification | |
| Manufacturer part / model | 140816.00 |
| Catalog number | 140816.00 |
| UPC | 691720053669 |
| Country of origin | United States of America |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
