You order a new belt. It slips within a week. So you order another one.
That pattern is the most reliable sign the belt isn't actually the problem. V-belt slippage on a conveyor drive is almost always a mechanical condition issue: worn sheave grooves, incorrect tension, or a cross-section that was never right for the load. The belt fails visibly. Everything upstream of the belt caused it.
Slippage and Creep Are Not the Same Thing
There's a distinction most maintenance teams never make: elastic creep and slippage are two different failure modes with different causes.
Elastic creep is normal. A V-belt transmits power by wrapping around a rotating sheave, and under load the tight side elongates slightly while the slack side shortens. That difference causes a small continuous speed differential, typically under 2% of belt speed. It's built into every belt drive design. You can't eliminate it, and you shouldn't try.
Slippage is different. When a belt visibly slips, you've lost effective contact between the belt sidewall and the sheave groove. The belt runs hot. You smell burning rubber. Speed drops under load. That's not creep. That's a drive that can't transmit the required torque.
Sound familiar? The fix is almost never a new belt on its own.

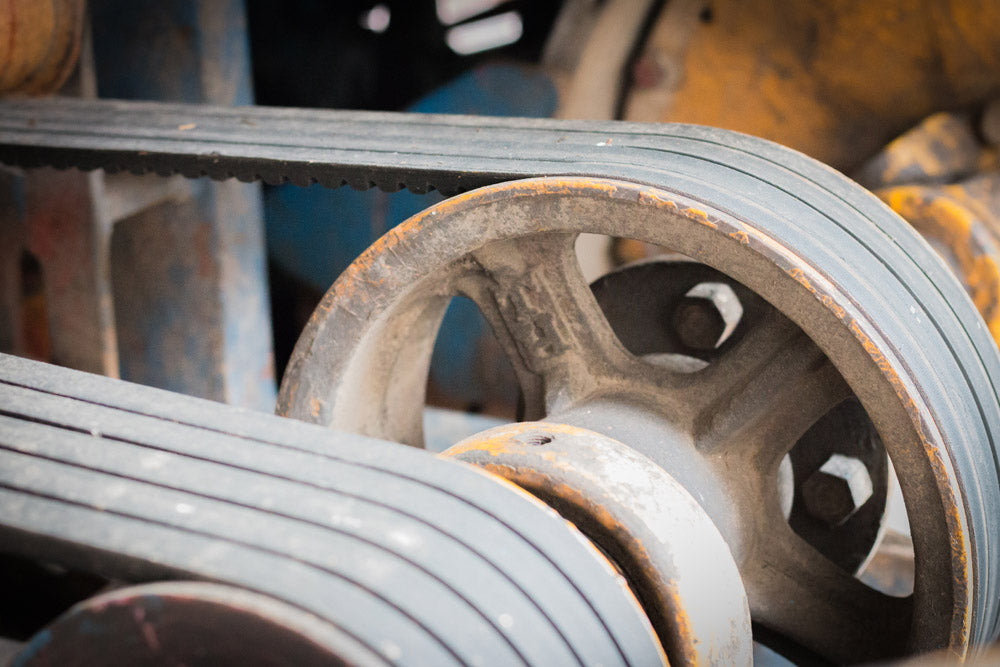

Worn Sheave Grooves Are the Most Common Root Cause
A V-belt transmits power through wedging action. Under load, the belt tightens into the groove, which increases the normal force on the sidewalls and generates the friction needed to turn the load. When the groove wears, the bottom of the V opens up. The belt bottoms out in the groove instead of wedging into it.
Once the belt is riding the groove bottom, you've lost most of the wedging action. More tension won't fix it.
Check groove wear with a groove gauge, not a visual inspection. Sheave grooves that look fine to the eye are often 1/16 to 3/32 inch undersize, which is enough to destroy wedging efficiency. If you're working on a Dodge QD-bushed sheave or taper-lock sheave, that groove wear is also a cue to inspect the bushing connection while the sheave is off. Replacing the belt without replacing the sheave is replacing the wrong part. Browse the Dodge QD sheaves for direct replacements across standard bore and frame sizes.
How to Check V-Belt Tension Without Guessing
Wrong tension is the second most common cause. And both under- and over-tensioning cause slippage, just through different paths.
Under-tensioning lets the belt slip directly. Over-tensioning increases belt fatigue, heats the bearings on the motor and driven shaft, and can stretch the belt past its elastic limit, making effective tensioning impossible afterward.
The correct method is deflection measurement on the slack-side span. Target about 1/64 inch of deflection per inch of span length, measured at the recommended strand force for your belt cross-section. For a Dodge narrow belt in a standard conveyor drive with an 18 to 24 inch span, that's roughly 5/16 to 3/8 inch of deflection at the published strand force. MPTA published tensioning standards cover recommended strand forces by cross-section and are the same reference most belt manufacturers use for their own tensioning tables. Use a tension gauge or a sonic belt tension meter. "Feels tight" is not a calibration method.
Re-tension after the first 50 to 100 hours on any new installation. Initial belt stretch is real and it's significant. Skipping that step is why new belts often underperform in the first month.
When the Cross-Section Is the Real Problem
Sometimes the drive was never sized correctly. It ran adequately when the sheave and belt were new, but as both wore, the torque margin ran out. The tell: slippage under full load that doesn't resolve after tensioning and sheave inspection.
The fix isn't more tension. It's redesigning the drive for the actual load.
V-belt cross-section selection starts with horsepower, shaft speed, and service factor. Narrow-section belts (3V, 5V, 8V) transmit more horsepower per strand than classical sections (A, B, C, D) in the same drive width. But if the original design used three classical B-section belts and someone replaced one with a different cross-section, you've introduced load imbalance that destroys the remaining belts faster than the original failure mode did.
Always run matched sets on multi-belt drives. All belts in a set should come from the same manufacturing lot and have the same effective length. Mixing used and new belts, or belts from different lots, causes unequal load sharing that overloads shorter belts and lets longer ones go slack. Dodge narrow cogged belts handle heat and flex fatigue better than wrapped belts in conveyor drives that have been running hot. Check the Dodge narrow belts for 3V, 5V, and 8V cross-sections used in most conveyor drive setups.
If you've addressed sheave condition, tension, and cross-section and the drive still slips under full load, the problem may be belt wrap angle on the small sheave. Wrap angle below 120 degrees drops friction capacity enough to cause slippage on a correctly tensioned drive. The fix is a larger sheave ratio spread or an idler on the slack side. Worth knowing before you order a fourth belt.
For drives where slippage keeps recurring and you're weighing a redesign to synchronous drive, this V-belt vs. synchronous belt comparison covers the trade-offs in detail. And if your conveyor is showing both drive slippage and tracking problems, the issues are often related: the conveyor belt tracking troubleshooting guide covers the frame and pulley conditions that cause both at once.
Frequently Asked Questions
What causes v-belt slipping on a conveyor drive?
V-belt slippage on a conveyor drive is almost always caused by worn sheave grooves, incorrect belt tension, or a belt cross-section undersized for the actual load. Worn grooves eliminate the wedging action the belt depends on to transmit torque. Replacing the belt without inspecting the sheave grooves will not resolve the problem.
How do I know if my conveyor sheave grooves are worn?
Use a groove gauge to check groove profile, not a visual inspection. Sheave grooves worn 1/16 to 3/32 inch undersize may look acceptable on visual check but are enough to cause slippage. If the belt is riding near the groove bottom instead of making full sidewall contact, the sheave needs to be replaced before a new belt will run correctly.
How tight should a V-belt be on a conveyor drive?
Target approximately 1/64 inch of deflection per inch of span length on the slack-side span, measured at the recommended strand force for your belt's cross-section. Check the belt manufacturer's tensioning specification for your specific belt. Retension after the first 50 to 100 hours on any new or newly re-tensioned installation.
Can you mix old and new V-belts on a multi-belt conveyor drive?
No. Multi-belt drives require matched sets where all belts come from the same manufacturing lot and have the same effective length. Mixing used and new belts causes unequal load sharing that overloads shorter belts and lets longer ones go slack, accelerating failures across the whole set.
What's the difference between a classical and narrow V-belt for conveyor drives?
Narrow section belts (3V, 5V, 8V) transmit more horsepower per strand than classical sections (A, B, C, D) in the same drive width. They're the standard choice for conveyor drive upgrades and high power density applications. Don't substitute cross-sections without verifying sheave groove angle compatibility, since classical and narrow belts require different groove profiles.
