Choose the wrong housing and the bearing runs fine, until it doesn't. Most housing failures trace back to a 30-second spec decision that nobody revisited until the second replacement.

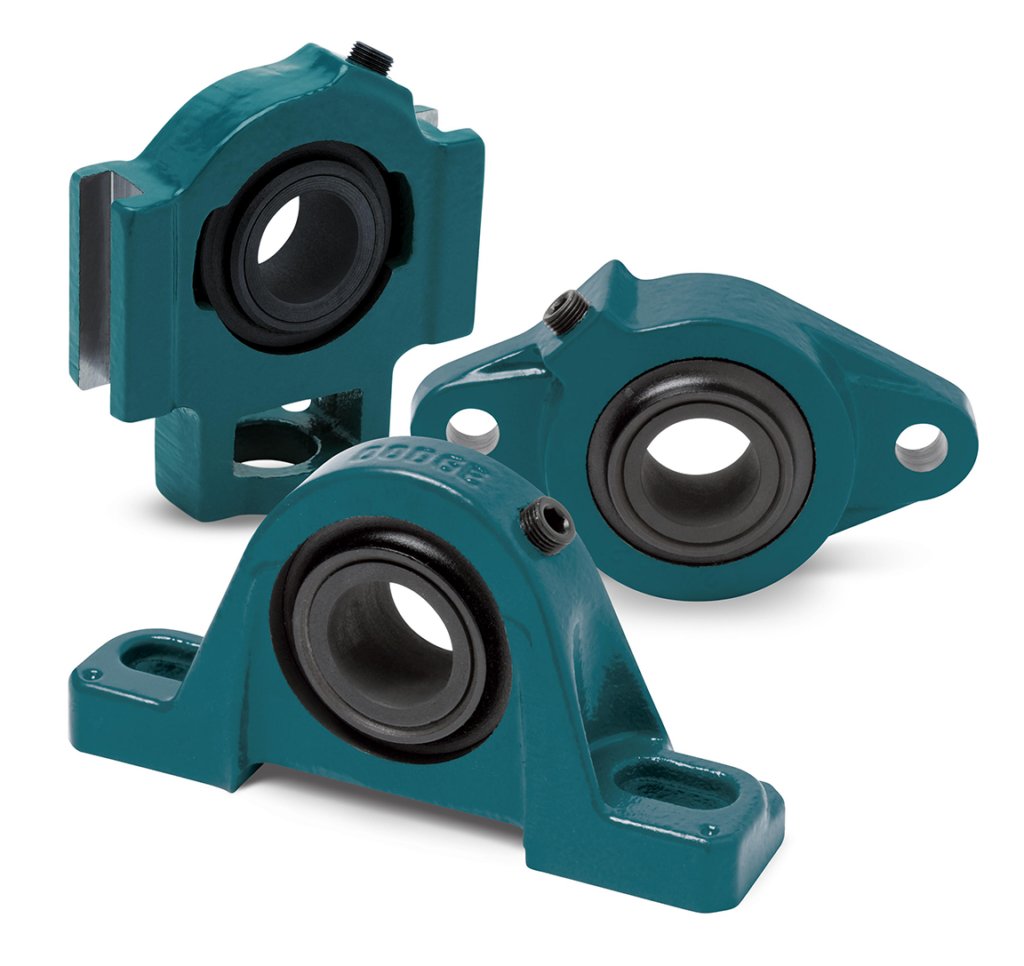

Pillow block vs. flange bearing comes down to four things: load direction, shaft orientation, mounting surface, and whether you need axial adjustment. Get any of them wrong and you've specified yourself into early failure. Here's how to work through each one.
Load Direction Is the First Thing to Settle
Pillow block bearings are designed for radial loads. That's the load perpendicular to the shaft: what most conveyor head pulleys, fan shafts, and drive shafts produce in standard horizontal service.
Flange bearings handle radial loads too, but they're better suited when axial loads are part of the picture. A shaft that sees thrust from a fan impeller, a pump impeller, or an angled conveyor needs better axial constraint. That's where a four-bolt flanged block earns its place.
Quick check: does anything push or pull the shaft along its axis during operation? If yes, lean toward flanged.
Shaft Orientation Rules Out One Option Immediately
Pillow blocks bolt to a flat horizontal surface. The shaft runs parallel to the mounting surface, elevated above it. That's the right answer for horizontal conveyors, drive shafts, and most standard equipment.
Flange bearings bolt to a flat vertical or angled surface. The shaft runs perpendicular to the mounting surface. Think of a fan bolted to a wall, or a drive shaft entering through a gearbox mounting plate.
If the mounting surface is vertical, you need a flanged block. A pillow block on a vertical surface isn't a workaround. It's a failure waiting to happen.
The 4-Bolt vs. 2-Bolt Decision Is More Important Than It Looks
Two-bolt flanged units work fine in light-to-moderate load applications. But they concentrate mounting stress at two points, which becomes a problem under shock loads or sustained heavy radial loads.
A four-bolt flanged block distributes the load over a larger footprint. For applications above 1,750 RPM, above 50% of the housing's rated radial load, or in environments with vibration or shock loading, four-bolt is the correct spec. Regal Rexnord's Dodge mounted bearing line separates these clearly in their catalog: the 4B-SC series covers four-bolt flanged units in standard bore sizes from 1/2 inch to 3 inches.
Sound familiar? A plant installs a two-bolt unit because it fits the existing bolt pattern, runs it in a moderately loaded application, and replaces it every 14 months. Switch to four-bolt and the problem disappears.
When Neither a Pillow Block Nor a Flanged Unit Is the Right Call
Take-up bearing units combine a pillow block style housing with a sliding base that allows axial shaft positioning. They're standard on conveyor tail pulleys for one reason: belt tension requires periodic adjustment and a fixed housing can't provide it.
If you're replacing bearings on a conveyor tail pulley and a standard pillow block keeps showing up on the order, check whether a take-up unit was in the original design. Running a fixed housing where a take-up belongs means belt tension is never quite right. That's how you end up with premature belt edge wear and recurring bearing failures in the same quarter.
And if the bearing is failing before the housing type is even questioned, it's worth working through why bearings fail early before the next replacement goes in. Lubrication intervals are another common factor covered in the relubrication interval guide.
Browse Dodge pillow blocks, flanged units, and take-up frames to compare housing types side by side.
Frequently Asked Questions
What is the difference between a pillow block bearing and a flange bearing?
A pillow block bearing mounts to a flat horizontal surface with the shaft running parallel to it. A flange bearing mounts to a flat vertical or angled surface with the shaft running perpendicular. Both can use the same internal bearing element. The difference is in the housing orientation and where it bolts.
When should I use a pillow block vs flange bearing on a conveyor?
Use a pillow block on horizontal conveyor head and intermediate shafts where the shaft runs parallel to the mounting frame. Use a flanged block where the shaft mounts perpendicular to a wall, plate, or vertical equipment face.
What is the difference between a 2-bolt and 4-bolt flange bearing?
A 2-bolt flange bearing uses two mounting bolts and handles light-to-moderate loads. A 4-bolt flange bearing distributes load across a larger four-point footprint and is the correct spec for applications above 1,750 RPM, heavy radial loads, or environments with shock or vibration. The 4-bolt unit significantly outlasts a 2-bolt in demanding applications.
Can I replace a pillow block bearing with a flange bearing?
You can if the bore size matches, but the mounting holes and surface orientation are different. A flanged block requires a vertical mounting surface; a pillow block requires a horizontal one. Substituting one for the other without modifying the mounting setup causes misalignment and early failure.
What is a take-up bearing unit and when do I need one?
A take-up unit is a pillow block style housing mounted on a sliding frame that allows axial shaft adjustment. They're used wherever belt tension requires periodic adjustment, primarily conveyor tail pulleys. If you're replacing a tail pulley bearing with a standard pillow block and there's no way to tension the belt, a take-up unit is the correct spec.
