Most maintenance managers know motor replacement is time-sensitive. Far fewer realize that ordering the "equivalent" motor in the wrong frame standard is one of the more expensive mistakes you can make during a line stoppage.
NEMA and IEC motors are not interchangeable without adapter kits, shaft modifications, or conduit box repositioning. Get this wrong and you've traded a same-day swap for a two-week delay.

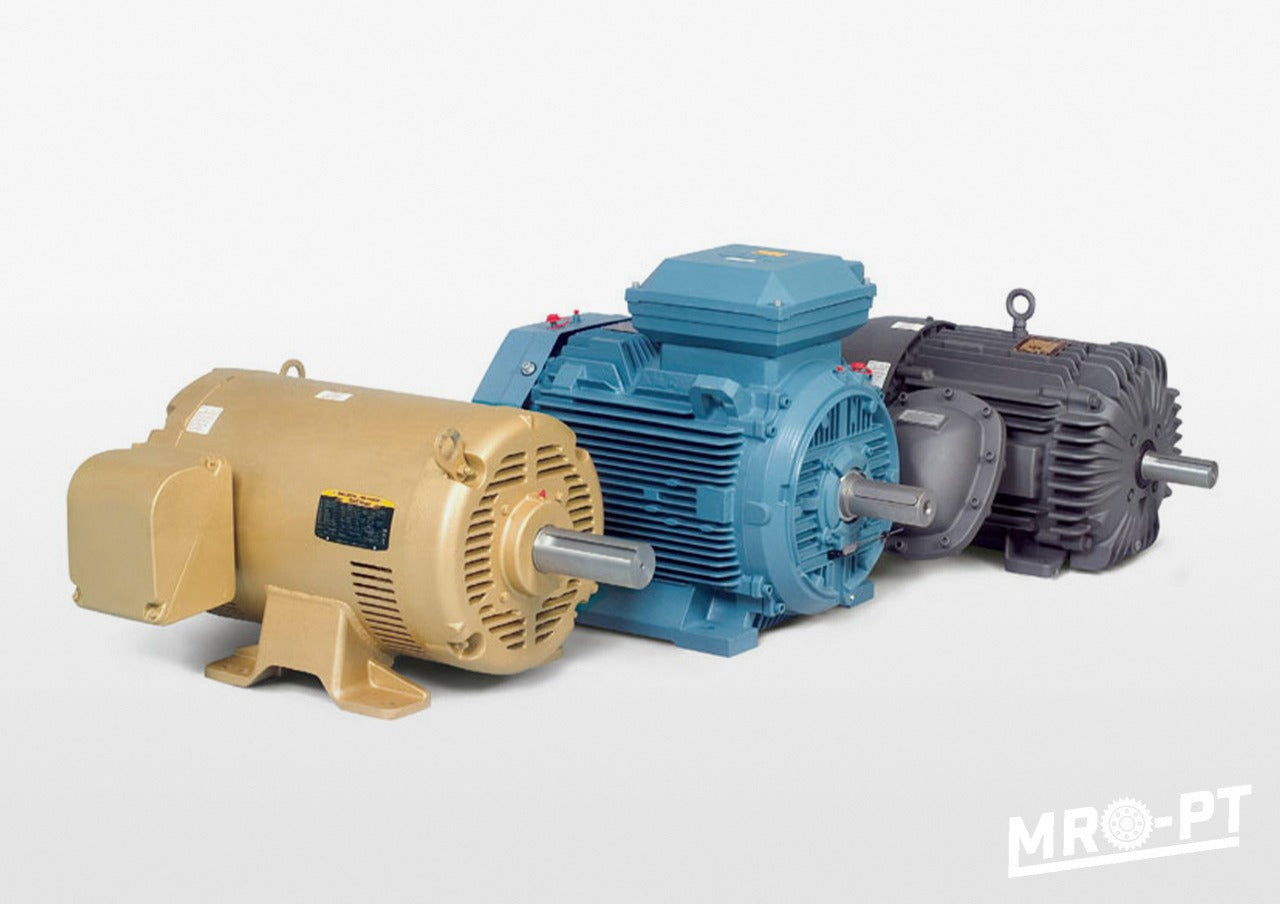

Why NEMA and IEC Motors Don't Just Bolt In
The two standards were developed independently, on different continents, and they differ in ways that aren't obvious from a nameplate comparison.
NEMA (National Electrical Manufacturers Association) is the North American standard. Frame dimensions, shaft diameters, and mounting bolt patterns are defined in inches. IEC (International Electrotechnical Commission) is the metric standard used across Europe, Asia, and most OEM equipment made outside North America. You can find the governing motor specification in NEMA MG 1, which covers everything from frame dimensions to insulation class ratings.
The problem shows up when European or Asian-built machinery gets installed in a North American plant. The motor is IEC-framed. Your distributor's shelf stock is NEMA. Both might be 15 HP, both might be 1,750 RPM, and they still won't mount the same way.
The Frame Dimensions That Create the Real Problems
Shaft height is the dimension that causes the most field headaches. On a NEMA 215T frame, the shaft centerline height is 5.25 inches. The IEC 132 frame equivalent puts it at 5.20 inches. That 0.05-inch difference sounds negligible until you're shimming a baseplate under load.
Shaft diameter is a separate issue. A NEMA 215T has a 1.375-inch shaft. The IEC 132 frame uses a 38mm shaft, which works out to 1.496 inches. Close, but not close enough. Standard couplings won't bridge that gap without a bore modification or a custom insert.
Mounting bolt patterns don't translate cleanly either. NEMA uses a 4-bolt rectangular foot pattern dimensioned in inches. IEC uses metric spacing that rarely lines up with an existing NEMA footprint. On a new installation, you drill new holes. On a direct motor swap in a running plant, you have to decide how much time you want to spend on it.
And then there's the conduit box. NEMA puts it on the right side by default. IEC can be rotated. If your existing conduit run comes in from a specific direction, the IEC conduit box position might require re-routing the electrical drop before you can even make the swap.
What to Check Before You Order
Sound familiar? The frame mismatch situation is common enough that any competent distributor has seen it more than once. Here's what to confirm before you commit to an order:
- Read the full nameplate. You want frame designation (like 215T or 132M), HP or kW, voltage, RPM, enclosure type, and service factor. The frame designation alone tells you which standard you're working with.
- Measure the shaft. Don't rely on the nameplate if the motor has been previously replaced. Measure shaft diameter with calipers and confirm shaft length from the mounting face.
- Photograph the baseplate. Take photos of the existing bolt pattern before you pull the motor. Dimension the hole spacing so you can confirm it matches the replacement frame before anything ships.
- Identify the coupling. Note the coupling type and current bore size. If you're crossing standards, this is the part most likely to need modification.
If you're replacing motors on OEM equipment that came in from outside North America, Baldor motors from Regal Rexnord are available in NEMA frames with IEC adapter kits as a package, which is faster than sourcing the adapter hardware separately.
We've seen this exact scenario stretch a replacement from 2 days to 11 days, twice, at the same plant, before anyone mapped the frame standards on the critical drives. Now they keep a laminated spec card on the maintenance board for every motor on the line.
When an Adapter Kit Actually Works
Adapter kits aren't ideal, but they're a legitimate solution when you need to cross standards and can't wait on a custom-framed motor.
A shaft adapter bushing handles the diameter mismatch between NEMA and IEC shafts. Mounting adapters let you bolt an IEC frame into a NEMA footprint. These add cost and lead time. But they're considerably faster than re-machining a baseplate or waiting on a special-order frame.
The tradeoff is serviceability. Every adapter in the drivetrain is another thing to inspect. For a motor on a critical production line, the cleaner solution is sourcing the right frame from the start, even if it takes an extra day.
If you've dealt with bearing failures shortly after a motor replacement, it's worth checking whether coupling alignment was confirmed after the swap. A frame mismatch is a common explanation for a bearing that fails six weeks post-installation. Our breakdown of why bearings fail early covers the most common root causes, including the alignment issues that often follow a bad swap.
For the belt drive side of the same replacement, the same selection logic applies. If you're deciding between V-belt and synchronous drive on the replacement motor, the V-belt vs. synchronous belt comparison covers the cost-of-ownership breakdown worth reading before you commit.
Frequently Asked Questions
What is the difference between NEMA and IEC motors in industrial applications?
NEMA (National Electrical Manufacturers Association) is the North American motor standard, with frame dimensions specified in inches. IEC (International Electrotechnical Commission) is the metric global standard used on most European and Asian OEM equipment. The two differ in shaft height, shaft diameter, mounting bolt pattern, and conduit box positioning, making direct substitution impractical without adapter hardware.
Can you replace a NEMA motor with an IEC motor?
You can, but not without addressing the dimensional differences. Shaft diameters, mounting bolt patterns, and shaft heights all differ between NEMA and IEC frames. In most direct-swap situations, you'll need a shaft adapter bushing, a mounting adapter plate, or both. Confirm all dimensions before ordering to avoid delays.
How do I know if my motor is NEMA or IEC?
Check the frame designation on the motor nameplate. NEMA frames use alphanumeric designations like 143T, 213T, or 256T. IEC frames use numeric designations like 80, 100, 132, or 160. If the nameplate shows kW instead of HP, the motor is almost certainly IEC-framed.
What does NEMA frame 215T mean?
The "21" in 215T indicates a shaft centerline height of 5.25 inches (divide 21 by 4). The "5" identifies a secondary mounting dimension. The "T" designates a shaft diameter of 1.375 inches, standard to NEMA T-frame motors introduced after 1964.
Do NEMA and IEC motors have the same HP and RPM ratings?
Power output and speed can match closely, but the dimensional standards still differ. A NEMA 15 HP motor and an IEC 11 kW motor are roughly equivalent electrically and can still require adapter hardware for a direct mechanical swap. Never assume electrical equivalence means dimensional equivalence.
