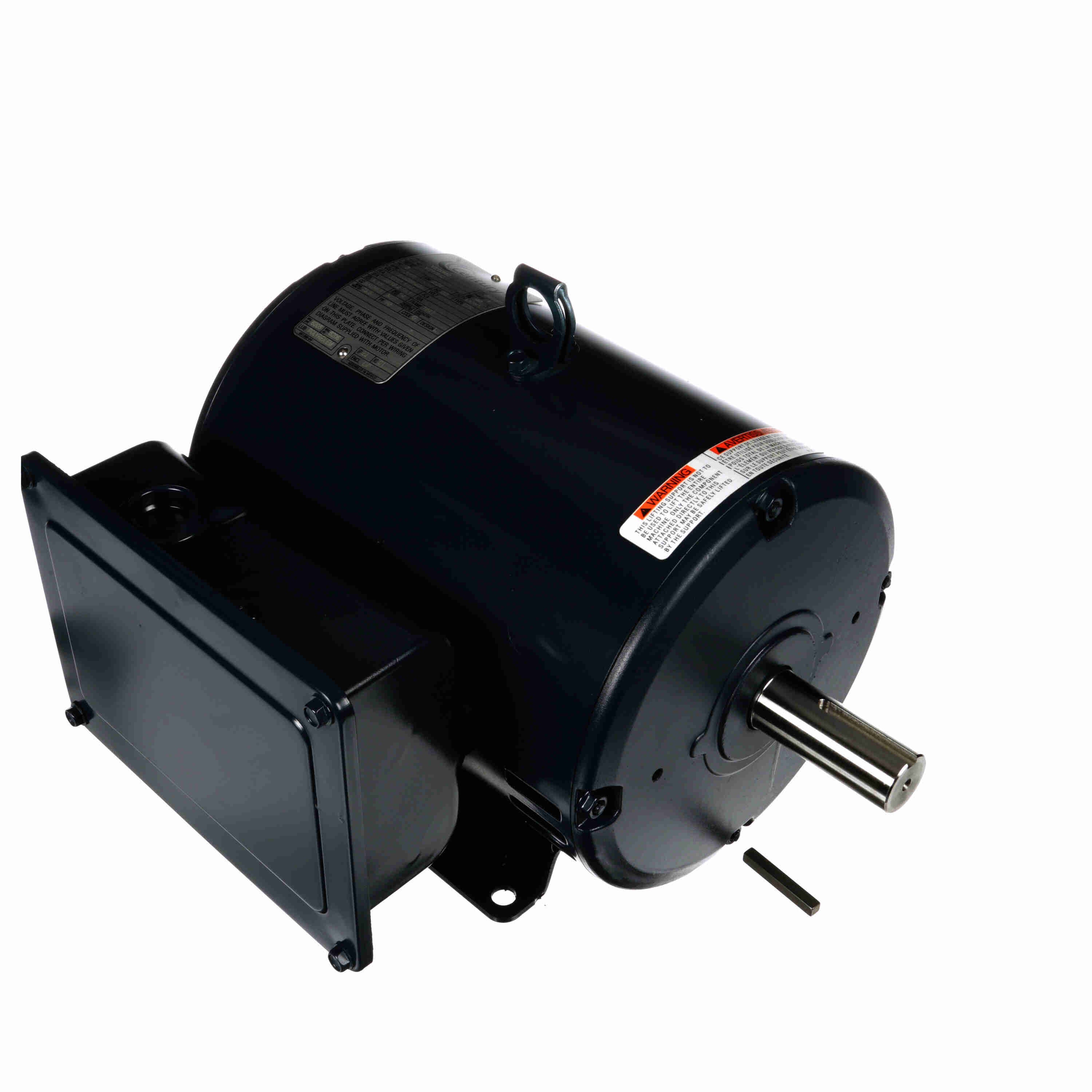

Marathon Electric General Purpose Motor, 3 HP, 1 Ph, 60 Hz, 115/208-230 V, 3600 RPM, 182T Frame, DP
Regular price
$773.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 3 HP, 1 Ph, 60 Hz, 115/208-230 V, 3600 RPM, 182T Frame, DP
Features
- Heavy gauge steel frame and base
Specifications
| Performance & Electrical | |
| Power | 3 HP |
| Power (dual rating) | 3 HP |
| Power | 2.2 kW |
| Voltage | 115/208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 3500 RPM |
| Speed (dual) | 3500 RPM |
| Current (dual) | 32/17.1-16.1 A |
| Nominal efficiency | 75.5% |
| Power factor | 80% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | L |
| KVA code | G |
| Duty | CONTINUOUS |
| Electrical type | Capacitor Start |
| Starting method | ACROSS THE LINE |
| Main winding resistance | .342 Ω |
| Frame & Mechanical | |
| Frame | 182T |
| Frame size | 182 |
| Frame suffix | T |
| Frame material | ROLLED STEEL |
| Enclosure | DP |
| IP rating | IP22 |
| Insulation class | F4 |
| Mounting | RIGID |
| Assembly / conduit box | F1 ONLY |
| Orientation | HORIZONTAL |
| Rotation | SELECTIVE CCW |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft type | T |
| C dimension | 14.21 in |
| Drive-end bearing | 6206 |
| Drive-end bearing type | BALL |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | BALL |
| Overload protection | NONE |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| Connection drawing | 005062.01CY |
| Outline drawing | 035655CY-1000 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 17.94 × 13.06 × 12.88 in |
| Weight | 81.00 lb |
| Identification | |
| Manufacturer part / model | V210M2 |
| Catalog number | V210M2 |
| UPC | 786674067241 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.40.6040 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
