244382 - Dodge - TXT405AS FLANGE MOUNT REDUCER
Regular price
$4,950.01 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

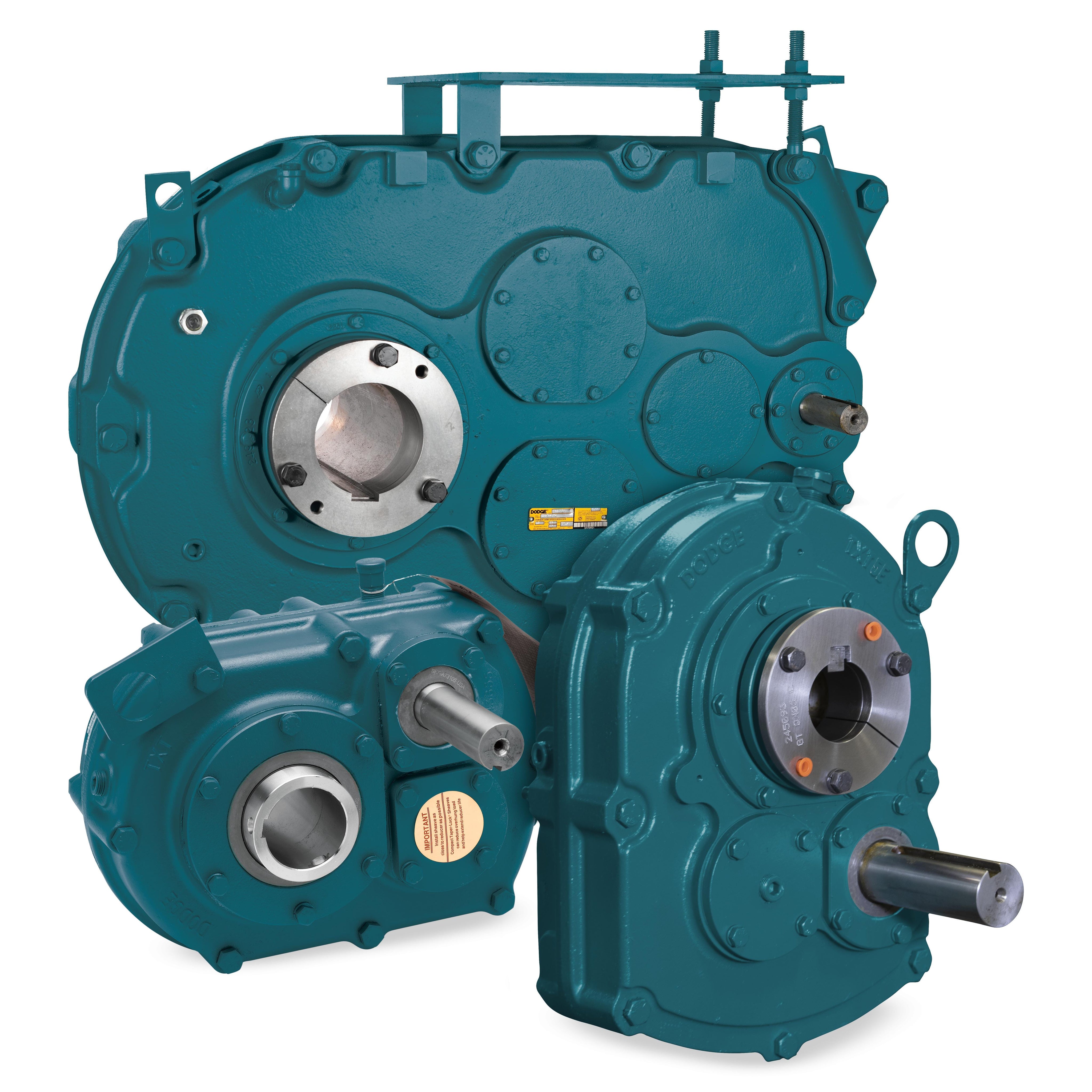

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
This Dodge MagnaGear reducer, identified by SKU 449824L, is a heavy-duty, power-dense gearbox engineered for the most demanding industrial applications. As a Size 700 unit, it features a robust, mono-block cast iron housing and a right-angle solid shaft (HPS) output, making it ideal for a variety of heavy-duty drive configurations. The reducer contains a high-precision double-stage planetary/helical gear train that delivers an 11.2:1 nominal ratio. For superior protection in harsh environments, it includes a premium tandem seal system with HNBR oil seals. This gearbox is the ultimate solution for high-horsepower, high-torque applications where reliability and a low total cost of ownership are paramount.
TXT405AS FLANGE MOUNT REDUCER
Technical Specifications
| AGMA Size | 207 |
| Bore Length Output | 8.2200 |
| Bore Length Output (Unit) | INCH |
| Case Size | 4 |
| Depth | 12.5400 |
| Depth (Unit) | INCH |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 1.9375 |
| Input Shaft Diameter (Unit) | INCH |
| Maximum Speed Input | 2260 |
| Maximum Speed Input (Unit) | RPM |
| Output Style | Hollow Bore |
| Reduction Type | Single Stage |
| Seal Type | Single-Lip Contact |
| Sheave Diameter Minimum | 7.5000 |
| Sheave Diameter Minimum (Unit) | INCH |
| Actual Ratio | 5.65 |
| Nominal Ratio | 5 |
