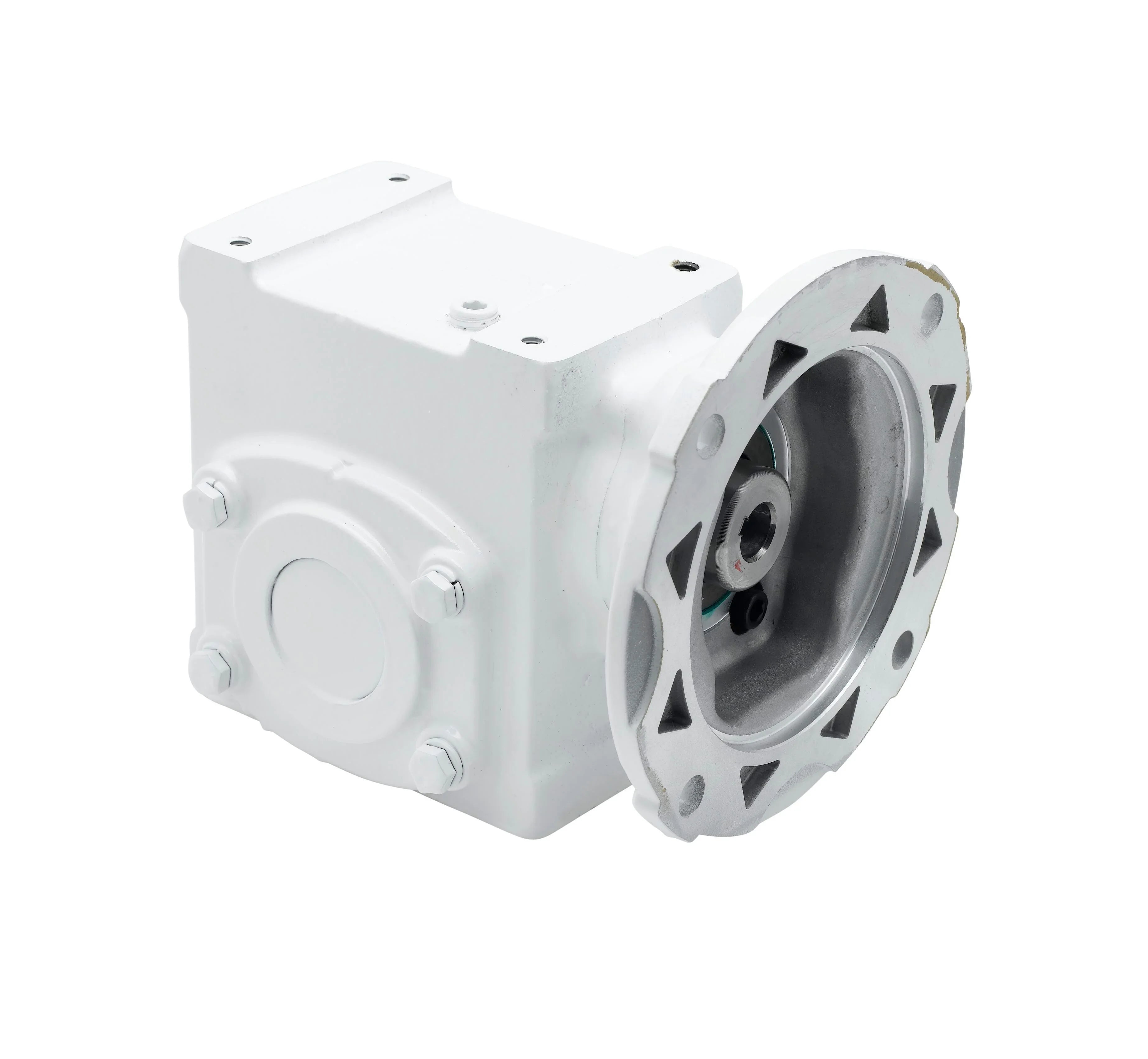

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TIGEAR-2 SPEED REDUCER EZ-KLEEN
| Specifications | |
|---|---|
| Base to Output Center Height | 2.5 in |
| Case Size | 23 |
| Center Distance | 2.31 in |
| Center to End of Shaft Distance | 5.14 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 4.96 HP |
| Horsepower Rating Output | 4.57 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Motor Connection | Quill |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 5 in |
| Mounting Bolt Pattern Width | 2.88 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 5.46 in |
| Output Shaft Location | Right |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 1.125 in |
| Output Shaft Length | 2.18 in |
| Overhung Load | 1520 lbf |
| Paint Type | White Epoxy |
| Rated Torque Output | 1234 in-lb |
| Seal Type | Two-Piece Harsh Duty |
| Suitable For Washdown | Yes |
| Thermal Horsepower Rating | 8.75 HP |
| Actual Ratio | 7.5 |
| Nominal Ratio | 7 |
