Marathon Electric General Purpose Motor, 1.5 HP, 3 Ph, 60 Hz, 575 V, 1800 RPM, 145T Frame, TEFC
Regular price
$1,162.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

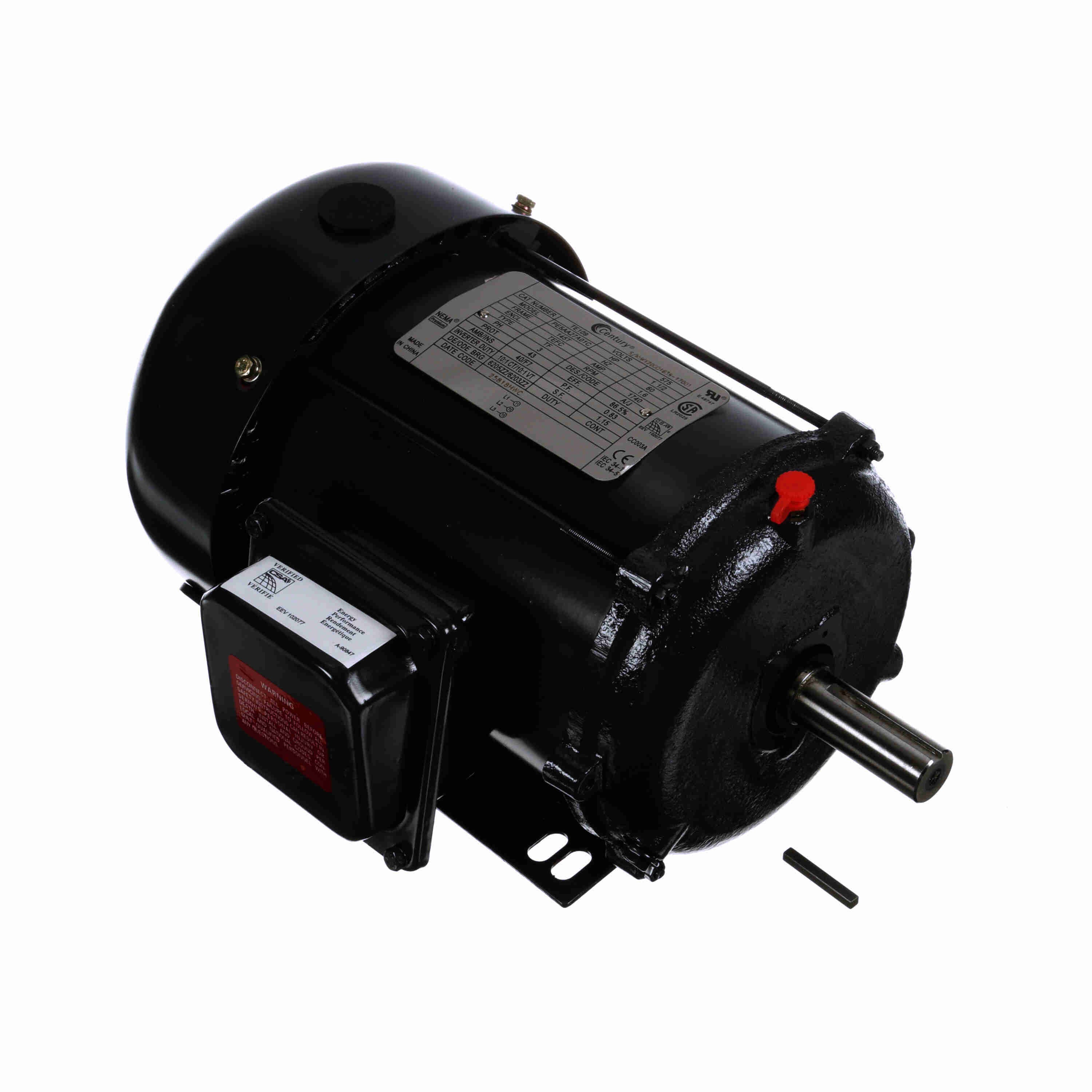

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
General Purpose Motor, 1.5 HP, 3 Ph, 60 Hz, 575 V, 1800 RPM, 145T Frame, TEFC
Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2126
- Inverter duty 10:1 variable torque and 10:1 constant torque
- 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
- Standard assembly F1, reversible to F2 assembly
Specifications
| Performance & Electrical | |
| Power | 1.50 HP |
| Power (dual rating) | 1.5 HP |
| Power | 1.1 kW |
| Voltage | 575 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1740 RPM |
| Speed (dual) | 1740 RPM |
| Current (dual) | 1.56 A |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| Duty | Continuous |
| Electrical type | POLYPHASE |
| Starting method | Across The Line |
| Frame & Mechanical | |
| Frame | 145T |
| Frame size | 145 |
| Frame suffix | T |
| Frame material | Rolled Steel |
| Frame length | 6.75 in |
| Enclosure | Totally Enclosed Fan Cooled |
| Insulation class | F |
| Mounting | Rigid Base |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 0.875 in |
| Shaft extension | 2.25 in |
| Shaft type | Keyed |
| C dimension | 14.20 in |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | A-EE7300 |
| Outline drawing | SS620612 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 15.97 × 11.86 × 9.85 in |
| Weight | 51.00 lb |
| Identification | |
| Manufacturer part / model | TE109 |
| Catalog number | TE109 |
| UPC | 786674063953 |
| Country of origin | China |
| HTS / tariff code | 8501.52.4000 |
| Substitute part | 145TTFC6029 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
