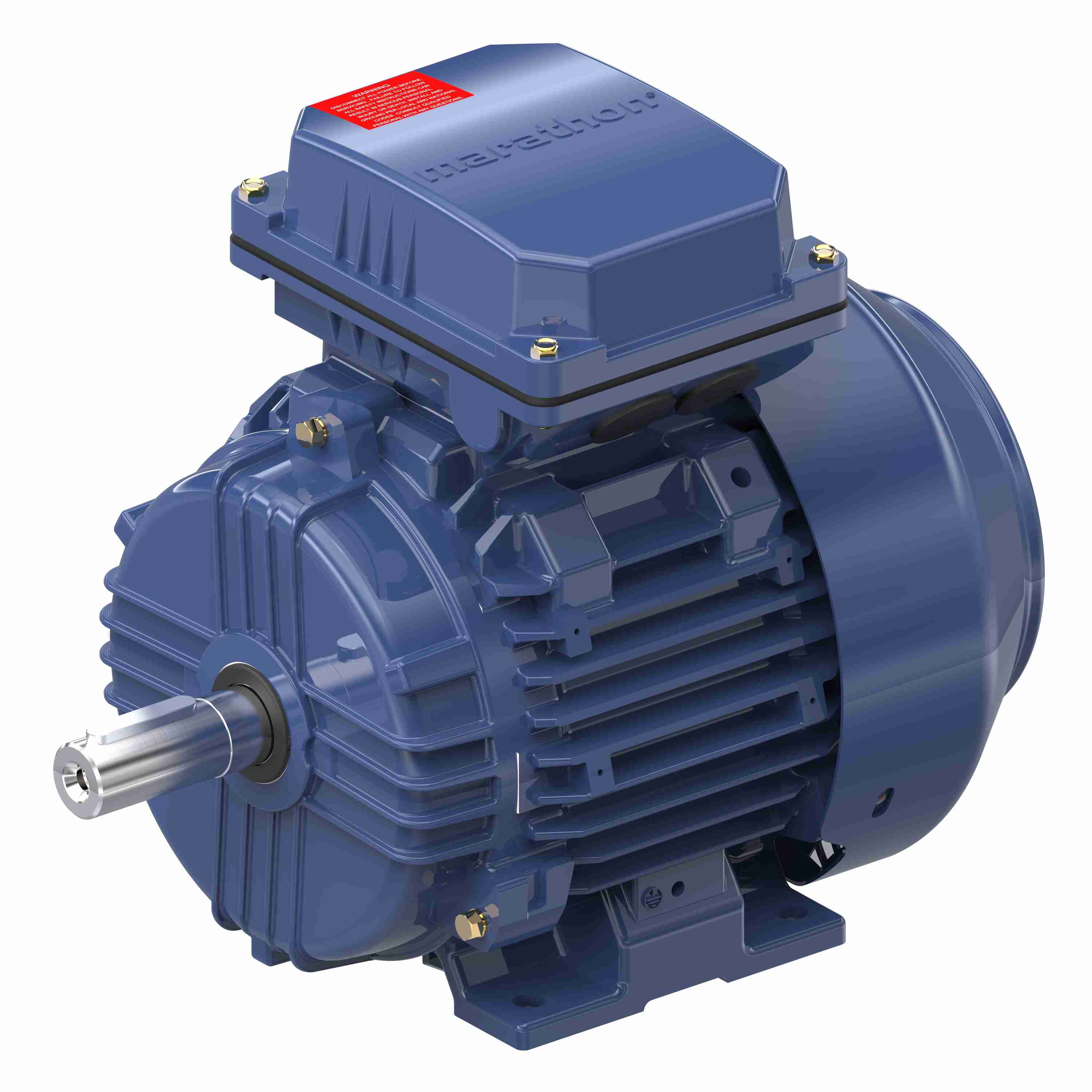

Marathon Electric Cast Iron Motor, 1 HP, 3 Ph, 60 Hz, 230/460 V, 1200 & 1200 RPM, 90S Frame, TEFC
Regular price
$787.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Cast Iron Motor, 1 HP, 3 Ph, 60 Hz, 230/460 V, 1200 & 1200 RPM, 90S Frame, TEFC
Features
- Meets IE3 European and NEMA premium efficiency standards
- 60/50 Hz interchangeability
- UL listed and CSA certified
- Wye Start-Delta Run as optional feature above 3kW
- 10:1 variable torque, 2:1 constant torque
- Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty
- IEC design “N” with NEMA “B” torques
- Meets IEC 34 electrical standards
- Meets IEC 72 dimensions and tolerances
- CE marked
Specifications
| Performance & Electrical | |
| Power | 1 HP |
| Power (dual rating) | 1 HP |
| Power | 0.75 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1148 RPM |
| Speed (dual) | 1148 RPM |
| Full-load current | 4.2/2.1 A |
| Current (dual) | 4.2/2.1 A |
| Nominal efficiency | 82.5% |
| Power factor | 68% |
| Service factor | 1.15 |
| Number of poles | 6 |
| Number of speeds | 1 |
| NEMA design | N (IEC) |
| KVA code | E |
| Duty | Continuous |
| Electrical type | Squirrel Cage Inverter Rated |
| Starting method | Line Or Inverter |
| Main winding resistance | 9.64 Ω |
| Frame & Mechanical | |
| Frame | 90S |
| Frame size | 90 |
| Frame suffix | S |
| Frame material | Cast Iron |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | B3 |
| Assembly / conduit box | F3 |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 24.000 in |
| Shaft type | IEC |
| Drive-end bearing | 6205 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | N |
| UL | Recognized |
| Connection drawing | 8442000729 |
| Outline drawing | SS600214 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 13.58 × 8.07 × 11.02 in |
| Weight | 44.00 lb |
| Identification | |
| Manufacturer part / model | TCAP753AE211GAA009 |
| Catalog number | R314B |
| UPC | 722856217714 |
| Country of origin | India |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
