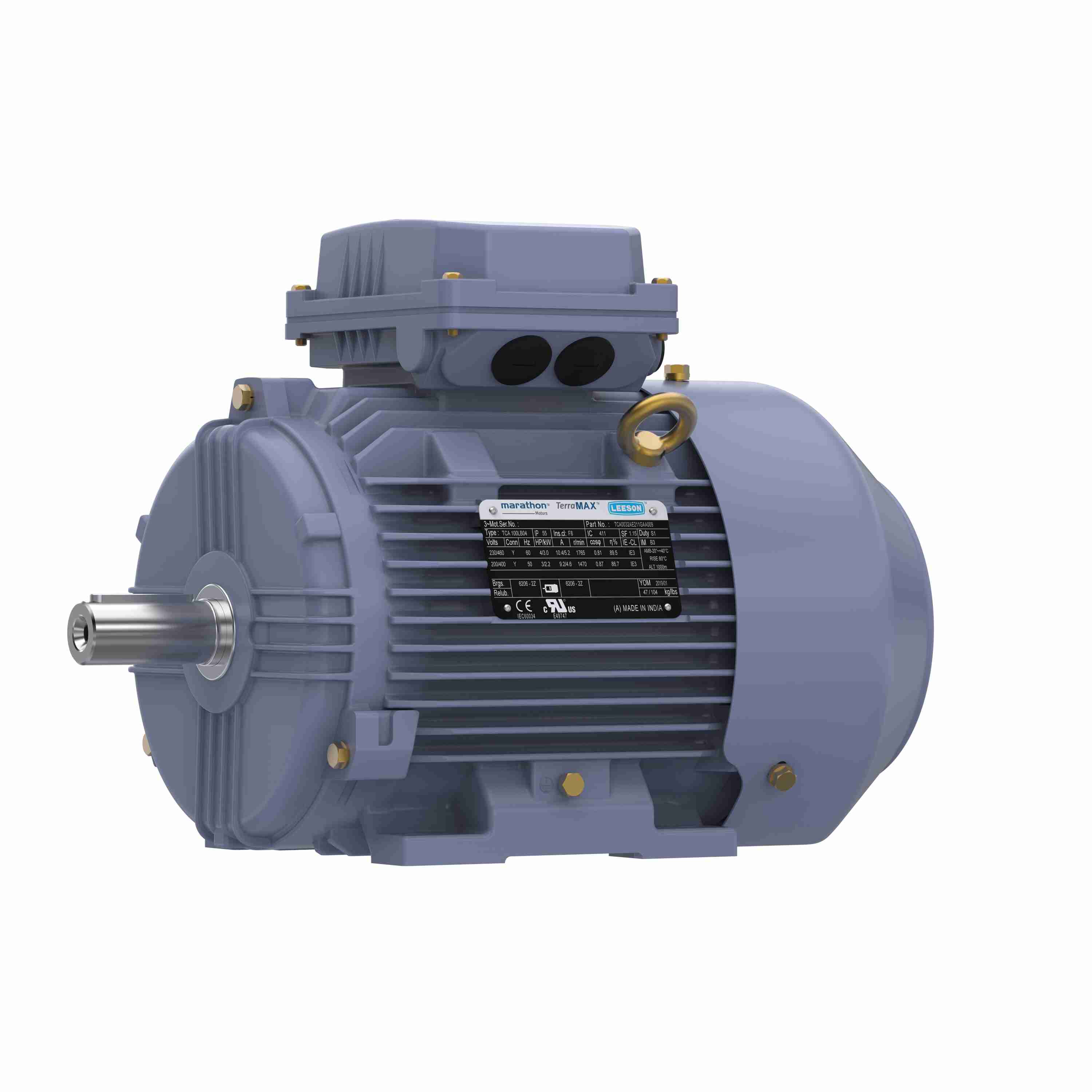

Marathon Electric TCA 200L 30kW 4P 230/460V 60Hz B35 IP55
Regular price
$6,943.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TCA 200L 30kW 4P 230/460V 60Hz B35 IP55
Features
- Meets IE3 European and NEMA Premium efficiencies
- Cast Iron frame construction
- Nameplated 60/50 Hz at next lower HP
- IP55 weatherproof enclosure
- Wye Start-Delta Run on 160 Frame and larger
- 10:1 Variable Torque, 10:1 Constant Torque speed range
- 1.15 Service Factor on 60 Hz sine wave, 1.0 SF or VFD
- Top Mounted/Oversized gasketed terminal box
- Meets IEEE45, IEC60092 & USCG CFR46 Marine Duty
- IEC Design "N" with NEMA "B" Torques
Specifications
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 890.00 × 560.00 × 795.00 mm |
| Weight | 688.00 lb |
| Identification | |
| Manufacturer part / model | TCA0302AE231GAA009 |
| Catalog number | R846 |
| UPC | 722856176172 |
| Product line | TerraMAX® |
| Country of origin | India |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
