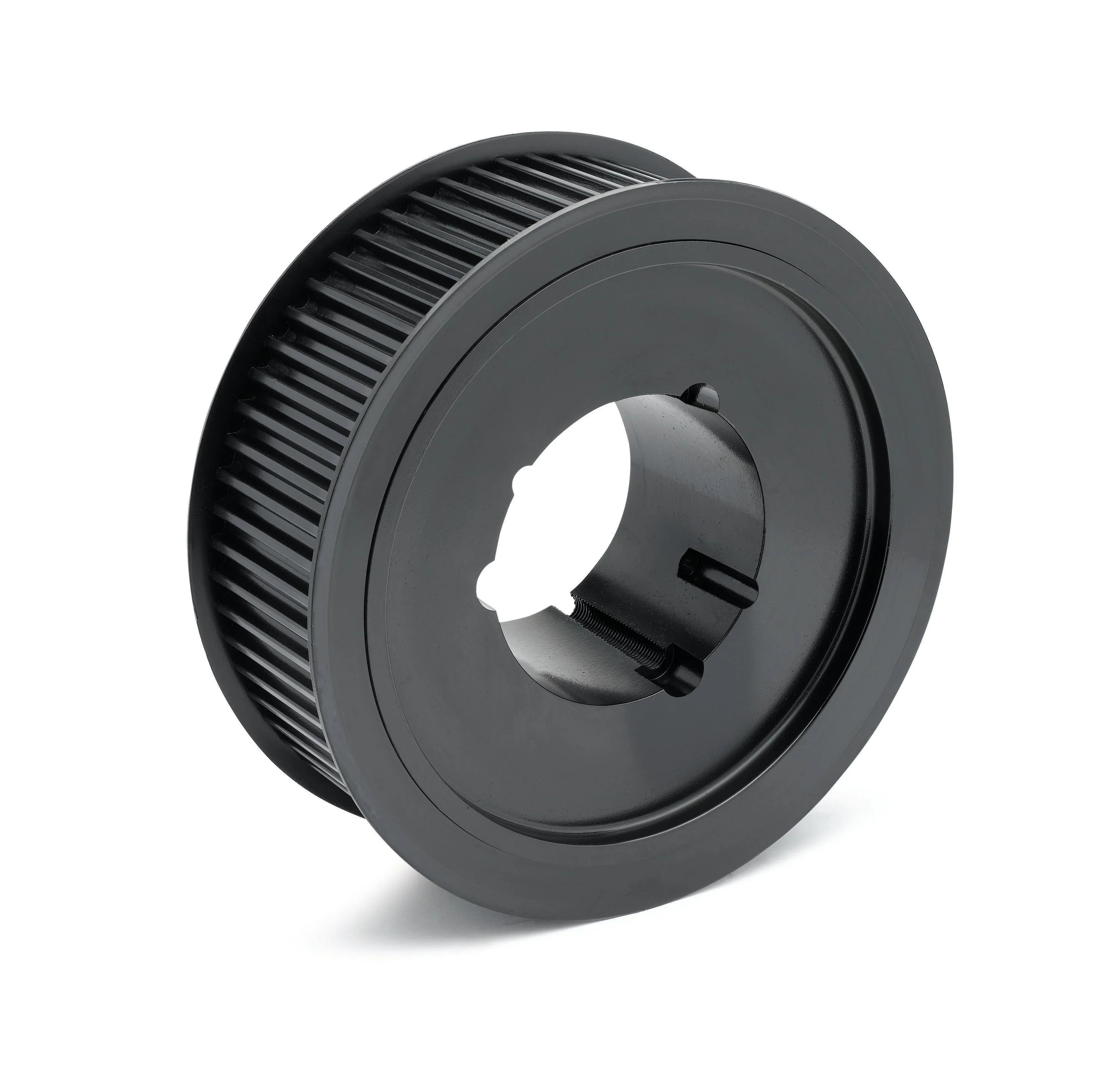

114522 - Dodge - P44-14M-115-3535 HT250 SPKT

Dodge Belt Sprocket, Flanged Solid Type A, Taper-Lock Bore Type, 1-3/16 to 3-15/16 in Bore Dia, 7.61 in Outside Dia, 7.72 in, 14 mm Pitch, 5-1/4 in Face Width, 8.395 in Flange Dia, 0.88 in Hub Projection, 3535 Bushing, 5-1/4 in Overall Length, For Use With: 115 mm W HT200 Belt Torque rated shaft gripping strength to meet the higher demands of the 200% rating of HT200 beltsCompact save shaft space with compact taper lock designReduce overhung load compact design allows closer mounting to motor or reducer bearings, improves bearing life, reduces maintenance costsImproves bearing lifeReduces maintenance costs
