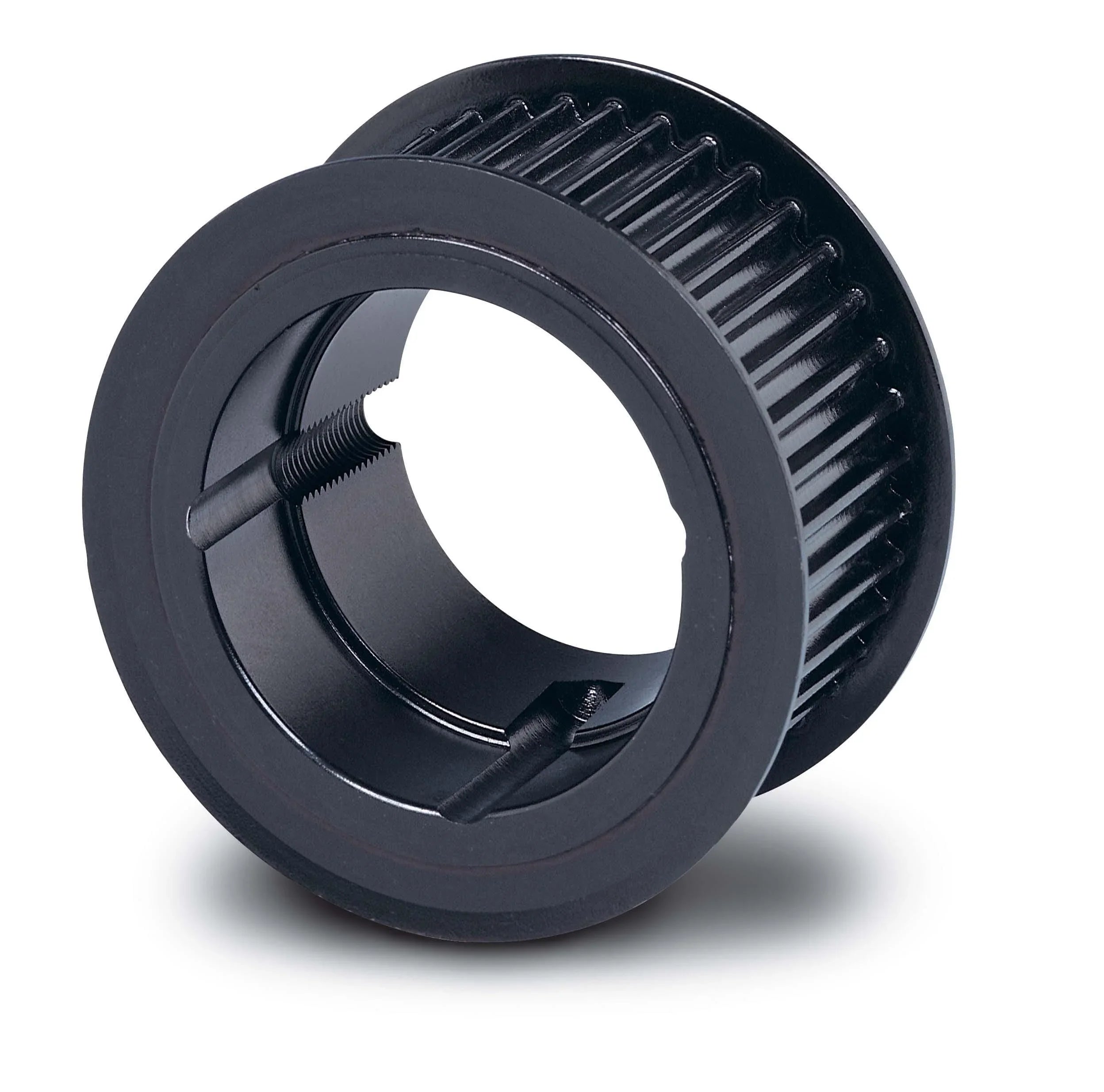

114519 - Dodge - P36-14M-115-3020 HT250 SPKT

Dodge Belt Sprocket, Flanged Solid Type A, Taper-Lock Bore Type, 7/8 to 3-1/4 in Bore Dia, 6.206 in Outside Dia, 6.316 in, 14 mm Pitch, 5-1/4 in Face Width, 6.816 in Flange Dia, 1.63 in Hub Projection, 3020 Bushing, 5-1/4 in Overall Length, For Use With: 115 mm W HT200 Belt Torque rated shaft gripping strength to meet the higher demands of the 200% rating of HT200 beltsCompact save shaft space with compact taper lock designReduce overhung load compact design allows closer mounting to motor or reducer bearings, improves bearing life, reduces maintenance costsImproves bearing lifeReduces maintenance costs
