SS26A07H56 - Dodge - STAINLESS STEEL TIGEAR-2 REDUCER
Regular price
$4,005.63 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

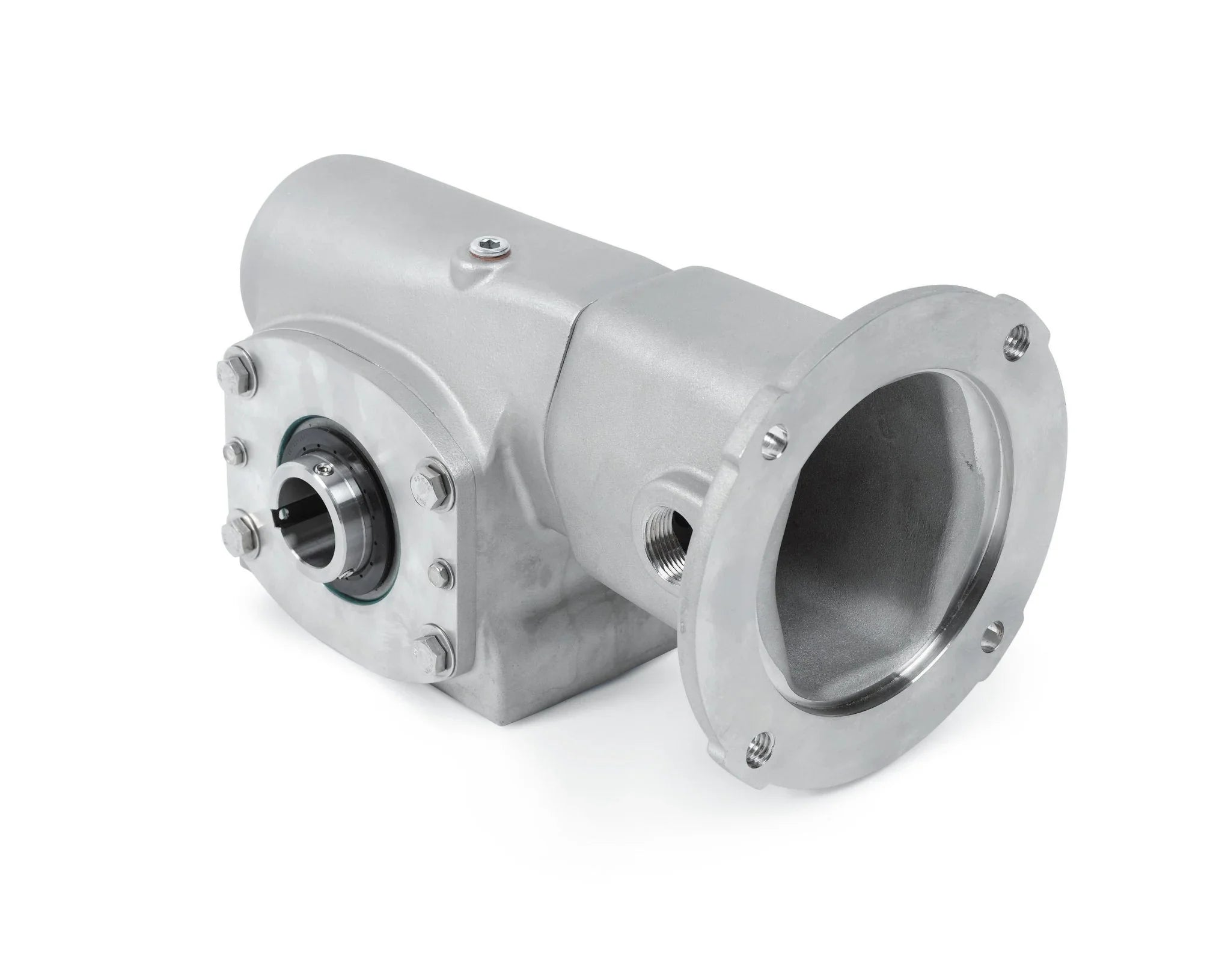

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
STAINLESS STEEL TIGEAR-2 REDUCER
| Specifications | |
|---|---|
| Base to Output Center Height | 2.87 in |
| Bore Diameter (Output) | 1.4375 in |
| Bore Length | 6.62 in |
| Bushing Required | Optional |
| Case Size | 26 |
| Center Distance | 2.63 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 6.98 HP |
| Horsepower Rating Output | 6.45 HP |
| Housing Material | Stainless Steel |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Motor Connection | 3-Piece Coupled |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 0.38 in |
| Mounting Bolt Pattern Width | 6.38 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 8.63 in |
| Output Style | Hollow |
| Overhung Load | 1520 lbf |
| Rated Torque Output | 1742 in-lb |
| Seal Type | Two-Piece Harsh Duty |
| Suitable For Washdown | Yes |
| Thermal Horsepower Rating | 11.15 HP |
| Actual Ratio | 7.5 |
| Nominal Ratio | 7 |
