SS20Q15H56LT - Dodge - TG2 STAINLESS STEEL W/ LOW TEMP LUBE
Regular price
$2,555.33 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

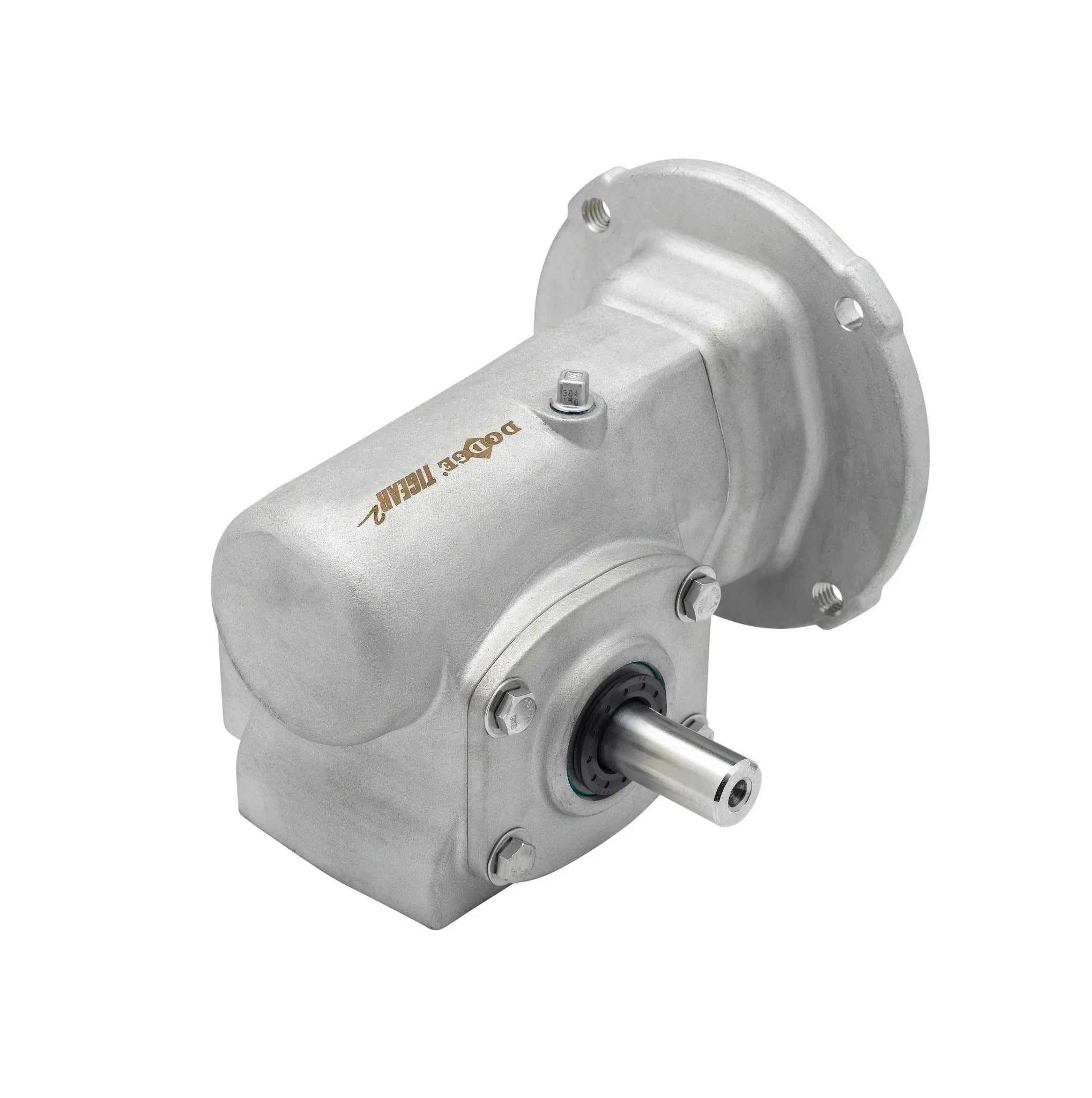

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TG2 STAINLESS STEEL W/ LOW TEMP LUBE
| Specifications | |
|---|---|
| Base to Output Center Height | 2.24 in |
| Bore Diameter (Output) | 1.25 in |
| Bore Length | 5.7 in |
| Bushing Required | Optional |
| Case Size | 20 |
| Center Distance | 2 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 2.3 HP |
| Horsepower Rating Output | 1.99 HP |
| Housing Material | Stainless Steel |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Low Temperature |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Motor Connection | Quill |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 5 in |
| Mounting Bolt Pattern Width | 2.88 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 5 in |
| Output Style | Hollow Bore |
| Overhung Load | 1560 lbf |
| Rated Torque Output | 1074 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | Yes |
| Thermal Horsepower Rating | 4.37 HP |
| Actual Ratio | 15 |
| Nominal Ratio | 15 |
