13S50H TIGEAR-2 REDUCER - Dodge
Regular price
$882.67 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

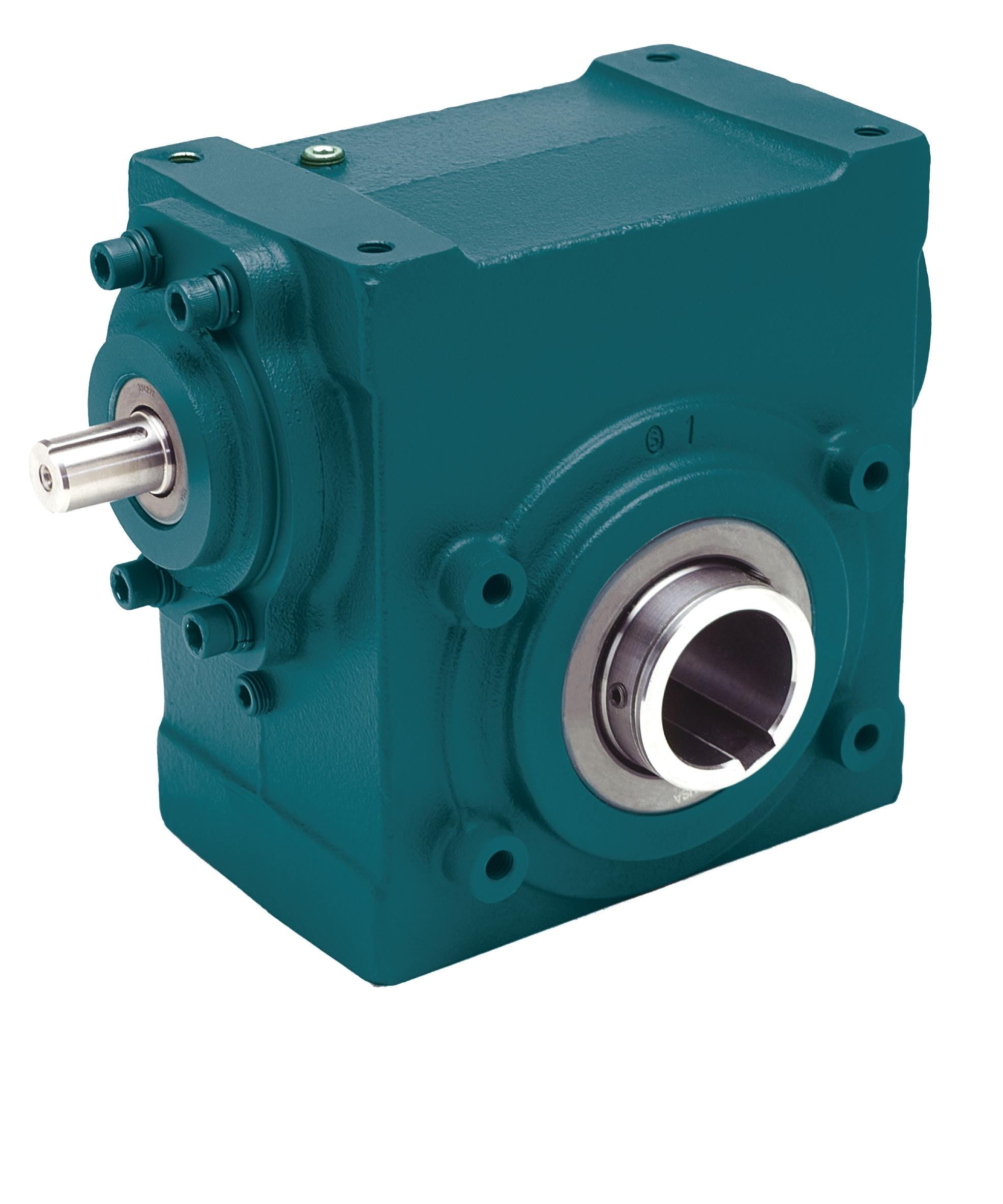

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
13S50H TIGEAR-2 REDUCER
| Specifications | |
|---|---|
| Base to Output Center Height | 1.71 in |
| Bore Diameter (Output) | 0.75 in |
| Bore Length | 4.74 in |
| Bushing Required | Optional |
| Case Size | 13 |
| Center Distance | 1.33 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 0.36 HP |
| Horsepower Rating Output | 0.23 HP |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 0.5 in |
| Input Shaft Length | 1.22 in |
| Lubrication | PAG, Standard Temperature |
| Mounting Bolt Pattern Length | 3.25 in |
| Mounting Bolt Pattern Width | 2 in |
| Output Orientation | Right-Angle |
| Output Style | Hollow |
| Overhung Load | 650 lbf |
| Paint Type | Standard |
| Rated Torque Output | 408 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 1.74 HP |
| Actual Ratio | 50 |
| Nominal Ratio | 50 |
