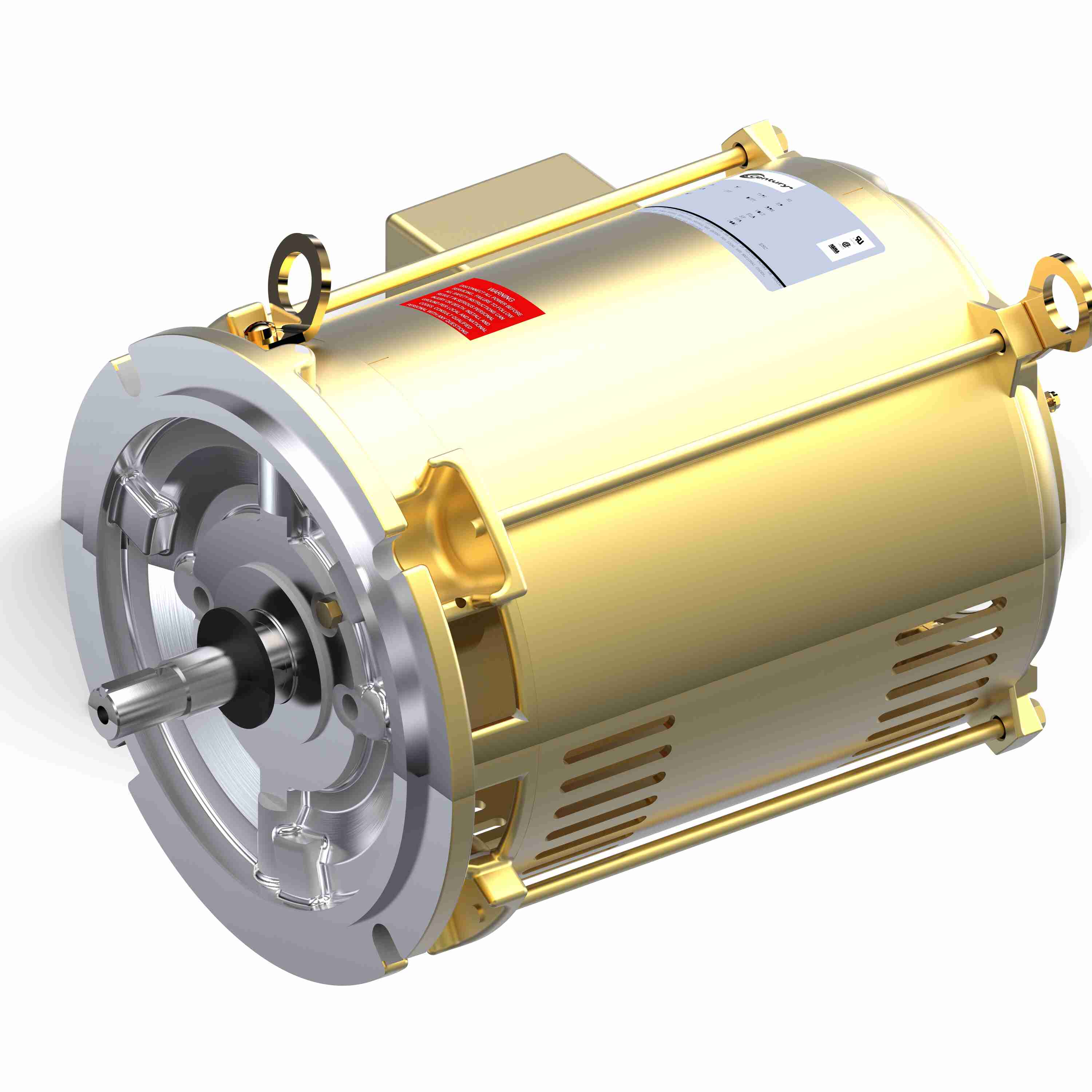

Marathon Electric Pool Pump Motor, 15 HP, 3 Ph, 50 Hz, 220/440 V, 3000 RPM, 215TDZ Frame, DP
Regular price
$2,023.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Pool Pump Motor, 15 HP, 3 Ph, 50 Hz, 220/440 V, 3000 RPM, 215TDZ Frame, DP
Features
- 40°C Ambient
- Reversible
- External Slinger
- Purex Hydrotech East Side "L" Series and "C" Series Commercial Pump
- Sealed Ball Bearings
- Keyed Shaft
- Purex Replacement
Specifications
| Performance & Electrical | |
| Power | 15 HP |
| Power (dual rating) | 15 HP |
| Power | 11.2 kW |
| Voltage | 220/440 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed (max) | 3525 RPM |
| Speed (dual) | 3525 RPM |
| Current (dual) | 38/19 A |
| Nominal efficiency | 91% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Across The Line |
| Frame & Mechanical | |
| Frame | 215TDZ |
| Frame size | 215 |
| Frame suffix | TDZ |
| Frame material | Rolled Steel |
| Frame length | 11.15 in |
| Enclosure | Drip Proof |
| Insulation class | F |
| Mounting | Special/Non-Standard |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.000 in |
| Shaft extension | 3 in |
| Shaft type | 7/8 Keyed |
| C dimension | 18.66 in |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 005010.01 |
| Outline drawing | OLR339M2A |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.19 × 16.50 × 14.00 in |
| Weight | 127.00 lb |
| Identification | |
| Manufacturer part / model | R339M2A |
| Catalog number | R339M2A |
| UPC | 786674074263 |
| Country of origin | Mexico |
| HTS / tariff code | 8501.52.4000 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
