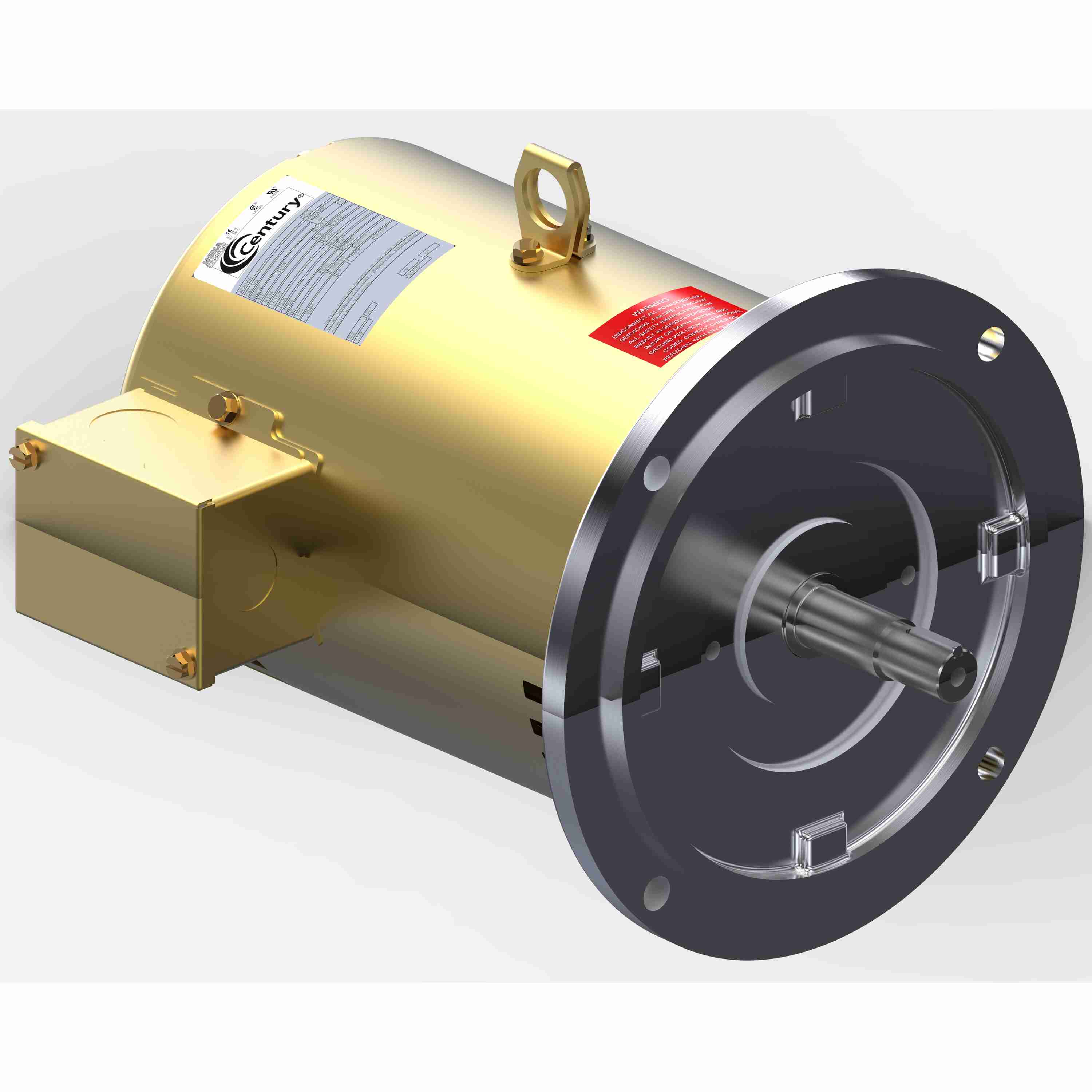

Marathon Electric Pool Pump Motor, 7 1/2 HP, 3 Ph, 50 Hz, 220/440 V, 184TDZ Frame, DP
Regular price
$2,124.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Pool Pump Motor, 7 1/2 HP, 3 Ph, 50 Hz, 220/440 V, 184TDZ Frame, DP
Features
- Well-suited for Commercial and Large Residential Pools
- Open Dripproof, Premium Efficient Designs, Reversible
- Round Body/Footless, Special JMZ Shaft Configuration
- 40°C Ambient
- Sealed Ball Bearings
- keyed, 304 Stainless Steel Shaft Extension, with external shaft slinger
- Purex Hydrotech East Side "L" Series and "C" Series Commercial Pump
- Purex Replacement
Specifications
| Performance & Electrical | |
| Power | 7.50 HP |
| Power (dual rating) | 7 1/2 HP |
| Power | 5.6 kW |
| Voltage | 220/440 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed (max) | 3490 RPM |
| Speed (dual) | 3490 RPM |
| Current (dual) | 18.6/9.3 A |
| Nominal efficiency | 88.5% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| Duty | Continuous |
| Frame & Mechanical | |
| Frame | 184TDZ |
| Frame size | 184TDZ |
| Frame material | Rolled Steel |
| Frame length | 8.26 in |
| Enclosure | Drip Proof |
| Insulation class | F |
| Mounting | Special/Non-Standard |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.000 in |
| Shaft extension | 2.75 in |
| Shaft type | Single Special Extension |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308 |
| Outline drawing | SS600253 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 18.00 × 18.00 in |
| Weight | 40.00 lb |
| Identification | |
| Manufacturer part / model | R232M2B |
| Catalog number | R232M2B |
| UPC | 786674077257 |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
