PV-PXT-72-CCMK
Regular price
$6,924.38 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

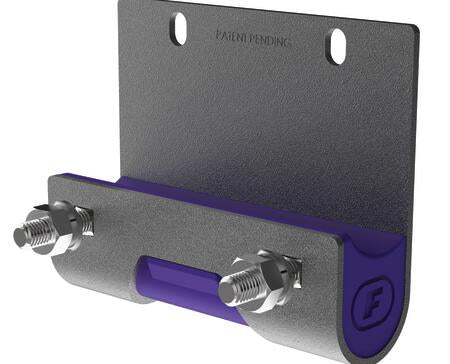

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Specifications
| Attribute | Value |
|---|---|
| Belt Width (in.) | 72 |
| Belt Width (mm) | 1800 |
| Horizontal Clearance Required (in.) | 5 |
| Horizontal Clearance Required (mm) | 100 |
| Maximum Belt Speed (FPM) | 1000 |
| Maximum Belt Speed (M/sec) | 5 |
| Maximum Conveyor Span (in.) | 101 |
| Maximum Conveyor Span (mm) | 2525 |
| Pole Diameter (in.) | 2 3/8 |
| Pole Diameter (mm) | 60 |
| Pole Length (in.) | 106 |
| Pole Length (mm) | 2650 |
| Temperature Range (C) | -35° to 82° |
| Temperature Range (F) | -30° to 180° |
| Vertical Clearance Required (in.) | 8 |
| Vertical Clearance Required (mm) | 200 |
| Weight (kg) | 63.5 |
| Weight (lbs) | 139.9 |
| Blade Material | Tungsten Carbide V-Tips (for vulcanized belts only) |
| Usable Blade Wear Length (in.) | 3/8 |
| Usable Blade Wear Length (mm) | 9 |
| Blade Configuration | Segmented |
| Blades Required | 12 |
| Tensioner | Bolt-up Tensioner |
| CEMA Rating | Class 4 |
| Cleaner Material | Mild Steel Powdercoat |
