230065 - Dodge - P4B-BAA-307
Regular price
$1,203.55 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

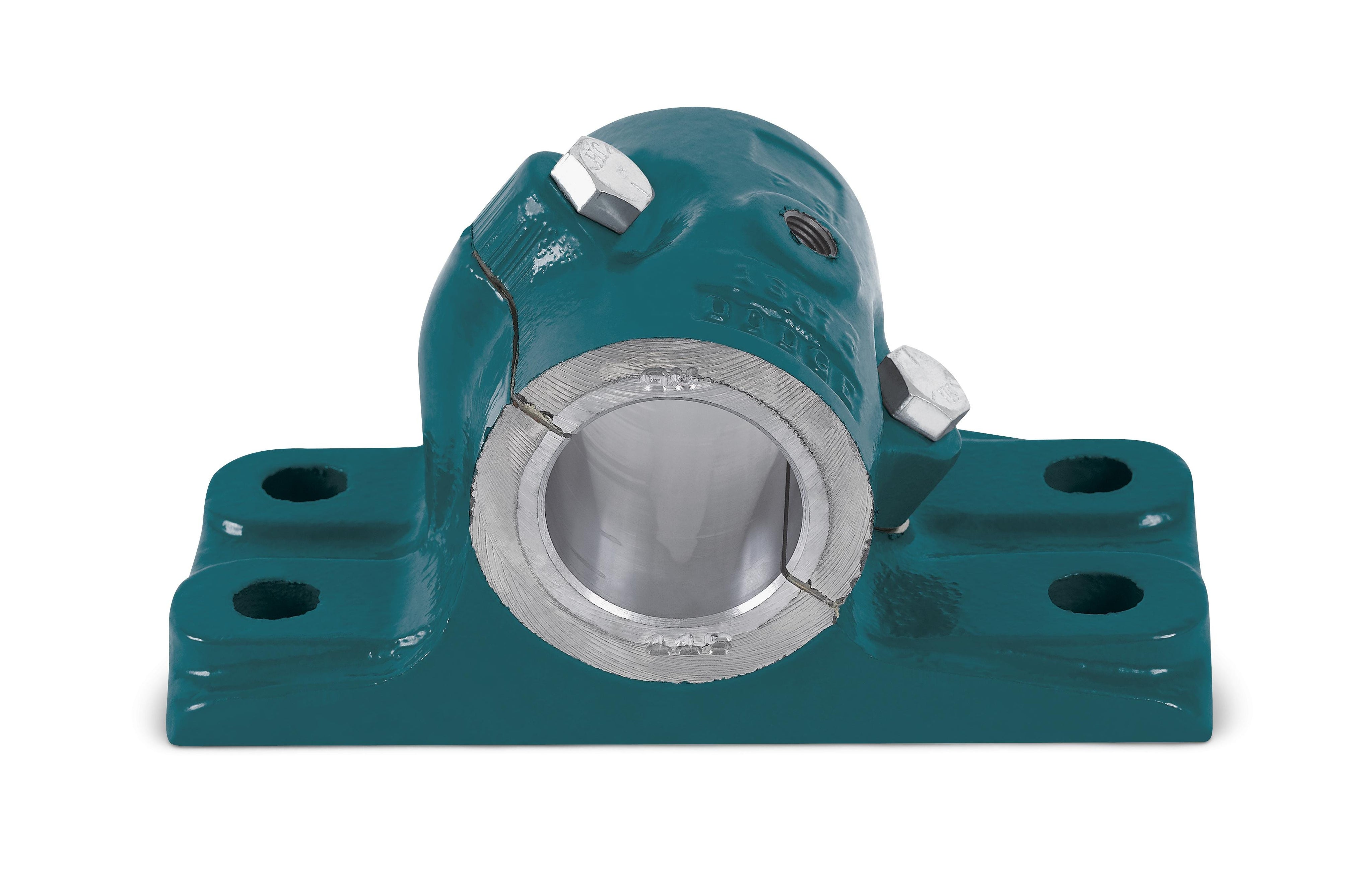

230065 - Dodge - P4B-BAA-307
P4B-BAA-307
Technical Specifications
| Base to Center Height | 3.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Journal |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 10.8750 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 10.1250 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 7.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/babbitted/p4b_baa_bodi.prj&varset={SS=3-7/16},{PN=230065},{DESCRIPTION=P4B-BAA-307},{WT=47},{A=7},{B=13},{C=5},{DMIN=10-1/16},{DMAX=10-15/16},{E=2-3/4},{F=3/4},{G=1-1/4},{H=1-1/2},{J=7-1/8},{M=3-1/2},{PT=1/2},{NR=1},{S=3},{HELP=2}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Tin Babbitt |
| Lubrication | Grease |
| Shaft Diameter | 3.4375 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-300 |
