230053 - Dodge - P4B-BAA-203
Regular price
$634.04 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

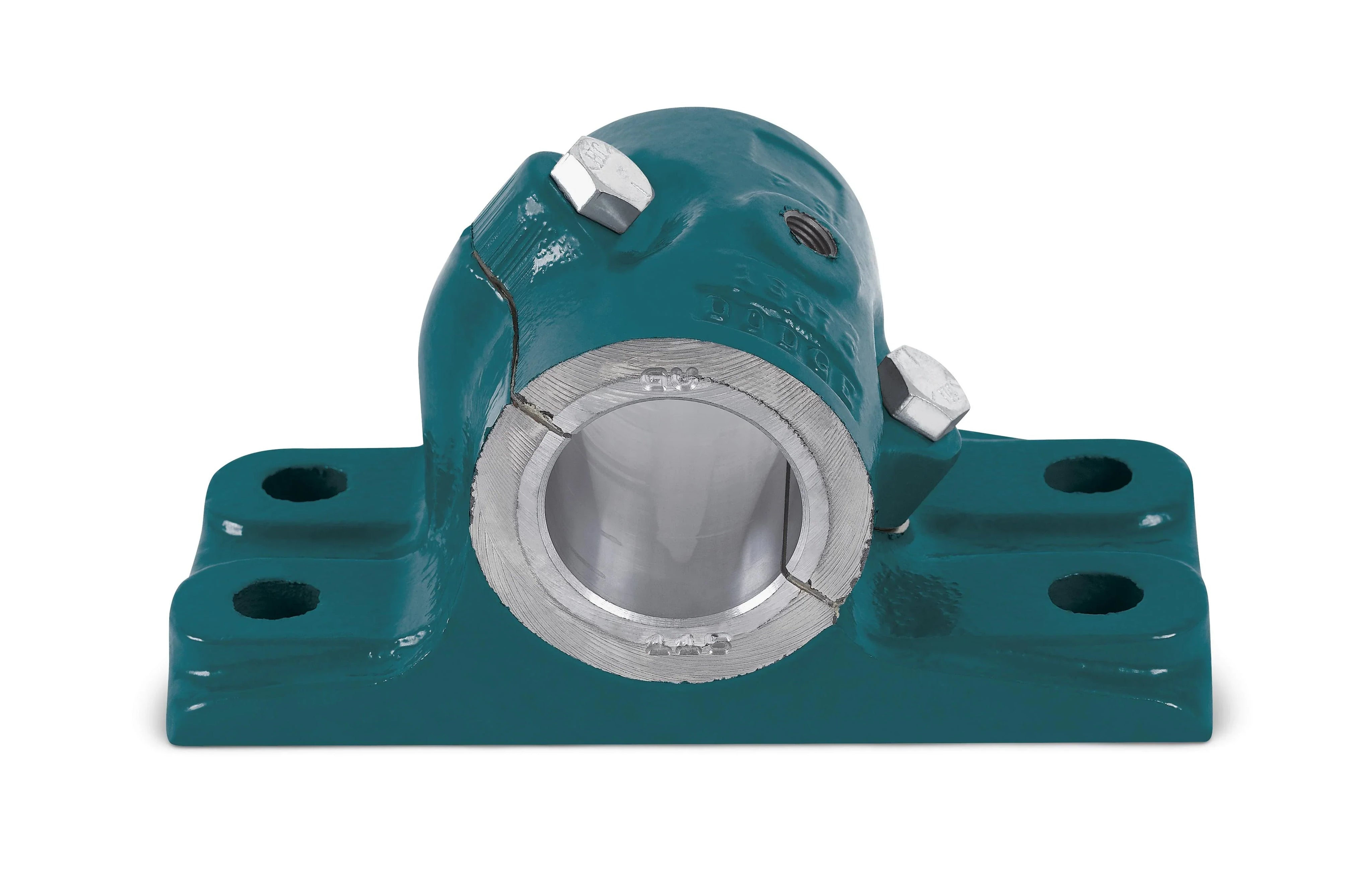

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
230053 - Dodge - P4B-BAA-203
P4B-BAA-203
Technical Specifications
| Base to Center Height | 1.8750 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Journal |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.8750 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.6250 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 1.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 4.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/babbitted/p4b_baa_bodi.prj&varset={SS=2-3/16},{PN=230053},{DESCRIPTION=P4B-BAA-203},{WT=14},{A=4-1/2},{B=8-1/2},{C=3-1/2},{DMIN=6-9/16},{DMAX=6-15/16},{E=1-3/4},{F=1/2},{G=3/4},{H=1},{J=5-1/8},{M=2-1/2},{PT=3/8},{NR=1},{S=2},{HELP=2}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Tin Babbitt |
| Lubrication | Grease |
| Shaft Diameter | 2.1875 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-200 |
