Nachi R6ZZMC3 - Miniature Deep Groove Ball Bearing, 0.375 (9.525)x0.875 (22.225)x0.2188 (5.558)mm
Regular price
$35.07 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

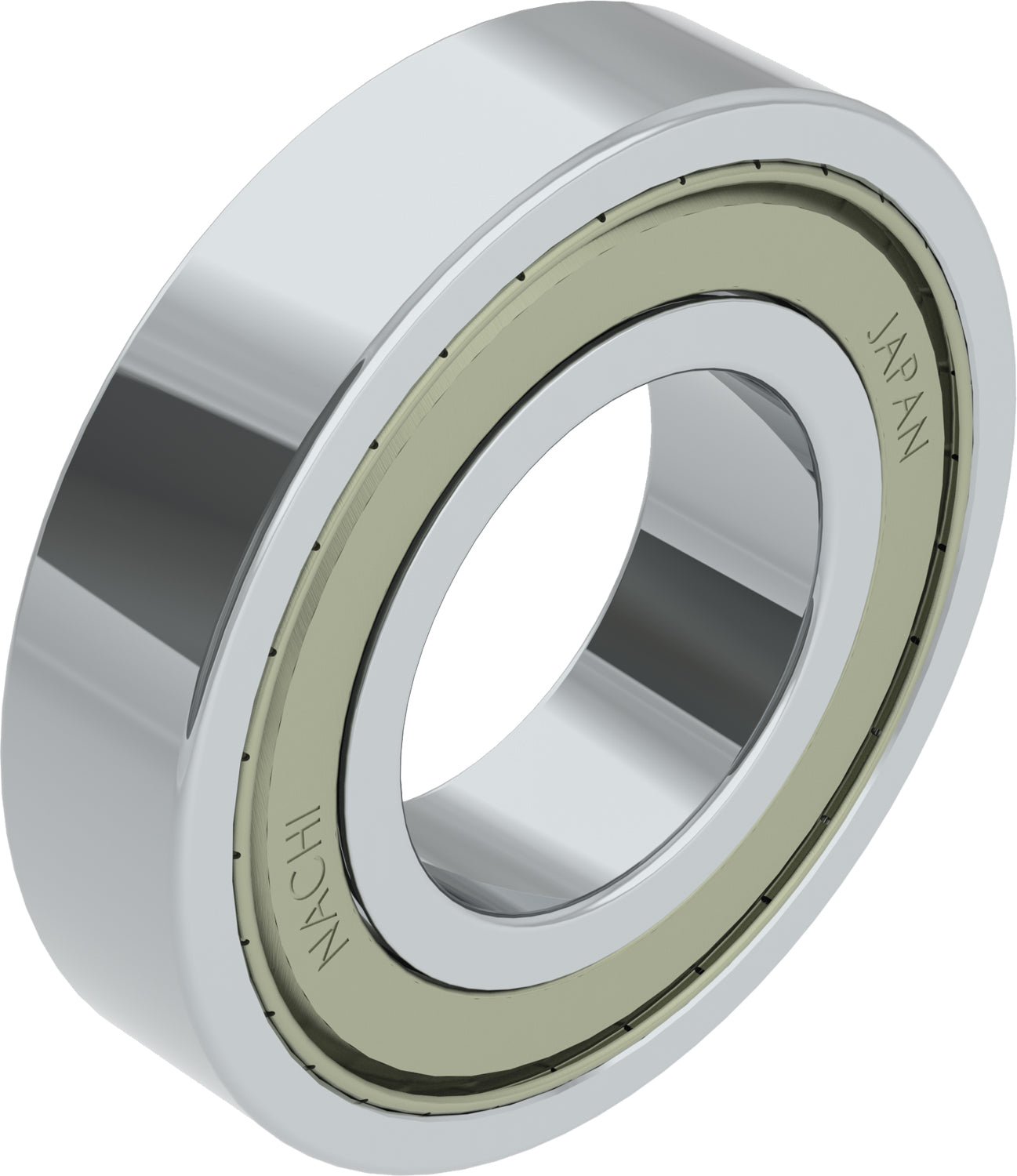

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
| Specifications | |
|---|---|
| Manufacturer Part Number | R6ZZMC3 |
| Nachi Package Code | R6ZZMC3MTSRLEZO |
| Brand | Nachi |
| Bearing Type | Miniature Deep Groove Ball Bearing |
| Product Series | R-SERIES BEARING |
| Inner Diameter (Bore) | 0.375 (9.525) mm |
| Outer Diameter | 0.875 (22.225) mm |
| Width | 0.2188 (5.558) mm |
| Bore Type | Cylindrical |
| Dynamic Load Capacity | 3332 N |
| Static Load Capacity | 1411 N |
| Limiting Speed - Grease | 32000 RPM |
| Limiting Speed - Oil | 38000 RPM |
| Internal Clearance | MC3 |
| Seals or Shields | 2 Shields |
| Snap Ring | No |
| Grease Fill | Kyodo Yushi Multemp SRL |
| ISO Precision Class | P0 |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | JIS SPCC Steel |
| Weight | 0.02579408 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.10.50.44 |
| Country of Origin | Japan |
