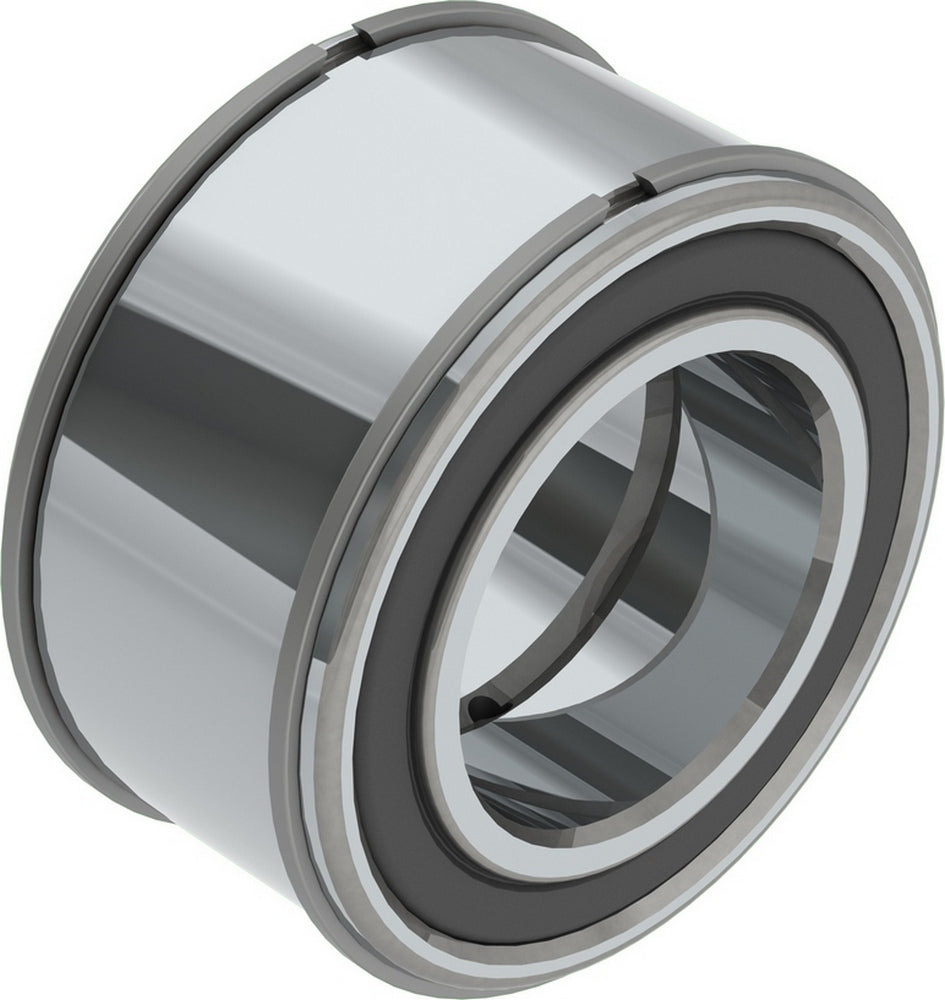

Nachi E5014XNNTS1 - Double Row Cylindrical Roller Sheave Bearing, 70x110x54mm
Regular price
$3,797.93 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
This bearing type is designed as a double row, full complement Cylindrical Roller bearing with ribs on both inner and outer rings. These bearings will sustain heavy radial load, and will handle moment load and will also take some axial load. Sheave bearings are suitable for a wide variety of uses in addition to sheaves. They are used for hoisting drum and wheel applications, and other applications which operate under heavy load at low speed.
| Specifications | |
|---|---|
| Manufacturer Part Number | E5014XNNTS1 |
| Nachi Package Code | E5014XNNTS1BNLS |
| UPC / EAN | 4991893331073 |
| Brand | Nachi |
| Bearing Type | Double Row Cylindrical Roller Sheave Bearing |
| Product Series | SHEAVE BEARINGS |
| Inner Diameter (Bore) | 70 mm |
| Outer Diameter | 110 mm |
| Width | 54 mm |
| Bore Type | Cylindrical |
| Dynamic Load Capacity | 170000 N |
| Static Load Capacity | 285000 N |
| Limiting Speed - Grease | 1400 RPM |
| Internal Clearance | CN/C0 |
| Seals or Shields | 2 NBR Contact Seals |
| Snap Ring | Yes |
| Grease Fill | Mobilux EP2 |
| ISO Precision Class | P0 |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | JIS SPCC Steel |
| Weight | 4.18 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.50.00.00 |
| Country of Origin | Japan |
Easy to locate axially by using snap rings on both sides of the outer ring. Center groove and holes on the inner ring allow for easy relubrication.
