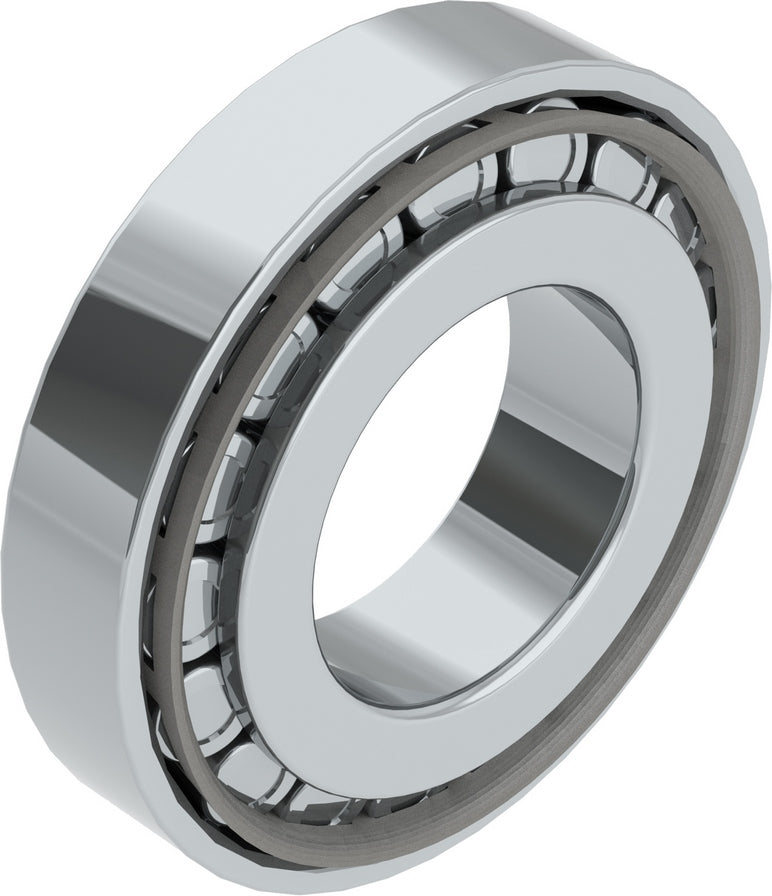

Nachi E30308J - Tapered Roller Bearing, 40x90x25.25mm
Regular price
$235.55 USD
Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Tapered Roller Bearings are best at handling heavy combined (radial & axial) loading at a medium to low rotating speed. They're comprised of a seperable Cup & Cone which allows preload to be adjustable to the user's preference. Bearings designated as E ...... J (E prefix and J suffix) comply with ISO standards in subunit dimensions. The cups and cones of these bearings are internationally interchangeable. NACHI manufactures Tapered Roller Bearings in both Metric and Inch sizing.
| Specifications | |
|---|---|
| Manufacturer Part Number | E30308J |
| Nachi Package Code | E30308JBNLS |
| UPC / EAN | 4991893559842 |
| Brand | Nachi |
| Bearing Type | Tapered Roller Bearing |
| Product Series | E30300 SERIES METRIC TAPER ROLLER BEARING |
| Inner Diameter (Bore) | 40 mm |
| Outer Diameter | 90 mm |
| Width | 25.25 mm |
| Bore Type | Cylindrical |
| Dynamic Load Capacity | 90600 N |
| Static Load Capacity | 101000 N |
| Limiting Speed - Grease | 4500 RPM |
| Limiting Speed - Oil | 6100 RPM |
| Seals or Shields | No |
| Grease Fill | No Fill |
| ISO Precision Class | P0 |
| Max Operating Temp. | 120°C (248°F) |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
| Cage Material | JIS SPCC Steel |
| Weight | 1.67 lb |
| Unit of Measure | EA |
| Estimated Lead Time | 2 Days |
| Harmonized Tariff Code | 8482.20.00 |
| Country of Origin | Japan |
Metric - available only as a complete set with Cup & Cone -
Part Number Designations
- (E…J) = Interchangeable with ISO standard Cups & Cones
